GE0201ET4 - 4P CHANGEOVER SWITCH

Why Choose the GE0201ET4?

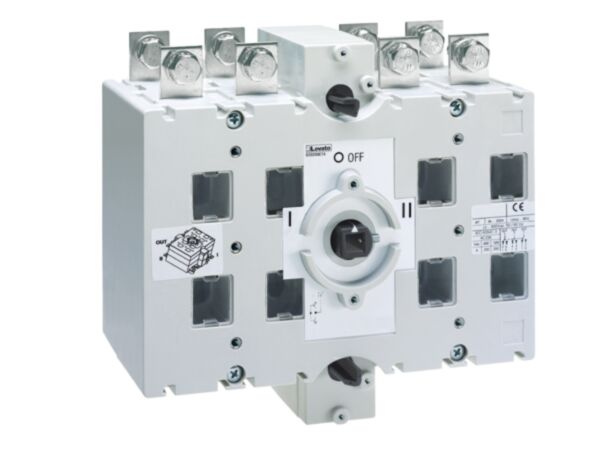

The Lovato GE0201ET4 is a robust four-pole changeover switch for reliable source selection in industrial panels. With an IEC Ith of 200 A and AC operation, this GE series device offers Ui 1000 V and Uimp 8 kV for strong insulation performance. It mounts by screw on plate and provides IP20 frontal protection, supporting safe handling during operation and maintenance. It conforms to IEC/EN 60947-1 and 60947-3.

Engineered for endurance, the GE0201ET4 delivers up to 200 A in AC21A and AC22A duties, and 160 A in AC23A at 400 V. Mechanical life reaches 10,000 cycles, with a conditional short-circuit rating of 100 kA when protected by a gG200 fuse. Rated operational power is 100 kW at AC23A 400 V. Terminals accept up to 24 Nm tightening torque, and the unit operates from -25 to 55 °C up to 3000 m altitude.

Key Benefits

• Four-pole design enables comprehensive changeover and isolation across phases.
• 200 A Ith supports high-current AC applications with confidence.
• Ui 1000 V and Uimp 8 kV strengthen insulation performance.
• AC21A/AC22A/AC23A ratings suit resistive, mixed, and motor loads.
• IP20 frontal protection enhances safety during panel operation.
• Mechanical life of 10,000 cycles ensures reliable service.
• Screw-on-plate mounting simplifies installation in control panels.

Technical Specification

• Product type designation: GE
• Number of poles: 4
• Operating voltage type: AC
• Ith (IEC): 200 A
• Rated insulation voltage Ui (IEC/EN): 1000 V
• Rated impulse withstand voltage Uimp: 8 kV
• Operating current Ie AC21A 400 V: 200 A
• Operating current Ie AC21A 500 V: 200 A
• Operating current Ie AC21A 690 V: 200 A
• Operating current Ie AC22A 400 V: 200 A
• Operating current Ie AC22A 500 V: 200 A
• Operating current Ie AC22A 690 V: 160 A
• Operating current Ie AC23A 400 V: 160 A
• Operating current Ie AC23A 500 V: 125 A
• Power dissipation per pole (max): 8 W
• Rated operational power AC23A 400 V: 100 kW
• Rated operational power AC23A 690 V: 69 kW
• Conditional short-circuit current (rms): 100 kA
• Short-circuit protection fuse: gG200
• Making capacity AC23A 400 V: 3150 A
• Mechanical life: 10000 cycles
• Terminal tightening torque (max): 24 Nm
• Operating temperature: -25 to 55 °C
• Storage temperature: -40 to 70 °C
• Max altitude: 3000 m
• IP degree (frontal): IP20
• Pollution degree: 3

What’s Included

• GE0201ET4 four-pole changeover switch
• Manufacturer documentation and datasheet (download)
• Mounting instructions

Applications

• Mains-to-generator changeover in industrial and commercial panels
• Source selection and isolation in switchboards and distribution boards
• Switching mixed or motor loads within AC21A to AC23A duties
• Control panel integration where screw-on-plate mounting is required

Safety note: Installation and servicing must be performed by qualified personnel. Isolate all power before work, apply the specified gG200 fuse, observe IP20 and pollution degree 3 limits, and tighten terminals to a maximum of 24 Nm.
