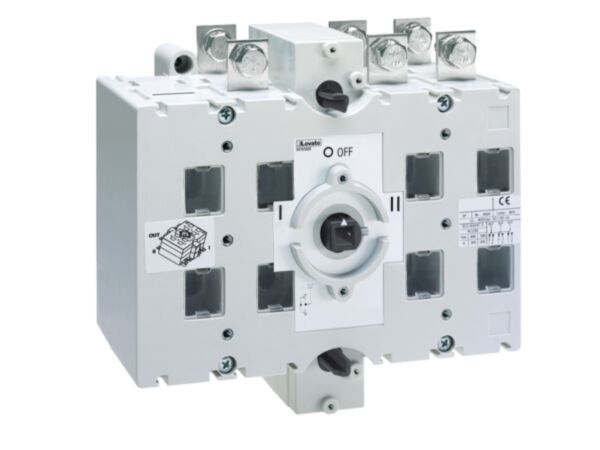

GE0201E - 3P CHANGEOVER SWITCH

Why Choose the GE0201E?

Engineered for dependable source transfer, the Lovato GE0201E is a three-pole changeover switch rated Ith 200 A for AC systems. Part of the GE series, it enables secure switching and isolation in control panels. Designed for screw-on plate installation, it supports AC21A, AC22A and AC23A utilisation categories, giving installers a versatile, standards-compliant solution for heavy-duty load changeover.

Built to perform in demanding environments, it delivers Ui 1000 V and Uimp 8 kV, with conditional short-circuit current up to 100 kA when protected by gG200 fuses. The IP20 frontal degree enhances operator safety, while terminals accept up to 24 Nm tightening torque. Rated operational currents include AC23A 160 A at 400 V and 125 A at 500 V, with 10,000 mechanical life cycles, -25 to 55 °C operation and use up to 3000 m altitude.

Key Benefits

• 200 A Ith rating supports demanding AC changeover applications.
• Three-pole configuration suits multi-phase circuits and balanced loads.
• Broad utilisation range: AC21A, AC22A and AC23A categories covered.
• High insulation performance with Ui 1000 V and Uimp 8 kV.
• IP20 frontal protection enhances safety during panel access.
• Long mechanical life of 10,000 cycles for reliability.
• Simple screw-on plate mounting reduces installation time.
• Compatible gG200 fuse for 100 kA conditional short-circuit current.

Technical Specification

• Product type designation: GE
• Number of poles: 3
• Operating voltage type: AC
• Ith (IEC): 200 A
• Rated insulation voltage Ui (IEC/EN): 1000 V
• Rated impulse withstand voltage Uimp: 8 kV
• Operating current Ie AC21A 400 V: 200 A
• Operating current Ie AC21A 500 V: 200 A
• Operating current Ie AC21A 690 V: 200 A
• Operating current Ie AC22A 400 V: 200 A
• Operating current Ie AC22A 500 V: 200 A
• Operating current Ie AC22A 690 V: 160 A
• Operating current Ie AC23A 400 V: 160 A
• Operating current Ie AC23A 500 V: 125 A
• Power dissipation per pole (max): 8 W
• Rated operational power AC23A 400 V: 100 kW
• Rated operational power AC23A 690 V: 69 kW
• Conditional short-circuit current (rms): 100 kA
• Short-circuit protection fuse: gG200
• Making capacity AC23A 400 V: 3150 A
• Mechanical life: 10000 cycles
• Terminal tightening torque (max): 24 Nm
• Operating temperature: -25 to 55 °C
• Storage temperature: -40 to 70 °C
• Max altitude: 3000 m
• IP degree (frontal): IP20
• Pollution degree: 3

What’s Included

• Lovato GE0201E three-pole changeover switch
• Manufacturer product datasheet (downloadable)

Applications

• Source changeover between mains supply and backup power on AC systems
• Load transfer and isolation within industrial and commercial control panels
• Switching duties across AC21A–AC23A utilisation categories up to stated ratings
• General changeover of resistive and inductive loads within specified limits

Safety note: Installation and operation must be performed by qualified personnel. Always isolate power before work, fit gG200 fuses for short-circuit protection, and do not exceed the stated electrical ratings or environmental limits.
