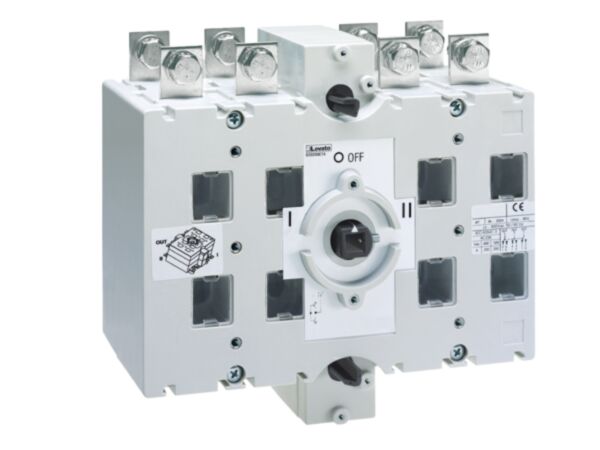

GE0200ET4 - 4P CHANGEOVER SWITCH

Why Choose the GE0200ET4?

Lovato’s GE0200ET4 four‑pole changeover switch delivers dependable AC power switching for industrial panels. With Ith 200 A and screw‑on plate installation, this GE series device suits reliable source transfer and load isolation. Rated insulation voltage Ui 1000 V and impulse withstand Uimp 8 kV support robust performance, with AC21A, AC22A and AC23A utilisation categories covered to 690 V.

It offers operating currents of AC21A 200 A at 400/500/690 V; AC22A 200 A at 400/500 V and 160 A at 690 V; AC23A 160 A at 400 V and 125 A at 500 V. With 100 kA conditional short‑circuit rating using gG200 fuses, 1600 A making capacity, IP20 frontal protection and 30,000 mechanical cycles, it meets IEC/EN 60947‑1/‑3.

Key Benefits

• Four-pole GE series changeover for dependable AC source switching.
• Ith 200 A with AC21A ratings to 690 V.
• Strong insulation: Ui 1000 V and Uimp 8 kV.
• High robustness: 100 kA conditional short-circuit with gG200 fuse.
• Compact safety: IP20 frontal protection and Pollution Degree 3.
• Durable mechanism rated for 30,000 operating cycles.
• Screw-on plate installation for straightforward panel mounting.
• Defined AC22A and AC23A currents for 400–690 V applications.

Technical Specification

• Product type designation: GE
• Number of poles: 4
• Operating voltage type: AC
• Ith (IEC): 200 A
• Rated insulation voltage Ui (IEC/EN): 1000 V
• Rated impulse withstand voltage Uimp: 8 kV
• Operating current Ie AC21A 400 V: 200 A
• Operating current Ie AC21A 500 V: 200 A
• Operating current Ie AC21A 690 V: 200 A
• Operating current Ie AC22A 400 V: 200 A
• Operating current Ie AC22A 500 V: 200 A
• Operating current Ie AC22A 690 V: 160 A
• Operating current Ie AC23A 400 V: 160 A
• Operating current Ie AC23A 500 V: 125 A
• Power dissipation per pole (max): 6 W
• Rated operational power AC23A 400 V: 89 kW
• Rated operational power AC23A 690 V: 76 kW
• Conditional short-circuit current (rms): 100 kA
• Short-circuit protection fuse: gG200
• Making capacity AC23A 400 V: 1600 A
• Mechanical life: 30000 cycles
• Terminal tightening torque (max): 24 Nm
• Operating temperature: -25 to 55 °C
• Storage temperature: -40 to 70 °C
• Max altitude: 3000 m
• IP degree (frontal): IP20
• Pollution degree: 3

What’s Included

• Lovato GE0200ET4 four-pole changeover switch
• Manufacturer documentation (datasheet/installation guidance)

Applications

• Source changeover between mains and alternative AC supplies within ratings
• Industrial distribution boards requiring 4-pole isolation and transfer
• Switching resistive and mixed loads per AC21A/AC22A categories
• Motor and inductive load switching per AC23A ratings
• Panel installations with screw-on plate mounting and IP20 frontal protection

Safety note: Install and commission only by qualified personnel. Observe the published utilisation category ratings, gG200 fuse protection, torque limits and IEC/EN 60947-1/-3 requirements to ensure safe operation.
