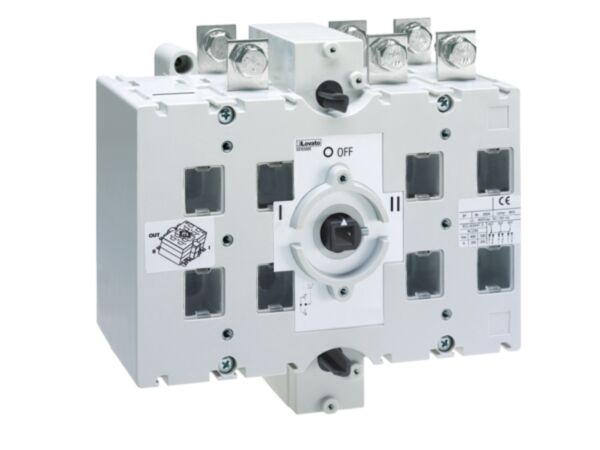

GE0200E - 3P CHANGEOVER SWITCH

Why Choose the GE0200E?

Engineered for dependable source transfer in three-phase systems, the Lovato GE0200E three-pole changeover switch delivers 200 A AC performance in a compact, panel-ready design. The SKU GE0200E supports screw-on-plate mounting and suits industrial and commercial installations requiring safe switching between supplies. With robust insulation and duty ratings, it enables reliable operation across a wide range of distribution, control, and backup power applications.

Certified to IEC/EN 60947-1 and 60947-3, this GE-series switch offers Ui 1000 V, Uimp 8 kV and IP20 frontal protection. It provides AC21A/AC22A currents up to 200 A and AC23A capabilities to 160 A at 400 V (125 A at 500 V), with rated power to 89 kW. Designed for durability, it features 30,000 mechanical cycles, -25 to 55 °C operation, 24 Nm max terminal torque, and a 100 kA conditional short-circuit rating with gG200 fuse.

Key Benefits

• 200 A AC capacity for demanding three-phase changeover applications.
• AC21A and AC22A duties up to 200 A across voltages.
• AC23A performance to 160 A at 400 V loads.
• Ui 1000 V and Uimp 8 kV ensure insulation robustness.
• IP20 frontal protection improves safety within control panels.
• Screw-on-plate mounting streamlines secure panel installation.
• Conditional short-circuit withstand up to 100 kA with gG200 fuse.
• Long mechanical life of 30,000 cycles reduces maintenance interventions.

Technical Specification

• Product type designation: GE
• Number of poles: 3
• Operating voltage type: AC
• Ith (IEC): 200 A
• Rated insulation voltage Ui (IEC/EN): 1000 V
• Rated impulse withstand voltage Uimp: 8 kV
• Operating current Ie AC21A 400 V: 200 A
• Operating current Ie AC21A 500 V: 200 A
• Operating current Ie AC21A 690 V: 200 A
• Operating current Ie AC22A 400 V: 200 A
• Operating current Ie AC22A 500 V: 200 A
• Operating current Ie AC22A 690 V: 160 A
• Operating current Ie AC23A 400 V: 160 A
• Operating current Ie AC23A 500 V: 125 A
• Power dissipation per pole (max): 6 W
• Rated operational power AC23A 400 V: 89 kW
• Rated operational power AC23A 690 V: 76 kW
• Conditional short-circuit current (rms): 100 kA
• Short-circuit protection fuse: gG200
• Making capacity AC23A 400 V: 1600 A
• Mechanical life: 30000 cycles
• Terminal tightening torque (max): 24 Nm
• Operating temperature: -25 to 55 °C
• Storage temperature: -40 to 70 °C
• Max altitude: 3000 m
• IP degree (frontal): IP20
• Pollution degree: 3

What’s Included

• Lovato GE0200E three-pole changeover switch
• Installation and safety instructions
• Manufacturer datasheet (downloadable)

Applications

• Mains-to-generator transfer for commercial and industrial premises
• Changeover between redundant supplies in control panels
• Distribution boards requiring safe three-phase source selection
• HVAC and pump systems needing reliable load transfer
• Backup power systems with dependable source switching

Safety note: Installation and servicing must be performed by competent personnel. Isolate power before work, use the specified gG200 fuse to achieve the stated short-circuit rating, and follow IEC/EN 60947 requirements and the manufacturer’s instructions.
