GE0161N - 3P SWITCH DISCONNECTOR W/NH FUSE HOLDER

Why Choose the GE0161N?

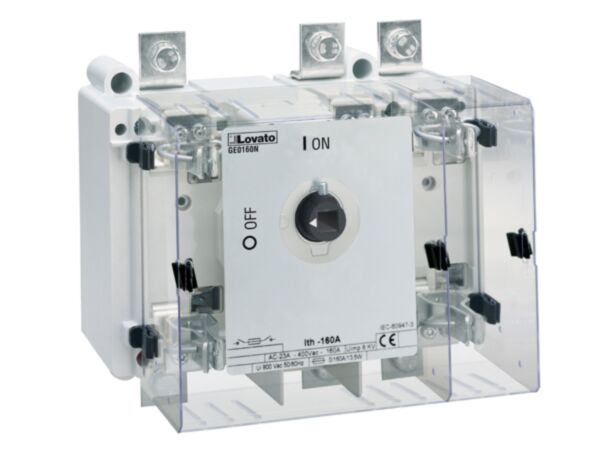

The Lovato GE0161N is a three-pole switch disconnector with NH fuse holder for dependable isolation and protection in AC installations. Delivering an IEC Ith of 160 A and screw-on-plate mounting, it fits control and distribution panels. With a rated insulation voltage Ui of 800 V and Uimp 8 kV, GE0161N provides strong insulation margins for industrial environments and safe, straightforward panel integration.

Rated AC21/AC22 at 160 A up to 690 V and AC23A to 125 A, this unit handles resistive, mixed and inductive loads with confidence. It offers conditional short-circuit current of 100 kA, IP20 frontal protection, and a mechanical life of 10,000 cycles. Terminal tightening torque is 13 Nm, with operation from -25 to 55 °C, up to 3000 m altitude, per IEC/EN 60947-1/-3.

Key Benefits

• 160 A Ith ensures robust isolation and protection in demanding AC circuits.
• Integrated NH fuse holder simplifies protection and saves valuable panel space.
• Ui 800 V and Uimp 8 kV provide strong insulation and surge withstand.
• AC21/AC22 rated 160 A up to 690 V for versatile load switching.
• AC23A up to 125 A at 690 V supports motor and inductive loads.
• Conditional short-circuit rating 100 kA enhances fault withstand when correctly fused.
• IP20 frontal protection improves operator safety during panel access.

Technical Specification

• Product type designation: GE
• Number of poles: 3
• Operating voltage type: AC
• Ith (IEC): 160 A
• Rated insulation voltage Ui (IEC/EN): 800 V
• Rated impulse withstand voltage Uimp: 8 kV
• Operating current Ie AC21A 400 V: 160 A
• Operating current Ie AC21A 500 V: 160 A
• Operating current Ie AC21A 690 V: 160 A
• Operating current Ie AC22A 400 V: 160 A
• Operating current Ie AC22A 500 V: 160 A
• Operating current Ie AC22A 690 V: 160 A
• Operating current Ie AC23A 400 V: 160 A
• Operating current Ie AC23A 500 V: 160 A
• Operating current Ie AC23A 690 V: 125 A
• Power dissipation per pole (max): 13.5 W
• Rated operational power AC23A 400 V: 90 kW
• Rated operational power AC23A 690 V: 110 kW
• Conditional short-circuit current (rms): 100 kA
• Making capacity AC23A 400 V: 1600 A
• Breaking capacity AC23A 400 V: 1280 A
• Mechanical life: 10000 cycles
• Terminal tightening torque (max): 13 Nm
• Operating temperature: -25 to 55 °C
• Storage temperature: -40 to 70 °C
• Max altitude: 3000 m
• IP degree (frontal): IP20
• Pollution degree: 3

What’s Included

• GE0161N switch disconnector with NH fuse holder, 3-pole, 160 A
• Downloadable manufacturer datasheet

Applications

• Main isolation in industrial control and distribution panels
• Switching of resistive and mixed loads to AC21/AC22 duty at 400–690 V
• Motor and inductive load switching to AC23A duty up to 690 V
• Panel-mounted protection using NH fuse links for outgoing circuits
• Incomer or feeder isolation up to 160 A in three-phase systems

Safety note: Installation and commissioning must be performed by qualified personnel with the circuit de-energised. Use correctly rated NH fuses and observe torque, IP20, pollution degree 3, and environmental limits before service.
