GE0160ET4 - 4P CHANGEOVER SWITCH

Why Choose the GE0160ET4?

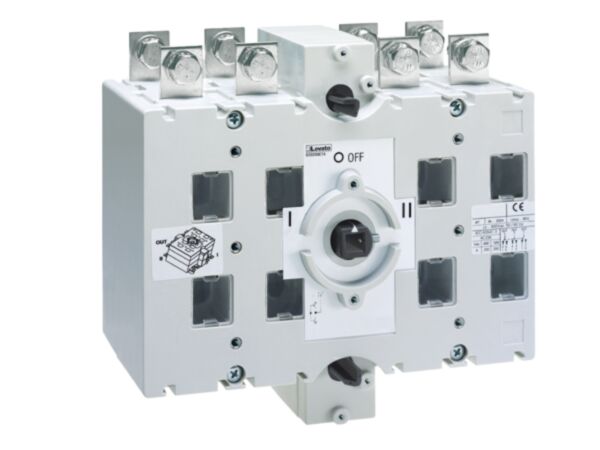

The Lovato GE0160ET4 is a robust four‑pole changeover switch for AC systems, delivering dependable transfer at 160 A. With a rated insulation voltage of 1000 V and 8 kV impulse withstand, it supports demanding panel applications. It achieves AC23A 160 A at 400 V and fits neatly with screw‑on plate installation. An IP20 frontal rating suits protected enclosure mounting in industrial and commercial switchboards.

Built for reliability, the GE series offers up to 30,000 mechanical cycles and a conditional short‑circuit current of 100 kA when protected by a gG160 fuse. Rated operational power reaches 89 kW at 400 V AC23A (76 kW at 690 V), with low dissipation of 4 W per pole. Operating from −25 to 55 °C up to 3000 m, it complies with IEC/EN 60947‑1 and 60947‑3. Max terminal torque is 13 Nm.

Key Benefits

• Four‑pole AC changeover capability with 160 A Ith rating
• High insulation strength: Ui 1000 V and Uimp 8 kV
• AC23A duty up to 160 A at 400 V
• Conditional short‑circuit current 100 kA with gG160 protection
• IP20 frontal protection for safe panel integration
• Wide operating range: −25 to 55 °C, up to 3000 m altitude
• Durable design with 30,000 mechanical cycles
• Secure screw‑on plate mounting; terminals tighten to 13 Nm

Technical Specification

• Product type designation: GE
• Number of poles: 4
• Operating voltage type: AC
• Ith (IEC): 160 A
• Rated insulation voltage Ui (IEC/EN): 1000 V
• Rated impulse withstand voltage Uimp: 8 kV
• Operating current Ie AC21A 400 V: 160 A
• Operating current Ie AC21A 500 V: 160 A
• Operating current Ie AC21A 690 V: 160 A
• Operating current Ie AC22A 400 V: 160 A
• Operating current Ie AC22A 500 V: 160 A
• Operating current Ie AC22A 690 V: 125 A
• Operating current Ie AC23A 400 V: 160 A
• Operating current Ie AC23A 500 V: 125 A
• Power dissipation per pole (max): 4 W
• Rated operational power AC23A 400 V: 89 kW
• Rated operational power AC23A 690 V: 76 kW
• Conditional short-circuit current (rms): 100 kA
• Short-circuit protection fuse: gG160
• Making capacity AC23A 400 V: 1600 A
• Mechanical life: 30000 cycles
• Terminal tightening torque (max): 13 Nm
• Operating temperature: -25 to 55 °C
• Storage temperature: -40 to 70 °C
• Max altitude: 3000 m
• IP degree (frontal): IP20
• Pollution degree: 3

What’s Included

• Lovato GE0160ET4 four‑pole changeover switch
• Installation and safety instructions
• Product datasheet

Applications

• AC load changeover duties to the stated AC21A/AC22A/AC23A ratings
• Industrial control panels and distribution switchboards
• Commercial power distribution boards
• Panel‑building projects requiring screw‑on plate installation
• Environments within −25 to 55 °C and up to 3000 m

Safety note: Installation must be performed by qualified personnel. Isolate all supplies before work, use gG160 fuse protection, observe the IP20 frontal limitation, and tighten terminals to 13 Nm in accordance with IEC/EN 60947 and local regulations.
