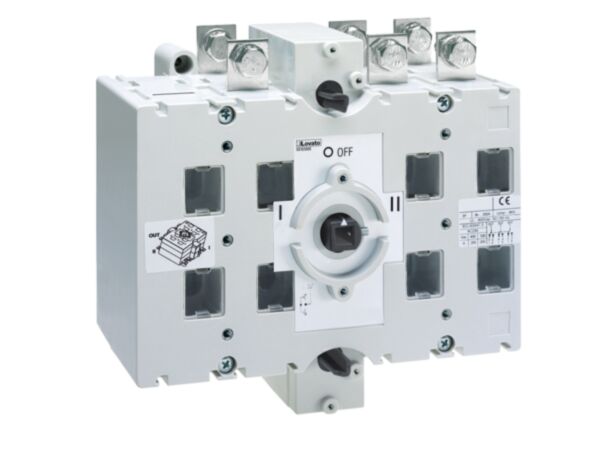

GE0160E - 3P CHANGEOVER SWITCH

Why Choose the GE0160E?

Lovato’s GE0160E three‑pole changeover switch delivers dependable source switching for industrial AC applications. With 160 A Ith and AC21A/AC22A/AC23A performance up to 160 A at 400 V, it ensures reliable load transfer and isolation. Rated Ui 1000 V and Uimp 8 kV with IP20 frontal protection, the SKU GE0160E mounts on a screw‑on plate for straightforward panel integration.

Designed for durability and safety, this GE series changeover switch offers a conditional short‑circuit current of 100 kA (with gG160 fuse) and a mechanical life of 30,000 cycles. Operating from -25 to 55 °C and up to 3000 m altitude, it complies with IEC/EN 60947‑1 and 60947‑3. IP20 frontal protection and straightforward screw‑on plate mounting support reliable, sustainable installations.

Key Benefits

• 160 A Ith for robust three‑pole AC changeover duty.
• AC21A/AC22A/AC23A ratings support diverse load switching demands.
• Ui 1000 V and Uimp 8 kV ensure high insulation performance.
• IP20 frontal protection enhances operator safety during operation.
• Screw‑on plate mounting simplifies panel integration.
• Mechanical life rated at 30,000 operating cycles.
• Conditional short‑circuit current 100 kA with gG160 fuse.
• Operates from -25 to 55 °C up to 3000 m altitude.

Technical Specification

• Product type designation: GE
• Number of poles: 3
• Operating voltage type: AC
• Ith (IEC): 160 A
• Rated insulation voltage Ui (IEC/EN): 1000 V
• Rated impulse withstand voltage Uimp: 8 kV
• Operating current Ie AC21A 400 V: 160 A
• Operating current Ie AC21A 500 V: 160 A
• Operating current Ie AC21A 690 V: 160 A
• Operating current Ie AC22A 400 V: 160 A
• Operating current Ie AC22A 500 V: 160 A
• Operating current Ie AC22A 690 V: 125 A
• Operating current Ie AC23A 400 V: 160 A
• Operating current Ie AC23A 500 V: 125 A
• Power dissipation per pole (max): 4 W
• Rated operational power AC23A 400 V: 89 kW
• Rated operational power AC23A 690 V: 76 kW
• Conditional short-circuit current (rms): 100 kA
• Short-circuit protection fuse: gG160
• Making capacity AC23A 400 V: 1600 A
• Mechanical life: 30000 cycles
• Terminal tightening torque (max): 13 Nm
• Operating temperature: -25 to 55 °C
• Storage temperature: -40 to 70 °C
• Max altitude: 3000 m
• IP degree (frontal): IP20
• Pollution degree: 3

What’s Included

• Lovato GE0160E changeover switch (3‑pole, 160 A)
• Manufacturer datasheet (downloadable)
• Panel mounting instructions

Applications

• Mains and generator changeover in industrial AC panels
• Source selection and load transfer for distribution boards
• Motor and mixed‑load switching to AC23A duty at 400 V
• Process, HVAC and pumping equipment changeover operations

Safety note: Install and commission only by qualified personnel. Isolate all supplies before work, use a gG160 fuse for short‑circuit protection, and operate within the stated ratings and standards.
