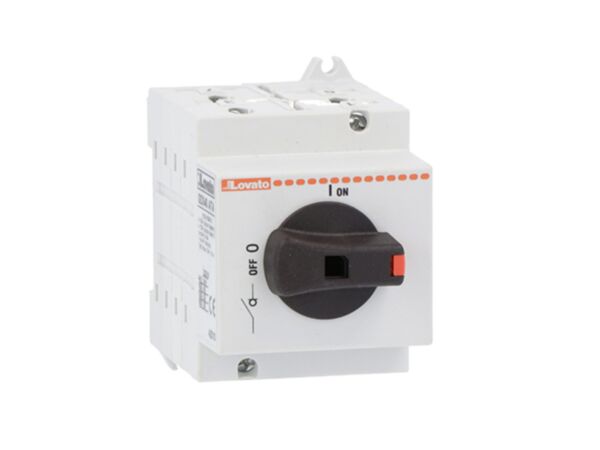

GD040AT4 - DC SWITCH 40A 1000V DC21B DIRECT HANDLE
MPN: GD040AT4
Special Price
£200.65
£167.21
Regular Price
£286.64
Why Choose the GD040AT4?
Engineered for safe DC isolation in solar systems, the Lovato GD040AT4 switch disconnector delivers reliable performance in photovoltaic applications. This direct-operating, 2‑pole unit comes complete with a black handle and supports up to 1500 V DC with Ui 1500 V and Uimp 8 kV. Rated 40 A at 1000 VDC, 32 A at 1200 VDC, and 25 A at 1500 VDC, GD040AT4 ensures dependable disconnection.
Flexible mounting on 35 mm DIN rail or screw-on plate simplifies installation in enclosures. With IP20 frontal protection, 10,000 mechanical cycles, and operation from −25 to +55 °C up to 3000 m altitude, it is built for demanding sites. Screw terminals accept 1–10 mm² conductors with 1.2–1.6 Nm tightening torque for secure, low-loss DC connections.
Key Benefits
- Purpose-designed DC isolator for photovoltaic applications.
- Direct-operating mechanism with black handle for clear, safe switching.
- 2-pole isolation up to 1500 V DC, Ui 1500 V.
- Proven durability with 10,000 mechanical life cycles.
- Flexible screw-plate or 35 mm DIN rail mounting.
- Frontal IP20 protection for safer panel integration.
- Wide −25 to +55 °C operating temperature range.
- Defined DC ratings: 40A/1000V, 32A/1200V, 25A/1500V.
Technical Specification
- Product type designation: GD
- Number of poles: 2
- Operating voltage type: DC
- Ith (IEC): 40 A
- Rated insulation voltage Ui (IEC/EN): 1500 V
- Rated impulse withstand voltage Uimp: 8 kV
- Power dissipation per pole (max): 1.9 W
- Mechanical life: 10000 cycles
- Terminal tightening torque: 1.2 to 1.6 Nm
- Conductor section (IEC): 1 to 10 mm²
- Operating temperature: -25 to +55 °C
- Storage temperature: -40 to +70 °C
- Max altitude: 3000 m
- IP degree (frontal): IP20
What’s Included
- GD040AT4 switch disconnector main unit
- Factory-fitted black direct-operating handle
- Mounting and wiring instructions
- Manufacturer datasheet (downloadable)
Applications
- PV array string isolation in combiner or junction boxes
- DC isolator on the photovoltaic inverter DC side
- Rooftop or ground-mount solar DC distribution enclosures
- Maintenance and emergency DC disconnection in PV systems
Frequently Asked Questions
What DC ratings does the GD040AT4 offer for PV systems?
It is rated 40 A at 1000 VDC, 32 A at 1200 VDC, and 25 A at 1500 VDC.
How can this switch disconnector be mounted?
It mounts by screw on a plate or on a 35 mm DIN rail.
What conductor sizes and torque are supported?
Terminals accept 1–10 mm² conductors with 1.2–1.6 Nm tightening torque.
What are the environmental and protection ratings?
It has IP20 frontal protection and operates from −25 to +55 °C up to 3000 m.
Which standards does the GD040AT4 conform to?
It conforms to IEC/EN 60947-3 and IEC/EN 60947-1.
Safety note: Install and commission by a qualified electrician. Verify the DC voltage and current ratings for the application, and always isolate the supply before maintenance in accordance with the manufacturer’s instructions and relevant standards.
