GAZS100 - S/STEEL ENCLOSED ISOLATOR SWITCH 100A 3 POLE

Why Choose the GAZS100?

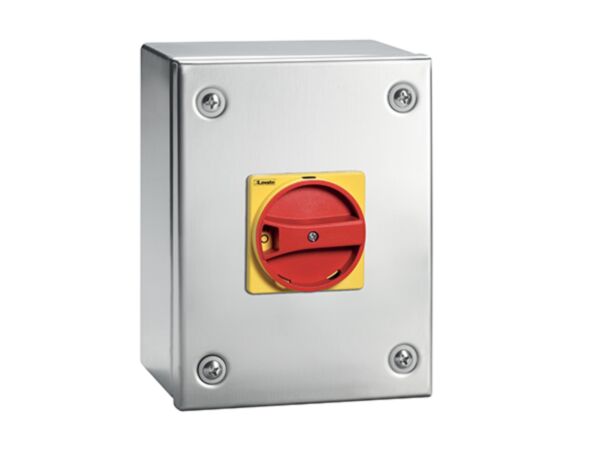

Lovato GAZS100 is a three-pole switch disconnector housed in an IP65 AISI 304 stainless steel enclosure for reliable isolation in demanding environments. The GAZS100 features a rotating red/yellow handle and a 100 A IEC conventional free air thermal current (Ith) for AC systems. Compact enclosure dimensions of 150x200x120 mm (5.9x7.9x4.7'') support enclosed installation in control panels and machinery.

Designed for performance, it offers Ui 1000 V and Uimp 8 kV, with AC21A/AC22A ratings at 100 A up to 690 V and AC23A ratings of 100 A (400 V), 80 A (500 V) and 47 A (690 V). Conditional short-circuit current is 50 kA with gG100 fuse. Mechanical and electrical life reach 30,000 cycles, with operation from -25 to +55 °C up to 3000 m. Compliant with IEC/EN 60947-3 and 60947-1.

Key Benefits

• IP65 stainless steel AISI 304 enclosure for durable, sealed protection.
• Three-pole isolation with rotating red/yellow handle for clear operation.
• 100 A Ith with Ui 1000 V and Uimp 8 kV headroom.
• AC21A/AC22A 100 A ratings up to 690 V.
• AC23A duty: 100 A at 400 V, 80 A at 500 V.
• Compact 150x200x120 mm enclosure for straightforward installation.
• Wide -25 to +55 °C operating range; altitude up to 3000 m.
• Tested longevity with 30,000 mechanical and electrical cycles.

Technical Specification

• Product type designation: GAZS
• Number of poles: 3
• Operating voltage type: AC
• Ith (IEC): 100 A
• Rated insulation voltage Ui (IEC/EN): 1000 V
• Rated impulse withstand voltage Uimp: 8 kV
• Operating current Ie AC21A 400 V: 100 A
• Operating current Ie AC21A 500 V: 100 A
• Operating current Ie AC21A 690 V: 100 A
• Operating current Ie AC22A 400 V: 100 A
• Operating current Ie AC22A 500 V: 100 A
• Operating current Ie AC22A 690 V: 100 A
• Operating current Ie AC23A 400 V: 100 A
• Operating current Ie AC23A 500 V: 80 A
• Operating current Ie AC23A 690 V: 47 A
• Power dissipation per pole (max): 4 W
• Rated operational power AC23A 400 V: 55 kW
• Rated operational power AC23A 690 V: 45 kW
• Conditional short-circuit current (rms): 50 kA
• Short-circuit protection fuse: gG100
• Making capacity AC23A 400 V: 1250 A
• Breaking capacity AC23A 400 V: 1000 A
• Mechanical life: 30000 cycles
• Electrical life AC21A: 30000 cycles
• Terminal tightening torque: 5 to 6 Nm
• Conductor section (IEC): 4 to 70 mm²
• Operating temperature: -25 to +55 °C
• Storage temperature: -40 to +70 °C
• Max altitude: 3000 m
• IP degree (frontal): IP65
• IP degree of protection: IP65
• Pollution degree: 3

What’s Included

• Lovato GAZS100 enclosed three-pole switch disconnector
• Integrated rotating red/yellow handle
• Product documentation and installation guidance

Applications

• Main isolator for industrial control panels and machinery
• Load disconnection for AC circuits up to 690 V
• Maintenance isolation for motor and mixed-duty applications (AC21A/AC22A/AC23A)
• Installations needing sealed stainless steel IP65 enclosures
• Sites operating across wide temperatures and altitudes up to 3000 m

Safety note: Installation and maintenance must be performed by qualified personnel. Isolate the supply before work and use the specified gG100 fuse and tightening torques in accordance with IEC/EN standards and local regulations.
