GAZS063SA - S/STEEL ENCLOSED ISOLATOR SWITCH 63A 3 POLE

Why Choose the GAZS063SA?

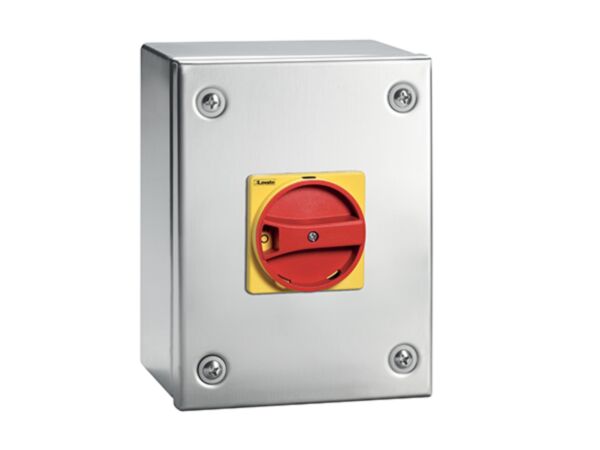

Lovato’s GAZS063SA switch disconnector delivers reliable isolation in a rugged, enclosed design. Housed in an IP65 AISI 304 stainless steel enclosure with a rotating red/yellow handle, this 3‑pole unit is rated 63 A (Ith) for AC systems. With 1000 V rated insulation (Ui) and 8 kV impulse withstand (Uimp), it provides dependable performance for industrial control and maintenance isolation where durability and safety are paramount.

Operational ratings include Ie up to 63 A in AC21A at 400/500/690 V, 45 A in AC22A at 500/690 V, and 45/25 A in AC23A at 400/500/690 V, with 22 kW AC23A power at 400 V and 690 V. It offers a 10 kA conditional short-circuit current using gG63 fusing, 100000 mechanical cycles, and an operating range of -25 to +55 °C. Compact 150x200x120 mm dimensions and IEC/EN 60947-3 compliance make it ideal for dependable panel isolation.

Key Benefits

• Corrosion-resistant AISI 304 stainless steel enclosure for demanding environments.
• IP65 protection resists dust ingress and low-pressure water jets.
• 3-pole, 63 A Ith design ensures reliable AC circuit isolation.
• High insulation ratings: Ui 1000 V and Uimp 8 kV.
• Proven performance across AC21A, AC22A and AC23A utilisation categories.
• Mechanical life of 100000 cycles supports long service intervals.
• Wide operating temperature range from -25 to +55 °C.

Technical Specification

• Product type designation: GAZS
• Number of poles: 3
• Operating voltage type: AC
• Ith (IEC): 63 A
• Rated insulation voltage Ui (IEC/EN): 1000 V
• Rated impulse withstand voltage Uimp: 8 kV
• Operating current Ie AC21A 400 V: 63 A
• Operating current Ie AC21A 500 V: 63 A
• Operating current Ie AC21A 690 V: 63 A
• Operating current Ie AC22A 400 V: 63 A
• Operating current Ie AC22A 500 V: 45 A
• Operating current Ie AC22A 690 V: 45 A
• Operating current Ie AC23A 400 V: 45 A
• Operating current Ie AC23A 500 V: 25 A
• Operating current Ie AC23A 690 V: 25 A
• Power dissipation per pole (max): 2.9 W
• Rated operational power AC23A 400 V: 22 kW
• Rated operational power AC23A 690 V: 22 kW
• Conditional short-circuit current (rms): 10 kA
• Short-circuit protection fuse: gG63
• Making capacity AC23A 400 V: 450 A
• Breaking capacity AC23A 400 V: 360 A
• Mechanical life: 100000 cycles
• Electrical life AC21A: 15000 cycles
• Terminal tightening torque: 1.8 to 2 Nm
• Conductor section (IEC): 0.75 to 16 mm²
• Operating temperature: -25 to +55 °C
• Storage temperature: -40 to +70 °C
• Max altitude: 3000 m
• IP degree (frontal): IP65
• IP degree of protection: IP65
• Pollution degree: 3

What’s Included

• Enclosed 3-pole switch disconnector (AISI 304 stainless steel, IP65)
• Rotating red/yellow handle fitted to enclosure
• Installation instructions

Applications

• Main isolator for machinery and industrial plant
• Motor and HVAC circuit isolation within AC21A/AC22A/AC23A ratings
• Food and beverage washdown areas needing AISI 304 enclosures
• Dusty or wet industrial zones requiring IP65 ingress protection
• Local isolation on control panels and distribution equipment

Safety note: Installation and commissioning must be carried out by a qualified electrician. Always isolate the supply, use the specified protective fuse, and ensure the enclosure is properly sealed to maintain IP65 protection.
