GAZS063 - S/STEEL ENCLOSED ISOLATOR SWITCH 63A 3 POLE

Why Choose the GAZS063?

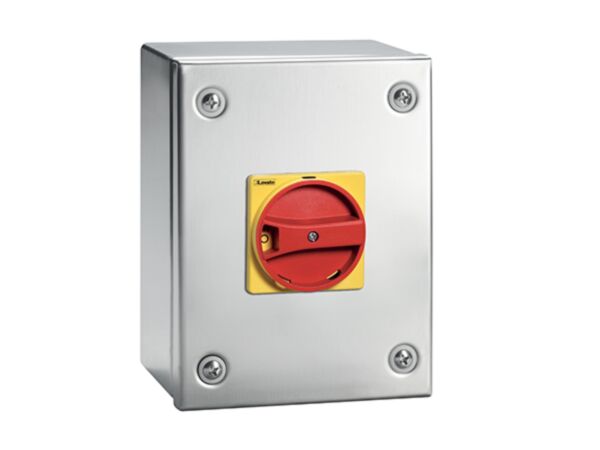

The Lovato GAZS063 switch disconnector delivers reliable three-pole, 63 A isolation in a rugged, enclosed design. Housed in an IP65 stainless steel AISI 304 enclosure with a high-visibility red/yellow rotary handle, it's built for harsh industrial environments. Its compact 150x200x120 mm footprint simplifies installation where space is limited while maintaining robust performance for AC circuits and compliant operation to IEC/EN 60947-3.

With Ui 1000 V and 8 kV impulse withstand, the device supports on-load switching across AC21A, AC22A and AC23A duties up to 690 V. It offers 30,000 mechanical and AC21A electrical cycles, 50 kA conditional short-circuit rating with gG63 fuse, and works from -25 to +55 °C. Terminal torque is 5 to 6 Nm with 4 to 70 mm² conductors.

Key Benefits

• IP65 AISI 304 stainless steel enclosure for rugged, corrosion-resistant protection.
• Three-pole, 63 A rating for dependable on-load AC isolation.
• Red/yellow rotary handle ensures clear actuation and straightforward operation.
• Ui 1000 V and 8 kV Uimp provide strong dielectric performance margin.
• AC21A/AC22A/AC23A duties up to 690 V for versatile applications.
• 50 kA conditional short-circuit capability with gG63 fuse enhances safety.
• Compact 150x200x120 mm enclosure simplifies installation in tight spaces.

Technical Specification

• Product type designation: GAZS
• Number of poles: 3
• Operating voltage type: AC
• Ith (IEC): 63 A
• Rated insulation voltage Ui (IEC/EN): 1000 V
• Rated impulse withstand voltage Uimp: 8 kV
• Operating current Ie AC21A 400 V: 63 A
• Operating current Ie AC21A 500 V: 63 A
• Operating current Ie AC21A 690 V: 63 A
• Operating current Ie AC22A 400 V: 63 A
• Operating current Ie AC22A 500 V: 63 A
• Operating current Ie AC22A 690 V: 63 A
• Operating current Ie AC23A 400 V: 63 A
• Operating current Ie AC23A 500 V: 63 A
• Operating current Ie AC23A 690 V: 47 A
• Power dissipation per pole (max): 1.6 W
• Rated operational power AC23A 400 V: 30 kW
• Rated operational power AC23A 690 V: 45 kW
• Conditional short-circuit current (rms): 50 kA
• Short-circuit protection fuse: gG63
• Making capacity AC23A 400 V: 1250 A
• Breaking capacity AC23A 400 V: 1000 A
• Mechanical life: 30000 cycles
• Electrical life AC21A: 30000 cycles
• Terminal tightening torque: 5 to 6 Nm
• Conductor section (IEC): 4 to 70 mm²
• Operating temperature: -25 to +55 °C
• Storage temperature: -40 to +70 °C
• Max altitude: 3000 m
• IP degree (frontal): IP65
• IP degree of protection: IP65
• Pollution degree: 3

What’s Included

• Pre-assembled enclosed switch disconnector with stainless steel AISI 304 housing
• Red/yellow rotary door handle fitted to the enclosure
• Installation and safety instructions
• Product data sheet (downloadable)

Applications

• On-load isolation of AC circuits in industrial environments
• Local isolator for machinery, drives and plant equipment
• Main switch duties for panels requiring IP65 protection
• Installations exposed to dust and water jets where stainless steel is preferred

Safety note: Install and commission only by qualified personnel. Isolate all power before work, use the specified gG63 fuse, and tighten terminals to 5–6 Nm within the stated operating limits.
