GAZS040 - S/STEEL ENCLOSED ISOLATOR SWITCH 40A 3 POLE

Why Choose the GAZS040?

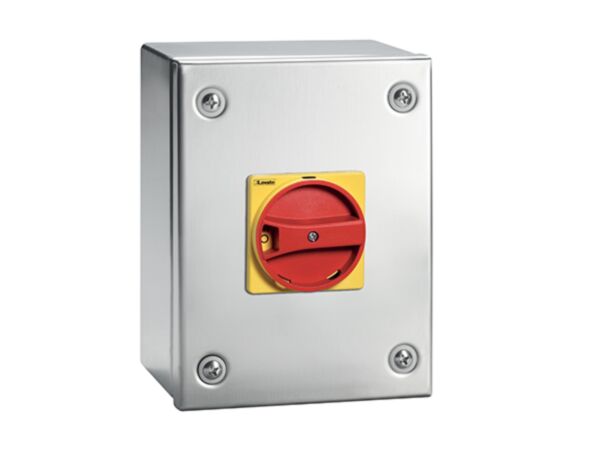

Engineered by Lovato, the GAZS040 is a three-pole switch disconnector supplied in an IP65 AISI 304 stainless steel enclosure with a rotating red/yellow handle. Rated at 40 A Ith for dependable isolation, this compact unit measures 150x200x120 mm (5.9x7.9x4.7''). SKU GAZS040 suits AC applications demanding durable, safe, and straightforward operation.

Designed for reliability, it offers Ui 1000 V and Uimp 8 kV, with AC21A and AC22A ratings of 40 A up to 690 V. For AC23A duty it provides 40 A at 400 V and 25 A at 500/690 V, with mechanical and AC21A electrical life of 100,000 cycles. IP65 sealing and AISI 304 construction aid durability in demanding industrial settings.

Key Benefits

• IP65 stainless steel AISI 304 enclosure resists dust and water ingress.
• Three-pole isolator with visible rotary red/yellow handle for safe operation.
• 40 A Ith and AC21A/AC22A ratings up to 690 V.
• AC23A duty: 40 A at 400 V; 25 A at 500/690 V.
• High dielectric strength: Ui 1000 V and Uimp 8 kV.
• Long service life with 100,000 mechanical and electrical cycles.
• Compact 150x200x120 mm enclosure simplifies placement and retrofits.

Technical Specification

• Product type designation: GAZS
• Number of poles: 3
• Operating voltage type: AC
• Ith (IEC): 40 A
• Rated insulation voltage Ui (IEC/EN): 1000 V
• Rated impulse withstand voltage Uimp: 8 kV
• Operating current Ie AC21A 400 V: 40 A
• Operating current Ie AC21A 500 V: 40 A
• Operating current Ie AC21A 690 V: 40 A
• Operating current Ie AC22A 400 V: 40 A
• Operating current Ie AC22A 500 V: 40 A
• Operating current Ie AC22A 690 V: 40 A
• Operating current Ie AC23A 400 V: 40 A
• Operating current Ie AC23A 500 V: 25 A
• Operating current Ie AC23A 690 V: 25 A
• Power dissipation per pole (max): 1 W
• Rated operational power AC23A 400 V: 18.5 kW
• Rated operational power AC23A 690 V: 22 kW
• Conditional short-circuit current (rms): 10 kA
• Short-circuit protection fuse: gG40
• Making capacity AC23A 400 V: 400 A
• Breaking capacity AC23A 400 V: 320 A
• Mechanical life: 100000 cycles
• Electrical life AC21A: 100000 cycles
• Terminal tightening torque: 1.8 to 2 Nm
• Conductor section (IEC): 0.75 to 16 mm²
• Operating temperature: -25 to +55 °C
• Storage temperature: -40 to +70 °C
• Max altitude: 3000 m
• IP degree (frontal): IP65
• IP degree of protection: IP65
• Pollution degree: 3

What’s Included

• Enclosed three-pole switch disconnector (Lovato GAZS040)
• Rotating red/yellow handle pre-fitted
• Stainless steel AISI 304 IP65 enclosure
• Product datasheet (downloadable)

Applications

• Main isolator for machinery and plant equipment up to 40 A
• Local isolation for AC distribution panels and control cabinets
• Switching and isolation of resistive or mixed loads (AC21A/AC22A)
• Isolation of motor loads within AC23A duty at 400-690 V
• Use in industrial areas requiring IP65 stainless steel enclosures

Safety note: Installation and maintenance must be performed by qualified personnel. Always isolate the supply before work, observe the stated ratings, and protect with the specified fuse.
