GAZS016 - S/STEEL ENCLOSED ISOLATOR SWITCH 16A 3 POLE

Why Choose the GAZS016?

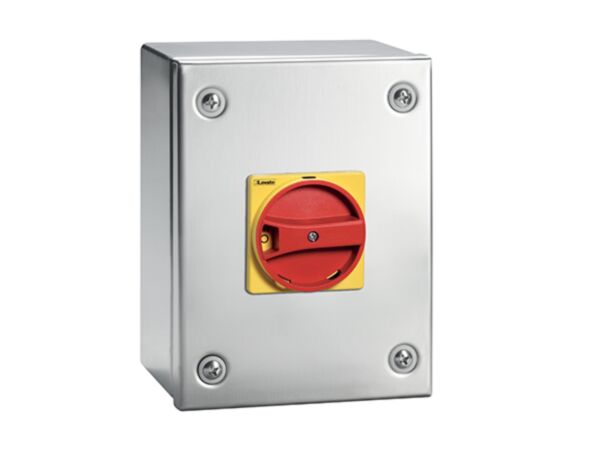

Lovato GAZS016 is a three‑pole switch disconnector supplied in an enclosed stainless steel AISI 304 housing with IP65 protection. Designed for reliable isolation in AC systems, it features a red/yellow rotary handle for clear status indication and safe operation. With 16 A Ith and compact 150x200x120mm dimensions, it fits machine panels and harsh environments.

Built to IEC/EN 60947-3 and 60947-1, it offers Ui 1000 V, Uimp 8 kV and 16 A across AC21A/AC22A/AC23A duties up to 690 V. Rated operational power is 7.5 kW at 400 V and 11 kW at 690 V. With 10 kA conditional short‑circuit withstand (gG16 fuse) and 100,000-cycle mechanical and electrical life, it performs from −25 to +55 °C.

Key Benefits

• IP65 stainless steel AISI 304 enclosure resists dust, water and corrosion.
• Clear red/yellow rotary handle for safe, visible isolation status.
• 16 A Ith with 3-pole AC switching up to 690 V.
• High insulation ratings: Ui 1000 V and Uimp 8 kV.
• Robust duty ratings AC21A/AC22A/AC23A at 16 A.
• Compact 150x200x120mm footprint for space‑constrained panels.
• Conditional short-circuit withstand 10 kA with gG16 fuse.
• Long service life: 100,000 mechanical and electrical cycles.

Technical Specification

• Product type designation: GAZS
• Number of poles: 3
• Operating voltage type: AC
• Ith (IEC): 16 A
• Rated insulation voltage Ui (IEC/EN): 1000 V
• Rated impulse withstand voltage Uimp: 8 kV
• Operating current Ie AC21A 400 V: 16 A
• Operating current Ie AC21A 500 V: 16 A
• Operating current Ie AC21A 690 V: 16 A
• Operating current Ie AC22A 400 V: 16 A
• Operating current Ie AC22A 500 V: 16 A
• Operating current Ie AC22A 690 V: 16 A
• Operating current Ie AC23A 400 V: 16 A
• Operating current Ie AC23A 500 V: 16 A
• Operating current Ie AC23A 690 V: 16 A
• Power dissipation per pole (max): 0.2 W
• Rated operational power AC23A 400 V: 7.5 kW
• Rated operational power AC23A 690 V: 11 kW
• Conditional short-circuit current (rms): 10 kA
• Short-circuit protection fuse: gG16
• Making capacity AC23A 400 V: 400 A
• Breaking capacity AC23A 400 V: 320 A
• Mechanical life: 100000 cycles
• Electrical life AC21A: 100000 cycles
• Terminal tightening torque: 1.8 to 2 Nm
• Conductor section (IEC): 0.75 to 16 mm²
• Operating temperature: -25 to +55 °C
• Storage temperature: -40 to +70 °C
• Max altitude: 3000 m
• IP degree (frontal): IP65
• IP degree of protection: IP65
• Pollution degree: 3

What’s Included

• Lovato GAZS016 enclosed 3‑pole switch disconnector
• Red/yellow rotary handle fitted to enclosure
• Stainless steel AISI 304 IP65 enclosure
• Installation and safety information

Applications

• Machine and process isolation in industrial control panels
• Motor and load disconnection for maintenance and lockout procedures
• HVAC, pump and fan switching to AC23A duties
• Food, beverage and washdown areas requiring IP65 stainless enclosures
• Outdoor sheltered installations exposed to dust and water jets

Safety note: Installation must be performed by a qualified electrician. Isolate the supply before work, use the specified gG16 fuse, and tighten terminals to 1.8–2 Nm. Do not exceed stated ratings or environmental limits.
