GAZM160 - 3P 160A METAL ENCLOSED ISOLATOR

Why Choose the GAZM160?

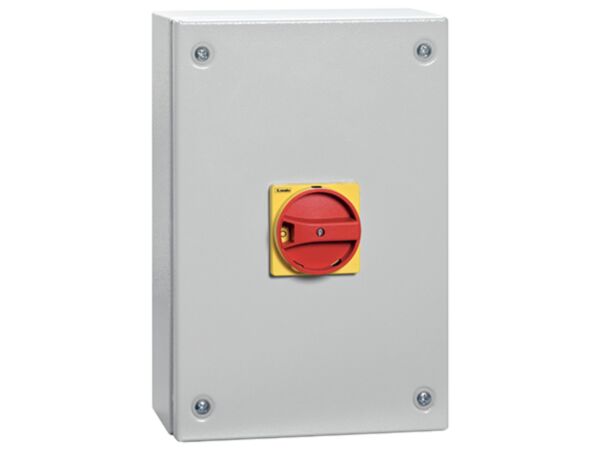

Engineered for dependable isolation, the Lovato GAZM160 is a three-pole switch disconnector housed in a rugged IP65 metal enclosure with a red/yellow rotary handle. Rated Ith 160 A for AC applications, this enclosed unit simplifies installation and operator safety. Compact yet robust at 200x300x120 mm (7.9x11.8x4.7''), the GAZM160 suits space-constrained panels while providing clear, positive switching.

Backed by IEC/EN 60947-3 and 60947-1 compliance, it delivers strong electrical performance: Ui 1000 V, Uimp 8 kV and utilisation category ratings up to AC21A 160 A. A conditional short-circuit current of 50 kA (with gG160 fuse), 30,000 mechanical cycles and operation from -25 to +55 °C ensure long service life across demanding industrial environments.

Key Benefits

• IP65 frontal protection for dust-tight, water-jet resistant operation
• 160 A Ith three-pole isolation for demanding AC circuits
• Robust metal enclosure with high-visibility red/yellow rotary handle
• High insulation: Ui 1000 V and Uimp 8 kV withstand
• Proven endurance with 30,000 mechanical cycles service life
• Wide temperature range −25 to +55 °C, up to 3000 m altitude
• Strong fault withstand with 50 kA conditional short-circuit rating

Technical Specification

• Product type designation: GAZM
• Number of poles: 3
• Operating voltage type: AC
• Ith (IEC): 160 A
• Rated insulation voltage Ui (IEC/EN): 1000 V
• Rated impulse withstand voltage Uimp: 8 kV
• Operating current Ie AC21A 400 V: 160 A
• Operating current Ie AC21A 500 V: 160 A
• Operating current Ie AC21A 690 V: 160 A
• Operating current Ie AC22A 400 V: 160 A
• Operating current Ie AC22A 500 V: 125 A
• Operating current Ie AC22A 690 V: 125 A
• Operating current Ie AC23A 400 V: 125 A
• Operating current Ie AC23A 500 V: 100 A
• Operating current Ie AC23A 690 V: 47 A
• Power dissipation per pole (max): 12 W
• Rated operational power AC23A 400 V: 55 kW
• Rated operational power AC23A 690 V: 45 kW
• Conditional short-circuit current (rms): 50 kA
• Short-circuit protection fuse: gG160
• Making capacity AC23A 400 V: 1250 A
• Breaking capacity AC23A 400 V: 1000 A
• Mechanical life: 30000 cycles
• Electrical life AC21A: 1500 cycles
• Terminal tightening torque: 5 to 6 Nm
• Conductor section (IEC): 4 to 70 mm²
• Operating temperature: -25 to +55 °C
• Storage temperature: -40 to +70 °C
• Max altitude: 3000 m
• IP degree (frontal): IP65
• Pollution degree: 3

What’s Included

• Lovato GAZM160 enclosed switch disconnector, 3-pole, IP65
• Integrated red/yellow rotary handle fitted to the enclosure

Applications

• Main isolation for industrial control panels and switchboards
• Local motor and machinery isolation during maintenance
• HVAC, pumps and process equipment disconnection
• Power distribution circuits requiring clear rotary isolation

Safety note: Installation and servicing must be performed by qualified personnel. Always isolate the supply, use the specified gG160 fuse, and follow applicable IEC/EN 60947 safety and wiring practices.
