GAZM080 - 3P 80A METAL ENCLOSED ISOLATOR

Why Choose the GAZM080?

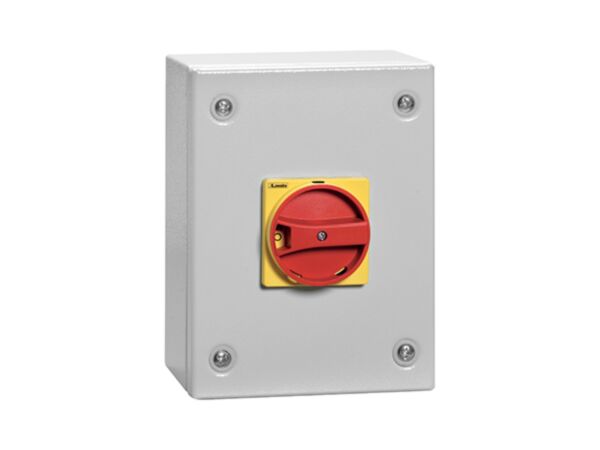

The Lovato GAZM080 switch disconnector delivers reliable isolation in a robust IP65 metal enclosure. This three‑pole, AC type unit features a rotating red/yellow handle for clear on/off indication and safe operation. Rated at 80 A (Ith) and engineered for enclosed installation, SKU GAZM080 provides dependable switching performance for control panels and machinery where secure, visible disconnection is required.

Built to IEC/EN 60947-3 and 60947-1, the GAZM series enclosure offers 1000 V Ui and 8 kV impulse withstand, with IP65 ingress protection. It supports operational currents up to 80 A in AC21/AC22 duty and up to 63 A AC23A at 500 V, with 50 kA conditional short-circuit current capability and sturdy 150×200×120 mm enclosure dimensions.

Key Benefits

• IP65 metallic enclosure for dust-tight, water jet protected isolation.
• Three-pole AC switch disconnector for versatile load breaking.
• 80 A Ith with AC21/AC22 duty up to 80 A.
• Clear rotating red/yellow handle for safe, visible disconnection.
• High dielectric strength: Ui 1000 V, Uimp 8 kV.
• Robust short-circuit performance, 50 kA conditional withstand with gG80 fuse.
• Compact 150×200×120 mm enclosure suited to panels.

Technical Specification

• Product type designation: GAZM
• Number of poles: 3
• Operating voltage type: AC
• Ith (IEC): 80 A
• Rated insulation voltage Ui (IEC/EN): 1000 V
• Rated impulse withstand voltage Uimp: 8 kV
• Operating current Ie AC21A 400 V: 80 A
• Operating current Ie AC21A 500 V: 80 A
• Operating current Ie AC21A 690 V: 80 A
• Operating current Ie AC22A 400 V: 80 A
• Operating current Ie AC22A 500 V: 80 A
• Operating current Ie AC22A 690 V: 80 A
• Operating current Ie AC23A 400 V: 80 A
• Operating current Ie AC23A 500 V: 63 A
• Operating current Ie AC23A 690 V: 47 A
• Power dissipation per pole (max): 2.6 W
• Rated operational power AC23A 400 V: 45 kW
• Rated operational power AC23A 690 V: 45 kW
• Conditional short-circuit current (rms): 50 kA
• Short-circuit protection fuse: gG80
• Making capacity AC23A 400 V: 1250 A
• Breaking capacity AC23A 400 V: 1000 A
• Mechanical life: 30000 cycles
• Electrical life AC21A: 30000 cycles
• Terminal tightening torque: 5 to 6 Nm
• Conductor section (IEC): 4 to 70 mm²
• Operating temperature: -25 to +55 °C
• Storage temperature: -40 to +70 °C
• Max altitude: 3000 m
• IP degree (frontal): IP65
• IP degree of protection: IP65
• Pollution degree: 3

What’s Included

• Lovato GAZM080 switch disconnector in IP65 metal enclosure
• Factory-fitted rotating red/yellow operating handle
• Pre-assembled enclosed unit for installation

Applications

• Main isolation switch for equipment and control panels
• Load breaking and maintenance disconnection up to 80 A AC
• Environments requiring IP65 ingress protection and visible switching
• Industrial inductive load circuits within AC23A ratings

Safety note: Install and commission only by qualified personnel. Always isolate the supply before work, use the specified gG80 fuse, and operate within the stated ratings and environmental limits.
