GAZM063T4 - 4P 63A METAL ENCLOSED ISOLATOR

Why Choose the GAZM063T4?

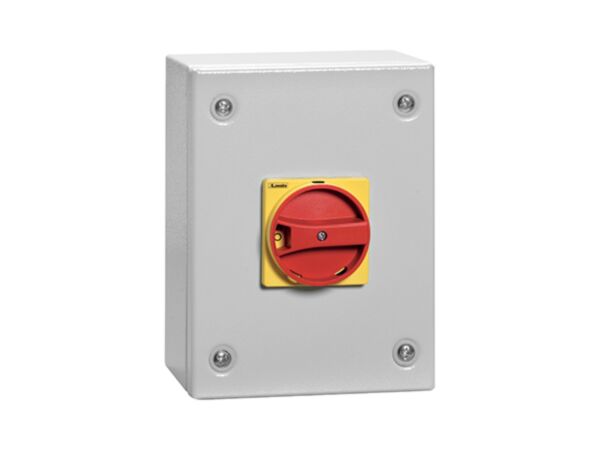

The Lovato GAZM063T4 is a four‑pole switch disconnector in a robust IP65 metal enclosure, engineered for reliable isolation in industrial and commercial installations. Featuring a front‑mounted red/yellow rotary handle and rated at 63 A, it offers clear, safe operation for maintenance and emergency cut‑off. Compact yet spacious, the 150x200x120mm housing simplifies mounting while protecting against dust and water jets.

Built for demanding duties, it carries Ui 1000 V and Uimp 8 kV, with AC21A/AC22A 63 A ratings up to 690 V and AC23A 63 A (400/500 V) or 47 A (690 V). A 50 kA conditional short‑circuit rating with gG63 fuse, 30,000 mechanical and electrical cycles, and 4–70 mm² terminals (5–6 Nm) ensure durability. Operates from -25 to +55 °C, to 3000 m, conforming to IEC/EN 60947-3 and 60947-1.

Key Benefits

• IP65 metal enclosure resists dust and water jets for reliable isolation.
• Four-pole configuration suits three-phase plus neutral circuits.
• 63 A AC21/AC22 ratings up to 690 V across applications.
• AC23A performance: 63 A at 400/500 V, 47 A at 690 V.
• High 50 kA conditional short-circuit rating with gG63 fuse.
• Durable 30,000-cycle mechanical and electrical life.
• Wide 4–70 mm² terminal capacity; 5–6 Nm tightening torque.

Technical Specification

• Product type designation: GAZM
• Number of poles: 4
• Operating voltage type: AC
• Ith (IEC): 63 A
• Rated insulation voltage Ui (IEC/EN): 1000 V
• Rated impulse withstand voltage Uimp: 8 kV
• Operating current Ie AC21A 400 V: 63 A
• Operating current Ie AC21A 500 V: 63 A
• Operating current Ie AC21A 690 V: 63 A
• Operating current Ie AC22A 400 V: 63 A
• Operating current Ie AC22A 500 V: 63 A
• Operating current Ie AC22A 690 V: 63 A
• Operating current Ie AC23A 400 V: 63 A
• Operating current Ie AC23A 500 V: 63 A
• Operating current Ie AC23A 690 V: 47 A
• Power dissipation per pole (max): 1.6 W
• Rated operational power AC23A 400 V: 30 kW
• Rated operational power AC23A 690 V: 45 kW
• Conditional short-circuit current (rms): 50 kA
• Short-circuit protection fuse: gG63
• Making capacity AC23A 400 V: 1250 A
• Breaking capacity AC23A 400 V: 1000 A
• Mechanical life: 30000 cycles
• Electrical life AC21A: 30000 cycles
• Terminal tightening torque: 5 to 6 Nm
• Conductor section (IEC): 4 to 70 mm²
• Operating temperature: -25 to +55 °C
• Storage temperature: -40 to +70 °C
• Max altitude: 3000 m
• IP degree (frontal): IP65
• IP degree of protection: IP65
• Pollution degree: 3

What’s Included

• Lovato GAZM063T4 enclosed switch disconnector (IP65, 4-pole, 63 A)
• Front-mounted red/yellow rotary operating handle

Applications

• Main isolator for industrial control panels and distribution boards
• On-load isolation for machinery maintenance and emergency shutdowns
• Motor isolation within AC23A limits at 400/500/690 V
• HVAC, pump and fan systems requiring secure local isolation
• Harsh environments needing IP65-protected switchgear enclosures

Safety note: Install and commission only by qualified personnel. Always isolate supply before work, use gG63 short‑circuit protection as specified, and tighten terminals to 5–6 Nm to ensure safe operation.
