GAZM040 - 3P 40A METAL ENCLOSED ISOLATOR

Why Choose the GAZM040?

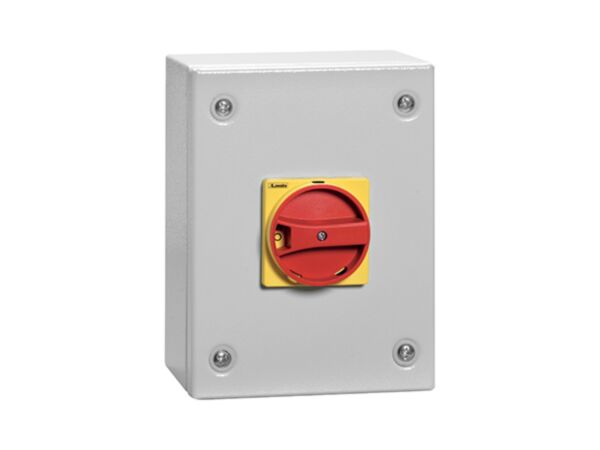

Lovato GAZM040 is an enclosed switch disconnector for reliable three-phase isolation. In a robust IP65 metal enclosure with a rotating red/yellow handle, this 3-pole, 40 A unit is engineered for AC duties where safe, visible switching matters. The compact housing measures 150x200x120 mm (5.9x7.9x4.7"), combining durability with clear operator control for machinery, panels and plant areas.

Performance is proven with Ui 1000 V and Uimp 8 kV, plus 40 A Ie for AC21A/AC22A up to 690 V. For AC23A, it delivers 40 A at 400 V and 25 A at 500/690 V, with 18.5 kW at 400 V and 22 kW at 690 V. Conditional short-circuit current is 10 kA with gG40 protection. Built for endurance to 100,000 mechanical and electrical cycles, it operates from -25 to +55 °C and complies with IEC/EN 60947-3 and 60947-1.

Key Benefits

• IP65 metal enclosure resists dust and water jets.
• 3-pole isolation for three-phase AC circuits up to 690 V.
• 40 A Ith with AC21/AC22 Ie 40 A across 400–690 V.
• Strong AC23A performance: 40 A at 400 V, 25 A at 500/690 V.
• Robust making/breaking capacity at 400 V: 400 A/320 A.
• Wide operating range -25 to +55 °C, up to 3000 m altitude.
• Long service life: 100,000 mechanical and electrical cycles.
• Clear red/yellow rotary handle for positive status indication.

Technical Specification

• Product type designation: GAZM
• Number of poles: 3
• Operating voltage type: AC
• Ith (IEC): 40 A
• Rated insulation voltage Ui (IEC/EN): 1000 V
• Rated impulse withstand voltage Uimp: 8 kV
• Operating current Ie AC21A 400 V: 40 A
• Operating current Ie AC21A 500 V: 40 A
• Operating current Ie AC21A 690 V: 40 A
• Operating current Ie AC22A 400 V: 40 A
• Operating current Ie AC22A 500 V: 40 A
• Operating current Ie AC22A 690 V: 40 A
• Operating current Ie AC23A 400 V: 40 A
• Operating current Ie AC23A 500 V: 25 A
• Operating current Ie AC23A 690 V: 25 A
• Power dissipation per pole (max): 1 W
• Rated operational power AC23A 400 V: 18.5 kW
• Rated operational power AC23A 690 V: 22 kW
• Conditional short-circuit current (rms): 10 kA
• Short-circuit protection fuse: gG40
• Making capacity AC23A 400 V: 400 A
• Breaking capacity AC23A 400 V: 320 A
• Mechanical life: 100000 cycles
• Electrical life AC21A: 100000 cycles
• Terminal tightening torque: 1.8 to 2 Nm
• Conductor section (IEC): 0.75 to 16 mm²
• Operating temperature: -25 to +55 °C
• Storage temperature: -40 to +70 °C
• Max altitude: 3000 m
• IP degree (frontal): IP65
• IP degree of protection: IP65
• Pollution degree: 3

What’s Included

• Lovato GAZM040 switch disconnector in IP65 metal enclosure
• Pre-fitted red/yellow rotary handle
• Basic installation instructions

Applications

• Three-phase motor and machinery isolation duties
• Main switch for industrial and commercial control panels
• HVAC, pump and fan circuit isolation in plant areas
• Local isolator near equipment for maintenance tasks
• Dusty or washdown zones requiring IP65 protection

Safety note: Install and commission only by qualified personnel. Always isolate the supply before work, use appropriate gG40 short-circuit protection, and observe the stated ratings, temperatures and standards.
