GAZM032 - 3P 32A METAL ENCLOSED ISOLATOR

Why Choose the GAZM032?

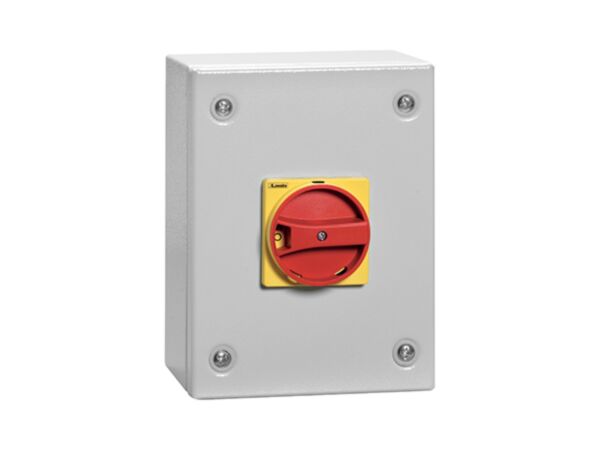

The Lovato GAZM032 switch disconnector arrives factory‑enclosed in a rugged IP65 metal housing with a rotating red/yellow handle for clear on/off actuation. Rated 32 A with three poles for AC circuits, it provides dependable isolation and protection. Compact yet spacious, the enclosure measures 150x200x120mm (5.9x7.9x4.7''), making installation straightforward in panels and on machinery where robust environmental sealing and visibility are essential.

Engineered to IEC/EN 60947-3 and 60947-1, it offers Ui 1000 V, Uimp 8 kV and conditional short‑circuit current 10 kA (with gG32 fuse). Operational ratings include AC23A 15 kW at 400 V. Designed for reliability, it delivers 100000 electrical and mechanical cycles, operates from −25 to +55 °C up to 3000 m, and accepts 0.75–16 mm² conductors with 1.8–2 Nm terminal torque.

Key Benefits

• IP65 metal enclosure resists dust and water jets for harsh environments.
• Clear red/yellow rotary handle enhances visibility and safe isolation.
• Three-pole, 32 A AC rating suits common three‑phase loads.
• High insulation rating Ui 1000 V and Uimp 8 kV.
• Robust short‑circuit performance 10 kA with specified gG32 fuse.
• Long service life: 100000 mechanical and electrical cycles.
• Wide operating range −25 to +55 °C; up to 3000 m altitude.

Technical Specification

• Product type designation: GAZM
• Number of poles: 3
• Operating voltage type: AC
• Ith (IEC): 32 A
• Rated insulation voltage Ui (IEC/EN): 1000 V
• Rated impulse withstand voltage Uimp: 8 kV
• Operating current Ie AC21A 400 V: 32 A
• Operating current Ie AC21A 500 V: 32 A
• Operating current Ie AC21A 690 V: 32 A
• Operating current Ie AC22A 400 V: 32 A
• Operating current Ie AC22A 500 V: 32 A
• Operating current Ie AC22A 690 V: 32 A
• Operating current Ie AC23A 400 V: 32 A
• Operating current Ie AC23A 500 V: 25 A
• Operating current Ie AC23A 690 V: 25 A
• Power dissipation per pole (max): 0.6 W
• Rated operational power AC23A 400 V: 15 kW
• Rated operational power AC23A 690 V: 22 kW
• Conditional short-circuit current (rms): 10 kA
• Short-circuit protection fuse: gG32
• Making capacity AC23A 400 V: 400 A
• Breaking capacity AC23A 400 V: 320 A
• Mechanical life: 100000 cycles
• Electrical life AC21A: 100000 cycles
• Terminal tightening torque: 1.8 to 2 Nm
• Conductor section (IEC): 0.75 to 16 mm²
• Operating temperature: -25 to +55 °C
• Storage temperature: -40 to +70 °C
• Max altitude: 3000 m
• IP degree (frontal): IP65
• IP degree of protection: IP65
• Pollution degree: 3

What’s Included

• Switch disconnector pre-installed in IP65 metal enclosure
• Rotating red/yellow handle fitted to enclosure
• Product datasheet/installation information

Applications

• Local isolation for machinery and production equipment
• Motor and pump isolation duties in industrial plants
• HVAC and building services switch disconnection
• Control panels requiring IP65 enclosed main switch
• Dusty or washdown-prone areas needing robust environmental sealing

Safety note: Install and commission only by a qualified electrician. Isolate the supply before work, follow IEC/EN requirements, and use appropriate gG32 fusing and protective equipment.
