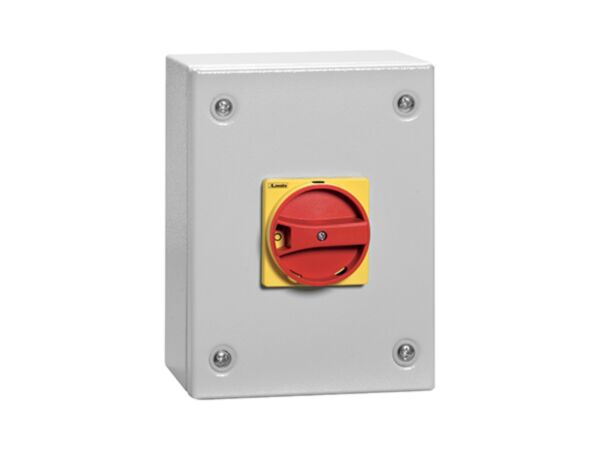

GAZM016 - 3P 16A METAL ENCLOSED ISOLATOR

Why Choose the GAZM016?

Lovato GAZM016 switch disconnector delivers reliable isolation in a rugged IP65 metal enclosure. This 3‑pole, 16 A AC unit features a rotating red/yellow handle for clear on‑site operation and lock‑off. With compact dimensions of 150×200×120 mm, it suits panel or machinery mounting. Rated Ui 1000 V and Uimp 8 kV, it meets IEC/EN 60947‑3 and 60947‑1.

Designed for dependable service, the GAZM016 carries 16 A across AC21A, AC22A and AC23A categories up to 690 V, with 10 kA conditional short‑circuit withstand (gG16 fuse). It offers 100,000 mechanical and electrical cycles, −25 to +55 °C operation and IP65 sealing. Terminals accept 0.75–16 mm² conductors, tightened to 1.8–2 Nm, ensuring secure, compliant installation to 3000 m altitude.

Key Benefits

• IP65 metal enclosure protects against dust and water ingress.
• 3‑pole, 16 A Ith provides reliable AC circuit isolation.
• Red/yellow rotary handle gives clear status and safe lock‑off.
• Ui 1000 V and Uimp 8 kV ensure robust insulation performance.
• Rated 16 A across AC21A, AC22A and AC23A up to 690 V.
• Withstands 10 kA conditional short‑circuit when protected by gG16 fuse.
• Long life: 100,000 mechanical and electrical operating cycles.
• Wide −25 to +55 °C operating range for varied environments.

Technical Specification

• Product type designation: GAZM
• Number of poles: 3
• Operating voltage type: AC
• Ith (IEC): 16 A
• Rated insulation voltage Ui (IEC/EN): 1000 V
• Rated impulse withstand voltage Uimp: 8 kV
• Operating current Ie AC21A 400 V: 16 A
• Operating current Ie AC21A 500 V: 16 A
• Operating current Ie AC21A 690 V: 16 A
• Operating current Ie AC22A 400 V: 16 A
• Operating current Ie AC22A 500 V: 16 A
• Operating current Ie AC22A 690 V: 16 A
• Operating current Ie AC23A 400 V: 16 A
• Operating current Ie AC23A 500 V: 16 A
• Operating current Ie AC23A 690 V: 16 A
• Power dissipation per pole (max): 0.2 W
• Rated operational power AC23A 400 V: 7.5 kW
• Rated operational power AC23A 690 V: 11 kW
• Conditional short-circuit current (rms): 10 kA
• Short-circuit protection fuse: gG16
• Making capacity AC23A 400 V: 400 A
• Breaking capacity AC23A 400 V: 320 A
• Mechanical life: 100000 cycles
• Electrical life AC21A: 100000 cycles
• Terminal tightening torque: 1.8 to 2 Nm
• Conductor section (IEC): 0.75 to 16 mm²
• Operating temperature: -25 to +55 °C
• Storage temperature: -40 to +70 °C
• Max altitude: 3000 m
• IP degree (frontal): IP65
• IP degree of protection: IP65
• Pollution degree: 3

What’s Included

• Enclosed 3‑pole switch disconnector in IP65 metal enclosure (GAZM016)
• Pre‑installed red/yellow rotary handle
• Product documentation

Applications

• Main isolator for industrial machinery and equipment
• Local isolation for HVAC systems, pumps and fans
• Panel and distribution board incoming/outgoing isolation
• Safe lock‑off point for maintenance and service work

Safety note: Installation and commissioning must be performed by a qualified electrician. Isolate all supplies before work, use appropriate gG16 fuse protection, and follow IEC/EN 60947 and local regulations.
