GAZ125T4B - 4P SWITCH 125A-ENCLOS-BLACK HAND.PADLOCK

Why Choose the GAZ125T4B?

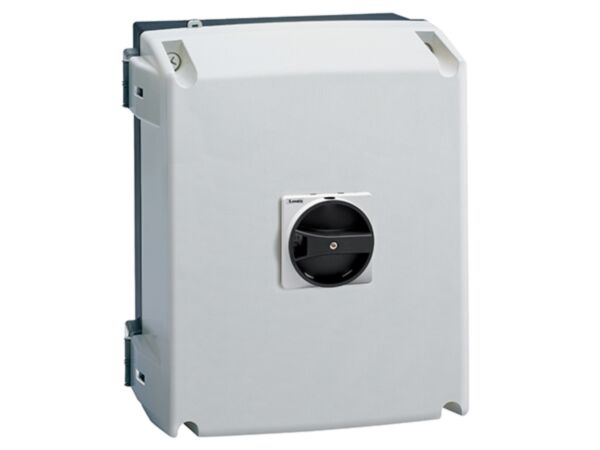

Lovato’s GAZ125T4B is a robust 4‑pole switch disconnector supplied in an enclosed, non‑metallic IP65 housing with a rotating black handle. Rated 125 A Ith for AC applications, it provides reliable on‑load isolation for machinery and panels. Compact yet spacious, the enclosure measures 220×280×170 mm (8.7×11×6.7''), helping simplify installation and ensure dependable operator control.

Engineered for demanding duties, it maintains AC21A and AC22A currents of 125 A up to 690 V, and AC23A ratings of 125 A at 400 V, 100 A at 500 V, and 47 A at 690 V. With Ui 1000 V, Uimp 8 kV and conditional short‑circuit current 50 kA (gG125 fuse), it meets IEC/EN 60947‑3 and 60947‑1 with 30,000 mechanical and electrical cycles.

Key Benefits

• IP65 non‑metallic enclosure safeguards against dust and water ingress.
• 125 A IEC Ith with robust AC21A/AC22A utilisation categories.
• AC23A switching capability up to 125 A at 400 V.
• High dielectric strength: Ui 1000 V, Uimp 8 kV.
• Tested endurance: 30,000 mechanical and AC21A electrical cycles.
• Supports 4–70 mm² conductors; torque 5–6 Nm for secure terminations.
• Conditional short‑circuit withstand 50 kA with gG125 fuse.
• Wide operating temperature −25 to +55 °C; altitude up to 3000 m.

Technical Specification

• Product type designation: GAZ
• Number of poles: 4
• Operating voltage type: AC
• Ith (IEC): 125 A
• Rated insulation voltage Ui (IEC/EN): 1000 V
• Rated impulse withstand voltage Uimp: 8 kV
• Operating current Ie AC21A 400 V: 125 A
• Operating current Ie AC21A 500 V: 125 A
• Operating current Ie AC21A 690 V: 125 A
• Operating current Ie AC22A 400 V: 125 A
• Operating current Ie AC22A 500 V: 125 A
• Operating current Ie AC22A 690 V: 125 A
• Operating current Ie AC23A 400 V: 125 A
• Operating current Ie AC23A 500 V: 100 A
• Operating current Ie AC23A 690 V: 47 A
• Power dissipation per pole (max): 6.3 W
• Rated operational power AC23A 400 V: 55 kW
• Rated operational power AC23A 690 V: 45 kW
• Conditional short-circuit current (rms): 50 kA
• Short-circuit protection fuse: gG125
• Making capacity AC23A 400 V: 1250 A
• Breaking capacity AC23A 400 V: 1000 A
• Mechanical life: 30000 cycles
• Electrical life AC21A: 30000 cycles
• Terminal tightening torque: 5 to 6 Nm
• Conductor section (IEC): 4 to 70 mm²
• Operating temperature: -25 to +55 °C
• Storage temperature: -40 to +70 °C
• Max altitude: 3000 m
• IP degree (frontal): IP65
• IP degree of protection: IP65
• Pollution degree: 3

What’s Included

• Lovato GAZ125T4B enclosed 4‑pole switch disconnector
• Non‑metallic IP65 enclosure with black rotary handle
• Pre‑installed terminals for 4–70 mm² conductors
• Installation and safety information

Applications

• Machine and plant isolation in industrial environments
• Motor and resistive load switching up to AC23A ratings
• Local maintenance isolation on production equipment
• HVAC and pump systems requiring IP65 enclosed switches
• Distribution boards and control panels up to 125 A

Safety note: Install and commission only by qualified personnel. Isolate the supply before work, fit the specified gG125 fuse, and observe the stated torque, conductor sizes, and voltage/current ratings.
