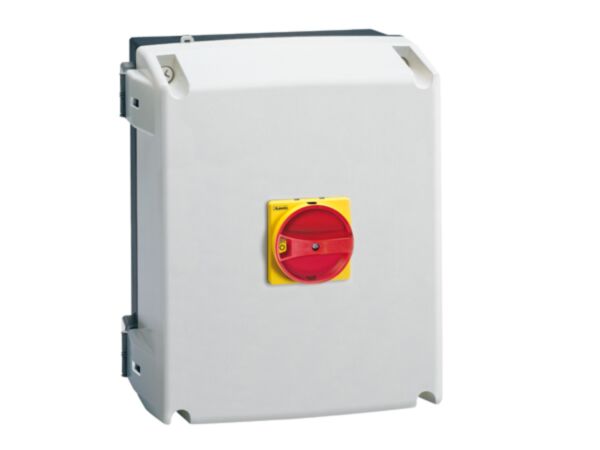

GAZ125T4 - 4P SWITCH 125A-ENCLOS-R/Y HAND.PADLOCK

Why Choose the GAZ125T4?

Lovato GAZ125T4 is a four‑pole switch disconnector in a robust IP65 non‑metallic enclosure, engineered for reliable isolation in AC systems. Delivering 125 A Ith with a rotating red/yellow handle, it suits enclosed installations where clear, safe disconnection is required. Rated Ui 1000 V and Uimp 8 kV, this GAZ series unit combines strong performance with compact 220×280×170 mm dimensions for easy placement.

Tested to IEC/EN 60947-3 and 60947-1, the GAZ125T4 achieves AC21A and AC22A currents of 125 A up to 690 V, with AC23A ratings of 125 A at 400 V, 100 A at 500 V and 47 A at 690 V. With 50 kA conditional short‑circuit rating (gG125 fuse), 30,000 mechanical and electrical cycles, and 4–70 mm² terminals tightened to 5–6 Nm, it delivers dependable service.

Key Benefits

• IP65 non-metallic enclosure resists dust and water jets.
• Four-pole isolation for comprehensive AC circuit disconnection.
• 125 A Ith with robust AC21A/AC22A performance to 690 V.
• AC23A rated: 125 A at 400 V; 100 A at 500 V.
• High dielectric strength: Ui 1000 V, Uimp 8 kV.
• Conditional short-circuit withstand 50 kA with gG125 fuse.
• Long service life: 30,000 mechanical and electrical cycles.
• Clear red/yellow rotary handle for safe, visible operation.

Technical Specification

• Product type designation: GAZ
• Number of poles: 4
• Operating voltage type: AC
• Ith (IEC): 125 A
• Rated insulation voltage Ui (IEC/EN): 1000 V
• Rated impulse withstand voltage Uimp: 8 kV
• Operating current Ie AC21A 400 V: 125 A
• Operating current Ie AC21A 500 V: 125 A
• Operating current Ie AC21A 690 V: 125 A
• Operating current Ie AC22A 400 V: 125 A
• Operating current Ie AC22A 500 V: 125 A
• Operating current Ie AC22A 690 V: 125 A
• Operating current Ie AC23A 400 V: 125 A
• Operating current Ie AC23A 500 V: 100 A
• Operating current Ie AC23A 690 V: 47 A
• Power dissipation per pole (max): 6.3 W
• Rated operational power AC23A 400 V: 55 kW
• Rated operational power AC23A 690 V: 45 kW
• Conditional short-circuit current (rms): 50 kA
• Short-circuit protection fuse: gG125
• Making capacity AC23A 400 V: 1250 A
• Breaking capacity AC23A 400 V: 1000 A
• Mechanical life: 30000 cycles
• Electrical life AC21A: 30000 cycles
• Terminal tightening torque: 5 to 6 Nm
• Conductor section (IEC): 4 to 70 mm²
• Operating temperature: -25 to +55 °C
• Storage temperature: -40 to +70 °C
• Max altitude: 3000 m
• IP degree (frontal): IP65
• IP degree of protection: IP65
• Pollution degree: 3

What’s Included

• Enclosed four-pole switch disconnector (pre-assembled)
• Red/yellow rotary handle fitted to enclosure
• Basic installation and safety instructions
• Protective packaging

Applications

• Main isolator for machinery and industrial control panels
• Local isolation for maintenance and service operations
• Switchboard and distribution board incomer or outgoing isolation
• Motor and mixed-load disconnection in AC systems

Safety note: Installation must be performed by qualified personnel. Isolate supplies before work, use a gG125 fuse where required, tighten terminals to 5–6 Nm, and operate within the stated ratings and environmental limits.
