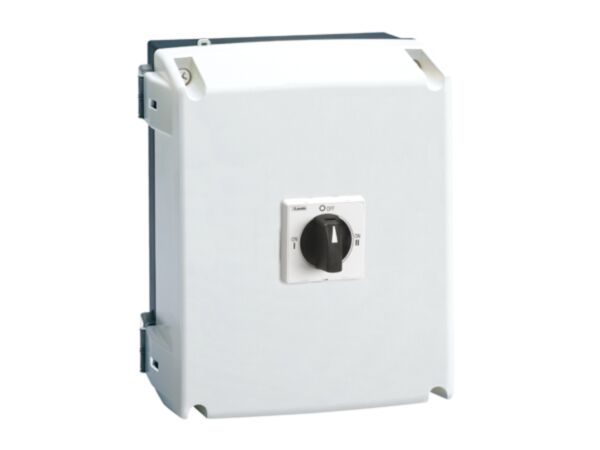

GAZ125ET6 - 3P CHANGEOVER SWITCH 125A ENCLOSED

Why Choose the GAZ125ET6?

Lovato GAZ125ET6 is a three-pole line changeover switch I-0-II supplied in a UL/CSA Type 4/4X non-metallic enclosure for dependable source selection. Rated 125 A with IP65 frontal protection, this compact assembly measures 280 x 220 x 172 mm. With Ui 1000 V and Uimp 8 kV, GAZ125ET6 delivers robust performance for AC applications requiring secure changeover and clear switching positions.

Designed to IEC/EN 60947-3, IEC/EN 60947-1 and UL98 and CSA C22.2 n°4, it offers AC21A and AC22A currents up to 125 A at 690 V, and AC23A performance of 125 A at 400 V. Rated operational power reaches 55 kW at 400 V. With 50 kA conditional short-circuit current (gG125 fuse), 30,000 mechanical/electrical cycles, -25 to +55 °C operation and 4–70 mm² conductors, installation is straightforward.

Key Benefits

• Three-pole I-0-II changeover for reliable source selection.
• 125 A rating across AC21A and AC22A duty up to 690 V.
• AC23A performance: 125 A at 400 V, 55 kW rated power.
• IP65 frontal protection and UL/CSA Type 4/4X non-metallic enclosure.
• High dielectric strength: Ui 1000 V, Uimp 8 kV.
• Robust short-circuit withstand, 50 kA with gG125 fuse protection.
• Long service life: 30,000 mechanical and electrical cycles.

Technical Specification

• Product type designation: GAZ
• Number of poles: 3
• Operating voltage type: AC
• Ith (IEC): 125 A
• Rated insulation voltage Ui (IEC/EN): 1000 V
• Rated impulse withstand voltage Uimp: 8 kV
• Operating current Ie AC21A 400 V: 125 A
• Operating current Ie AC21A 500 V: 125 A
• Operating current Ie AC21A 690 V: 125 A
• Operating current Ie AC22A 400 V: 125 A
• Operating current Ie AC22A 500 V: 125 A
• Operating current Ie AC22A 690 V: 125 A
• Operating current Ie AC23A 400 V: 125 A
• Operating current Ie AC23A 500 V: 100 A
• Operating current Ie AC23A 690 V: 47 A
• Power dissipation per pole (max): 6.3 W
• Rated operational power AC23A 400 V: 55 kW
• Rated operational power AC23A 690 V: 45 kW
• Conditional short-circuit current (rms): 50 kA
• Short-circuit protection fuse: gG125
• Making capacity AC23A 400 V: 1250 A
• Breaking capacity AC23A 400 V: 1000 A
• Mechanical life: 30000 cycles
• Electrical life AC21A: 30000 cycles
• Terminal tightening torque: 5 to 6 Nm
• Conductor section (IEC): 4 to 70 mm²
• Operating temperature: -25 to +55 °C
• Storage temperature: -40 to +70 °C
• Max altitude: 3000 m
• IP degree (frontal): IP65
• IP degree of protection: IP65
• Pollution degree: 3

What’s Included

• Three-pole changeover switch pre-installed in non-metallic enclosure
• Front-mounted I-0-II operator handle
• Mounting hardware and fixing screws
• Installation and safety instructions

Applications

• Mains-to-generator changeover for industrial and commercial panels
• Source selection for AC distribution up to 125 A
• Process equipment requiring secure I-0-II line switching
• Enclosed switchgear for environments requiring IP65 frontal protection
• Systems designed to IEC/EN 60947-3 standards

Safety note: Installation and commissioning must be performed by a qualified electrician. Isolate all supplies before work, observe specified torque and conductor sizes, protect with the gG125 fuse, and operate within the stated ratings and temperatures.
