GAZ125B - 3P SWITCH 125A-ENCLOS-BLACK HAND.PADLOCK

Why Choose the GAZ125B?

Lovato’s GAZ125B is an enclosed switch disconnector designed for dependable on‑load isolation. This three‑pole, 125 A unit is housed in a robust IP65 non‑metallic enclosure with a rotating black handle for clear, positive operation. Compact yet spacious at 220×280×170 mm (8.7×11×6.7''), the GAZ125B suits industrial panels and machinery isolation points where safe manual switching and environmental protection are essential.

Engineered for resilience, it offers Ui 1000 V and Uimp 8 kV, with AC21A/AC22A operational currents of 125 A up to 690 V. AC23A duty is 125 A at 400 V, 100 A at 500 V, and 47 A at 690 V. With 50 kA conditional short‑circuit current (gG125 fuse), 30,000-cycle mechanical and electrical life, −25 to +55 °C operation, and IEC/EN 60947-3 conformity, it’s built for demanding sites.

Key Benefits

• IP65 non-metallic enclosure resists dust and water jets.
• 3-pole, 125 A isolation for reliable on-load switching.
• High insulation and impulse withstand: Ui 1000 V, Uimp 8 kV.
• Robust duty ratings across AC21A, AC22A, and AC23A categories.
• 50 kA conditional short-circuit rating with gG125 fuse coordination.
• Long service life: 30,000 mechanical and electrical cycles.
• Clear, positive operation via rotating black handle.

Technical Specification

• Product type designation: GAZ
• Number of poles: 3
• Operating voltage type: AC
• Ith (IEC): 125 A
• Rated insulation voltage Ui (IEC/EN): 1000 V
• Rated impulse withstand voltage Uimp: 8 kV
• Operating current Ie AC21A 400 V: 125 A
• Operating current Ie AC21A 500 V: 125 A
• Operating current Ie AC21A 690 V: 125 A
• Operating current Ie AC22A 400 V: 125 A
• Operating current Ie AC22A 500 V: 125 A
• Operating current Ie AC22A 690 V: 125 A
• Operating current Ie AC23A 400 V: 125 A
• Operating current Ie AC23A 500 V: 100 A
• Operating current Ie AC23A 690 V: 47 A
• Power dissipation per pole (max): 6.3 W
• Rated operational power AC23A 400 V: 55 kW
• Rated operational power AC23A 690 V: 45 kW
• Conditional short-circuit current (rms): 50 kA
• Short-circuit protection fuse: gG125
• Making capacity AC23A 400 V: 1250 A
• Breaking capacity AC23A 400 V: 1000 A
• Mechanical life: 30000 cycles
• Electrical life AC21A: 30000 cycles
• Terminal tightening torque: 5 to 6 Nm
• Conductor section (IEC): 4 to 70 mm²
• Operating temperature: -25 to +55 °C
• Storage temperature: -40 to +70 °C
• Max altitude: 3000 m
• IP degree (frontal): IP65
• IP degree of protection: IP65
• Pollution degree: 3

What’s Included

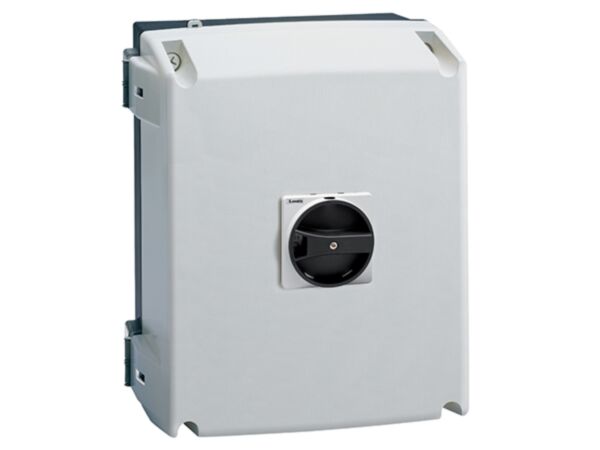

• Lovato GAZ125B enclosed three-pole switch disconnector (125 A)
• Rotating black handle pre-installed on IP65 enclosure
• Manufacturer datasheet (downloadable)

Applications

• Safe isolation for industrial machinery and control panels.
• On-load switching of resistive and mixed AC loads (AC21A/AC22A).
• Switching duty for motor loads within AC23A ratings.
• Installations requiring IP65 protection against dust and water jets.

Safety note: Installation and operation must be performed by qualified personnel. Always isolate the supply before work, observe IEC/EN 60947 requirements, and protect with the specified gG125 fuse to achieve the stated conditional short-circuit rating.
