GAZ100CT4B - 4P SWITCH 100A-ENCLOS BLACK HAND.PADLOCK

Why Choose the GAZ100CT4B?

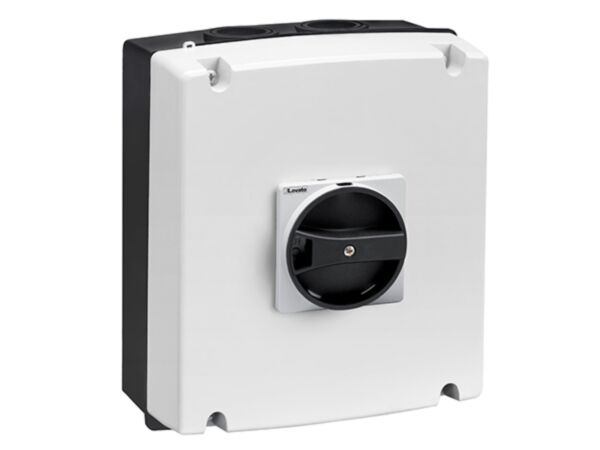

Designed for dependable isolation, the Lovato GAZ100CT4B switch disconnector delivers secure on-load switching in a rugged IP65 non-metallic enclosure. This four-pole, enclosed unit features a rotating black handle and a 100 A Ith rating for AC applications. Compact dimensions of 175 x 210 x 99 mm simplify panel or site mounting while providing ample internal space for terminations, making it ideal for industrial power control and maintenance isolation points.

Built to IEC/EN 60947-3 and 60947-1, the GAZ series offers Ui 1000 V and Uimp 8 kV, with AC21/AC22 ratings to 100 A and AC23A up to 47 A at 690 V. It withstands conditional short-circuit currents of 50 kA (gG100 fuse) and achieves 30,000 mechanical and electrical cycles. Wide -25 to +55 °C operating range, IP65 protection and 4 to 70 mm² terminals support demanding UK industrial environments.

Key Benefits

• IP65 non-metallic enclosure offers reliable protection against dust and water jets.
• Four-pole design enables full circuit isolation in three-phase applications.
• 100 A Ith with AC21/AC22 ratings to 100 A up to 690 V.
• AC23A performance: 55 kW at 400 V; 47 A at 690 V.
• High conditional short-circuit withstand of 50 kA with gG100 fuse.
• Durable mechanism: 30,000 mechanical and AC21A electrical life cycles.
• Wide temperature range −25 to +55 °C and IP65 front protection.

Technical Specification

• Product type designation: GAZ
• Number of poles: 4
• Operating voltage type: AC
• Ith (IEC): 100 A
• Rated insulation voltage Ui (IEC/EN): 1000 V
• Rated impulse withstand voltage Uimp: 8 kV
• Operating current Ie AC21A 400 V: 100 A
• Operating current Ie AC21A 500 V: 100 A
• Operating current Ie AC21A 690 V: 100 A
• Operating current Ie AC22A 400 V: 100 A
• Operating current Ie AC22A 500 V: 100 A
• Operating current Ie AC22A 690 V: 100 A
• Operating current Ie AC23A 400 V: 100 A
• Operating current Ie AC23A 500 V: 80 A
• Operating current Ie AC23A 690 V: 47 A
• Power dissipation per pole (max): 4 W
• Rated operational power AC23A 400 V: 55 kW
• Rated operational power AC23A 690 V: 45 kW
• Conditional short-circuit current (rms): 50 kA
• Short-circuit protection fuse: gG100
• Making capacity AC23A 400 V: 1000 A
• Breaking capacity AC23A 400 V: 800 A
• Mechanical life: 30000 cycles
• Electrical life AC21A: 30000 cycles
• Terminal tightening torque: 5 to 6 Nm
• Conductor section (IEC): 4 to 70 mm²
• Operating temperature: -25 to +55 °C
• Storage temperature: -40 to +70 °C
• Max altitude: 3000 m
• IP degree (frontal): IP65
• IP degree of protection: IP65
• Pollution degree: 3

What’s Included

• Lovato GAZ series IP65 plastic enclosure with 4-pole switch disconnector, 100 A
• Fitted rotating black operating handle
• Installation and safety instructions
• Manufacturer compliance information

Applications

• Main isolation in industrial distribution and control panels.
• On-load disconnection of motor and mixed resistive/inductive loads.
• Local isolation points for machinery during maintenance procedures.
• HVAC, pumping and process equipment AC isolation up to 690 V.
• Construction and utilities site power switching in harsh environments.

Safety note: Installation must be performed by qualified personnel. Isolate supply, verify absence of voltage, and observe stated conductor sizes (4 to 70 mm²), 5–6 Nm terminal torque, and gG100 short-circuit protection.
