GAZ100CT4 - 4P SWITCH 100A-ENCLOS-R/Y HAND.PADLOCK

Why Choose the GAZ100CT4?

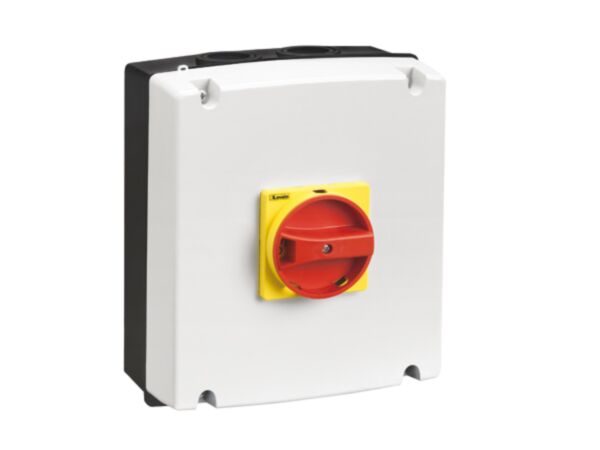

The Lovato GAZ100CT4 is a four-pole switch disconnector supplied in a tough IP65 non-metallic enclosure for dependable isolation in industrial and commercial installations. With a rotating red/yellow handle and 100 A AC capability, it delivers clear, safe switching of supplies. Conforming to IEC/EN 60947-3 and 60947-1, SKU GAZ100CT4 provides reliable performance where durable enclosed isolators are required.

Engineered for demanding duty, the GAZ device offers Ui 1000 V and Uimp 8 kV, with AC21A/AC22A ratings up to 100 A and AC23A motor duty up to 100 A at 400 V (80 A at 500 V, 47 A at 690 V). Mechanical and AC21A electrical life reach 30,000 cycles. The enclosure measures 175×210×99 mm and operates from −25 to +55 °C with IP65 protection.

Key Benefits

• IP65 non-metallic enclosure resists dust and water jets for reliable isolation.
• Four-pole configuration enables comprehensive multi-phase AC disconnection.
• 100 A Ith; AC21A/AC22A ratings up to 100 A at 690 V.
• AC23A motor duty: 100 A at 400 V, 80 A at 500 V, 47 A at 690 V.
• High dielectric strength: Ui 1000 V and Uimp 8 kV.
• Robust short-circuit performance with gG100 fuse and 50 kA conditional rating.
• Long service life: 30,000 mechanical and AC21A electrical cycles.
• Wide operating range: −25 to +55 °C; altitude up to 3000 m.

Technical Specification

• Product type designation: GAZ
• Number of poles: 4
• Operating voltage type: AC
• Ith (IEC): 100 A
• Rated insulation voltage Ui (IEC/EN): 1000 V
• Rated impulse withstand voltage Uimp: 8 kV
• Operating current Ie AC21A 400 V: 100 A
• Operating current Ie AC21A 500 V: 100 A
• Operating current Ie AC21A 690 V: 100 A
• Operating current Ie AC22A 400 V: 100 A
• Operating current Ie AC22A 500 V: 100 A
• Operating current Ie AC22A 690 V: 100 A
• Operating current Ie AC23A 400 V: 100 A
• Operating current Ie AC23A 500 V: 80 A
• Operating current Ie AC23A 690 V: 47 A
• Power dissipation per pole (max): 4 W
• Rated operational power AC23A 400 V: 55 kW
• Rated operational power AC23A 690 V: 45 kW
• Conditional short-circuit current (rms): 50 kA
• Short-circuit protection fuse: gG100
• Making capacity AC23A 400 V: 1000 A
• Breaking capacity AC23A 400 V: 800 A
• Mechanical life: 30000 cycles
• Electrical life AC21A: 30000 cycles
• Terminal tightening torque: 5 to 6 Nm
• Conductor section (IEC): 4 to 70 mm²
• Operating temperature: -25 to +55 °C
• Storage temperature: -40 to +70 °C
• Max altitude: 3000 m
• IP degree (frontal): IP65
• IP degree of protection: IP65
• Pollution degree: 3

What’s Included

• Lovato GAZ100CT4 enclosed four-pole switch disconnector
• Rotating red/yellow handle pre-fitted to enclosure

Applications

• Machine and process isolation in industrial plants and workshops
• Local isolation for control panels and distribution equipment
• HVAC systems, pumps, and fans requiring on-load disconnection
• Areas needing IP65-protected enclosures against dust and water jets

Safety note: Installation must be performed by qualified personnel. Isolate power before work, use the specified gG100 short-circuit protection, and ensure the enclosure is properly sealed to maintain IP65.
