GAZ100C - 3P SWITCH 100A-ENCLOS-R/Y HAND.PADLOCK

Why Choose the GAZ100C?

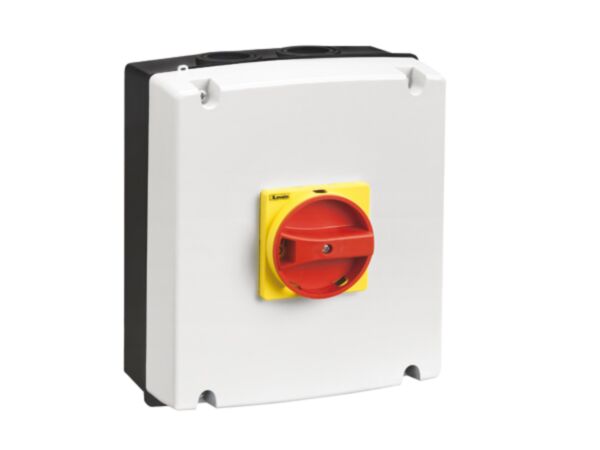

Lovato GAZ100C is an enclosed switch disconnector engineered for reliable isolation in demanding industrial settings. This three-pole AC unit combines an IP65 non‑metallic enclosure with a rotating red/yellow handle for clear operation. Rated at 100 A Ith, it fits neatly into panels with compact 175x210x99 mm dimensions. SKU GAZ100C offers a robust, easy-to-install solution for safe on/off control.

Backed by IEC/EN 60947-3 and 60947-1, the GAZ100C delivers strong performance across duty categories. It provides Ui 1000 V and Uimp 8 kV, with AC23A ratings of 100 A at 400 V, 80 A at 500 V and 47 A at 690 V. A mechanical and electrical life of 30,000 cycles ensures dependable service within -25 to +55 °C and up to 3000 m altitude.

Key Benefits

• IP65 enclosure resists dust ingress and low-pressure water jets.
• Three-pole AC isolation compliant with IEC/EN 60947-3.
• 100 A Ith with consistent AC21/AC22 performance up to 690 V.
• Proven AC23A ratings: 100 A at 400 V, 80/47 A at higher voltages.
• High dielectric strength: Ui 1000 V and Uimp 8 kV.
• Durable design with 30,000 mechanical and electrical cycles.
• Compact 175x210x99 mm footprint for easy panel integration.

Technical Specification

• Product type designation: GAZ
• Number of poles: 3
• Operating voltage type: AC
• Ith (IEC): 100 A
• Rated insulation voltage Ui (IEC/EN): 1000 V
• Rated impulse withstand voltage Uimp: 8 kV
• Operating current Ie AC21A 400 V: 100 A
• Operating current Ie AC21A 500 V: 100 A
• Operating current Ie AC21A 690 V: 100 A
• Operating current Ie AC22A 400 V: 100 A
• Operating current Ie AC22A 500 V: 100 A
• Operating current Ie AC22A 690 V: 100 A
• Operating current Ie AC23A 400 V: 100 A
• Operating current Ie AC23A 500 V: 80 A
• Operating current Ie AC23A 690 V: 47 A
• Power dissipation per pole (max): 4 W
• Rated operational power AC23A 400 V: 55 kW
• Rated operational power AC23A 690 V: 45 kW
• Conditional short-circuit current (rms): 50 kA
• Short-circuit protection fuse: gG100
• Making capacity AC23A 400 V: 1000 A
• Breaking capacity AC23A 400 V: 800 A
• Mechanical life: 30000 cycles
• Electrical life AC21A: 30000 cycles
• Terminal tightening torque: 5 to 6 Nm
• Conductor section (IEC): 4 to 70 mm²
• Operating temperature: -25 to +55 °C
• Storage temperature: -40 to +70 °C
• Max altitude: 3000 m
• IP degree (frontal): IP65
• IP degree of protection: IP65
• Pollution degree: 3

What’s Included

• IP65 plastic enclosure switch disconnector (three-pole)
• Rotating red/yellow handle fitted to enclosure
• Installation instructions
• Mounting screws

Applications

• Main isolation for machinery and equipment
• Local isolator for industrial panels and distribution boards
• Switching of resistive and mixed inductive loads per AC21/AC22
• On-site plant, HVAC and pump systems requiring secure disconnection

Safety note: Installation must be performed by a qualified electrician. Isolate all supplies before work, use suitable gG100 upstream protection, and observe the stated temperature, altitude, conductor size and torque limits.
