GAZ080CB - 3P SWITCH 80A-ENCLOS-BLACK HAND.PADLOCK

Why Choose the GAZ080CB?

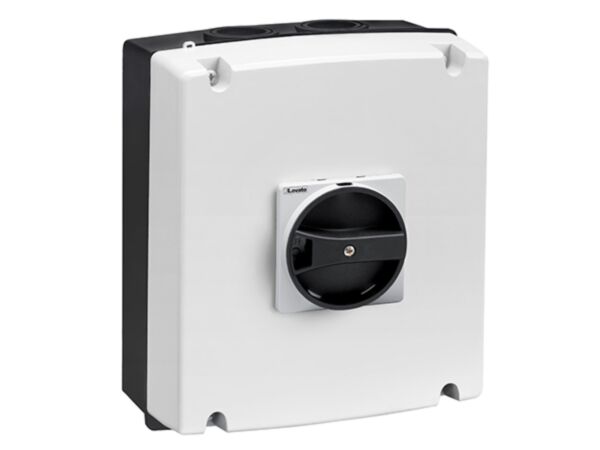

Lovato’s GAZ080CB enclosed switch disconnector delivers dependable isolation for AC circuits. The SKU GAZ080CB combines a three-pole, 80 A device with an IP65 non-metallic enclosure and a rotating black handle. Designed for enclosed installation, this compact unit (175×210×99 mm) provides positive switching for maintenance lock-off across control panels and distribution equipment.

Built to IEC/EN 60947-3 and 60947-1, it offers Ui 1000 V and Uimp 8 kV performance, with AC-21A/AC-22A currents to 80 A up to 690 V, and AC-23A up to 80 A at 400 V (63 A at 500 V, 47 A at 690 V). Terminals accept 4–70 mm² conductors, tightened to 5–6 Nm. Operating temperature is −25 to +55 °C; mechanical and electrical life are 30,000 cycles.

Key Benefits

• IP65-rated enclosure for robust environmental protection.
• Three-pole, 80 A switching for reliable AC isolation.
• Rotating black handle ensures clear, positive operation.
• High dielectric strength: Ui 1000 V, Uimp 8 kV.
• Suitable AC-23A making and breaking at 400 V up to 80 A.
• Wide wiring range 4–70 mm² with 5–6 Nm tightening torque.
• Long service life of 30,000 mechanical and electrical cycles.

Technical Specification

• Product type designation: GAZ
• Number of poles: 3
• Operating voltage type: AC
• Ith (IEC): 80 A
• Rated insulation voltage Ui (IEC/EN): 1000 V
• Rated impulse withstand voltage Uimp: 8 kV
• Operating current Ie AC21A 400 V: 80 A
• Operating current Ie AC21A 500 V: 80 A
• Operating current Ie AC21A 690 V: 80 A
• Operating current Ie AC22A 400 V: 80 A
• Operating current Ie AC22A 500 V: 80 A
• Operating current Ie AC22A 690 V: 80 A
• Operating current Ie AC23A 400 V: 80 A
• Operating current Ie AC23A 500 V: 63 A
• Operating current Ie AC23A 690 V: 47 A
• Power dissipation per pole (max): 2.6 W
• Rated operational power AC23A 400 V: 45 kW
• Rated operational power AC23A 690 V: 45 kW
• Conditional short-circuit current (rms): 50 kA
• Short-circuit protection fuse: gG80
• Making capacity AC23A 400 V: 800 A
• Breaking capacity AC23A 400 V: 640 A
• Mechanical life: 30000 cycles
• Electrical life AC21A: 30000 cycles
• Terminal tightening torque: 5 to 6 Nm
• Conductor section (IEC): 4 to 70 mm²
• Operating temperature: -25 to +55 °C
• Storage temperature: -40 to +70 °C
• Max altitude: 3000 m
• IP degree (frontal): IP65
• IP degree of protection: IP65
• Pollution degree: 3

What’s Included

• Pre-assembled 3-pole switch disconnector in IP65 non-metallic enclosure
• Rotating black handle fitted to enclosure
• Manufacturer product documentation/datasheet
• Protective packaging for transit

Applications

• Main isolator for AC circuits in control panels
• Machinery and motor isolation under load (AC-23A)
• Distribution switch disconnection and maintenance lock-off
• Installations requiring IP65-protected enclosed switchgear

Safety note: Installation and commissioning must be performed by a qualified electrician. Isolate all power sources before work, observe the specified gG80 short-circuit protection, and tighten terminals to 5–6 Nm within the stated conductor sizes.
