GAZ080C - 3P SWITCH 80A-ENCLOS-R/Y HAND.PADLOCK

Why Choose the GAZ080C?

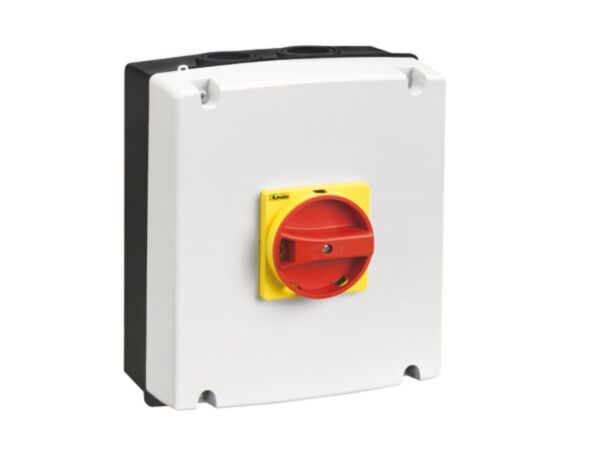

Lovato's GAZ080C is a three-pole switch disconnector supplied in an IP65 non-metallic enclosure with a rotating red/yellow handle. Rated Ith 80 A and designed for AC operation, this enclosed isolator provides clear, safe on-load disconnection. Compact at 175x210x99 mm (6.9x8.3x3.9''), the GAZ080C suits panels and plant where reliable isolation and visibility are essential.

Engineered to IEC/EN 60947-3 and 60947-1, it offers Ui 1000 V and Uimp 8 kV. Current ratings include AC21A/AC22A 80 A up to 690 V and AC23A 80 A (400 V), 63 A (500 V), 47 A (690 V). With conditional short-circuit current 50 kA (gG80 fuse), 30,000 mechanical/electrical cycles, and terminals for 4 to 70 mm² at 5 to 6 Nm, it performs from -25 to +55 °C.

Key Benefits

• IP65 plastic enclosure with red/yellow rotary handle for clear isolation
• 80 A Ith with AC duty across 400–690 V applications
• Ui 1000 V and Uimp 8 kV for strong insulation performance
• AC23A ratings to 80 A at 400 V for on-load switching
• Conditional short-circuit withstand 50 kA with gG80 fuse
• Durable design with 30,000 mechanical and electrical cycles
• Wide cable range 4 to 70 mm²; terminals torque 5 to 6 Nm
• Compact 175x210x99 mm footprint for space-constrained panels

Technical Specification

• Product type designation: GAZ
• Number of poles: 3
• Operating voltage type: AC
• Ith (IEC): 80 A
• Rated insulation voltage Ui (IEC/EN): 1000 V
• Rated impulse withstand voltage Uimp: 8 kV
• Operating current Ie AC21A 400 V: 80 A
• Operating current Ie AC21A 500 V: 80 A
• Operating current Ie AC21A 690 V: 80 A
• Operating current Ie AC22A 400 V: 80 A
• Operating current Ie AC22A 500 V: 80 A
• Operating current Ie AC22A 690 V: 80 A
• Operating current Ie AC23A 400 V: 80 A
• Operating current Ie AC23A 500 V: 63 A
• Operating current Ie AC23A 690 V: 47 A
• Power dissipation per pole (max): 2.6 W
• Rated operational power AC23A 400 V: 45 kW
• Rated operational power AC23A 690 V: 45 kW
• Conditional short-circuit current (rms): 50 kA
• Short-circuit protection fuse: gG80
• Making capacity AC23A 400 V: 800 A
• Breaking capacity AC23A 400 V: 640 A
• Mechanical life: 30000 cycles
• Electrical life AC21A: 30000 cycles
• Terminal tightening torque: 5 to 6 Nm
• Conductor section (IEC): 4 to 70 mm²
• Operating temperature: -25 to +55 °C
• Storage temperature: -40 to +70 °C
• Max altitude: 3000 m
• IP degree (frontal): IP65
• IP degree of protection: IP65
• Pollution degree: 3

What’s Included

• Enclosed 3-pole switch disconnector (GAZ080C)
• Rotating red/yellow handle, pre-fitted
• IP65 non-metallic enclosure

Applications

• Machinery main isolator and maintenance lock-off
• Motor and mixed-load isolation within stated AC ratings
• Local isolation points in harsh, dusty or wet areas (IP65)
• Control panels and distribution switchboards

Safety note: Install and commission only by qualified personnel. Isolate the supply before work, use appropriate gG80 fuse coordination, and maintain the IP65 enclosure integrity for safe operation.
