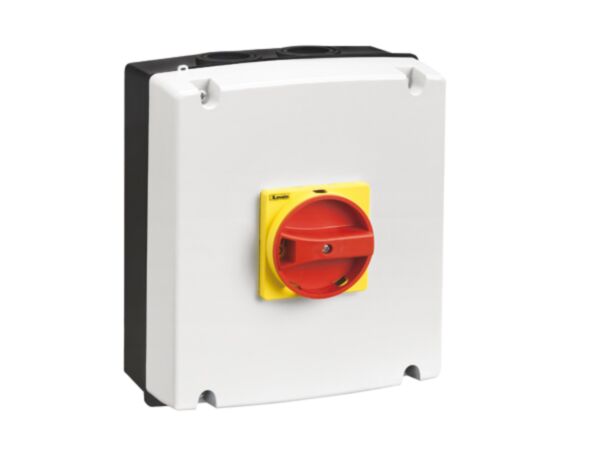

GAZ063SAT4 - 4P SWITCH 63A-ENCLOS-R/Y HAND.PADLOCK

Why Choose the GAZ063SAT4?

Engineered for dependable isolation, the Lovato GAZ063SAT4 enclosed switch disconnector delivers 4‑pole AC switching at 63 A. Housed in a robust IP65 non‑metallic enclosure with a rotating red/yellow handle, it safeguards operations in demanding environments. Compact yet practical (175×210×99 mm), SKU GAZ063SAT4 simplifies installation and provides positive actuation for clear on/off control.

Designed to IEC/EN 60947‑3 and 60947‑1, it offers Ui 1000 V and Uimp 8 kV, with AC21A 63 A up to 690 V and AC23A 25–45 A ratings. Conditional short‑circuit current is 10 kA with gG63 fuse. Durable for 100,000 mechanical cycles, it supports 0.75–16 mm² conductors and 1.8–2 Nm tightening torque, operating from −25 to +55 °C.

Key Benefits

• IP65 non‑metallic enclosure resists dust and water ingress.
• 4‑pole AC switching enables comprehensive multi‑circuit isolation.
• 63 A Ith with strong AC21A/AC22A/AC23A performance across voltages.
• High insulation: Ui 1000 V and Uimp 8 kV.
• Conditional short‑circuit withstand 10 kA with gG63 fuse.
• Long life: 100,000 mechanical and 15,000 electrical cycles.
• Wide cable range 0.75–16 mm² with 1.8–2 Nm torque.
• Rotating red/yellow handle for intuitive operation and status.

Technical Specification

• Product type designation: GAZ
• Number of poles: 4
• Operating voltage type: AC
• Ith (IEC): 63 A
• Rated insulation voltage Ui (IEC/EN): 1000 V
• Rated impulse withstand voltage Uimp: 8 kV
• Operating current Ie AC21A 400 V: 63 A
• Operating current Ie AC21A 500 V: 63 A
• Operating current Ie AC21A 690 V: 63 A
• Operating current Ie AC22A 400 V: 63 A
• Operating current Ie AC22A 500 V: 45 A
• Operating current Ie AC22A 690 V: 45 A
• Operating current Ie AC23A 400 V: 45 A
• Operating current Ie AC23A 500 V: 25 A
• Operating current Ie AC23A 690 V: 25 A
• Power dissipation per pole (max): 2.9 W
• Rated operational power AC23A 400 V: 22 kW
• Rated operational power AC23A 690 V: 22 kW
• Conditional short-circuit current (rms): 10 kA
• Short-circuit protection fuse: gG63
• Making capacity AC23A 400 V: 450 A
• Breaking capacity AC23A 400 V: 360 A
• Mechanical life: 100000 cycles
• Electrical life AC21A: 15000 cycles
• Terminal tightening torque: 1.8 to 2 Nm
• Conductor section (IEC): 0.75 to 16 mm²
• Operating temperature: -25 to +55 °C
• Storage temperature: -40 to +70 °C
• Max altitude: 3000 m
• IP degree (frontal): IP65
• IP degree of protection: IP65
• Pollution degree: 3

What’s Included

• Lovato GAZ063SAT4 enclosed 4-pole switch disconnector
• Pre-assembled IP65 non-metallic enclosure with red/yellow handle
• Installation and safety information

Applications

• Main isolation for industrial control panels and switchboards
• Local maintenance disconnection for multi‑pole AC circuits
• Safe on/off isolation in power distribution assemblies
• Use in dusty or damp areas requiring IP65 enclosures

Safety note: Installation and commissioning should be performed by qualified personnel. Isolate all power sources before work, use the specified gG63 fuse, apply 1.8–2 Nm terminal torque, and follow applicable IEC/EN standards.
