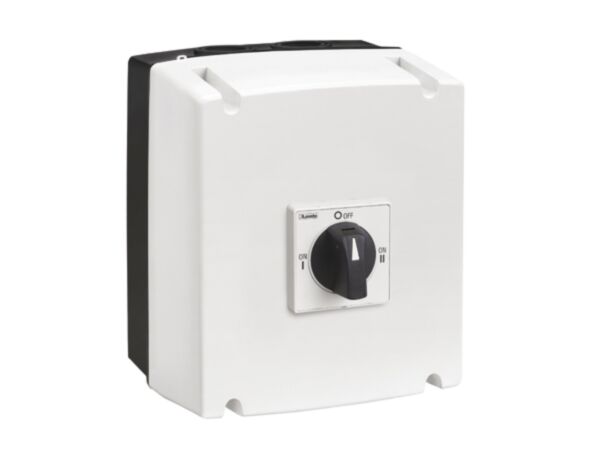

GAZ063SAET8 - 4P CHANGEOVER SWITCH 63A ENCLOSED

Why Choose the GAZ063SAET8?

Engineered by Lovato, the GAZ063SAET8 is a four‑pole I‑0‑II line changeover switch in a UL/CSA Type 4/4X non‑metallic enclosure rated 63 A. With compact 175x210x149mm dimensions and IP65 frontal protection, it suits demanding environments. Rated insulation voltage Ui 1000 V and impulse withstand Uimp 8 kV ensure robust performance for supply switching across AC networks.

Certified to IEC/EN 60947-3, IEC/EN 60947-1 and UL 508/CSA, it offers Ie 63 A AC21A at 400–690 V, AC22A 63 A at 400 V and 45 A at 500–690 V, and AC23A 45 A at 400 V and 25 A at 500–690 V. Rated 22 kW AC23A at 400/690 V, with 10 kA conditional short‑circuit (gG63 fuse). Mechanical life 100000 cycles and IP65 simplify dependable installation.

Key Benefits

• Four‑pole I‑0‑II changeover switching for dependable supply transfer.
• UL/CSA Type 4/4X non‑metallic enclosure with IP65 frontal protection.
• Rated insulation Ui 1000 V and impulse withstand Uimp 8 kV.
• Strong AC21A, AC22A and AC23A currents up to 63 A.
• 22 kW AC23A performance at 400 V and 690 V.
• 10 kA conditional short‑circuit withstand with gG63 fuse protection.
• Compact 175x210x149mm design with 0.75–16 mm² terminals.

Technical Specification

• Product type designation: GAZ
• Number of poles: 4
• Operating voltage type: AC
• Ith (IEC): 63 A
• Rated insulation voltage Ui (IEC/EN): 1000 V
• Rated impulse withstand voltage Uimp: 8 kV
• Operating current Ie AC21A 400 V: 63 A
• Operating current Ie AC21A 500 V: 63 A
• Operating current Ie AC21A 690 V: 63 A
• Operating current Ie AC22A 400 V: 63 A
• Operating current Ie AC22A 500 V: 45 A
• Operating current Ie AC22A 690 V: 45 A
• Operating current Ie AC23A 400 V: 45 A
• Operating current Ie AC23A 500 V: 25 A
• Operating current Ie AC23A 690 V: 25 A
• Power dissipation per pole (max): 2.9 W
• Rated operational power AC23A 400 V: 22 kW
• Rated operational power AC23A 690 V: 22 kW
• Conditional short-circuit current (rms): 10 kA
• Short-circuit protection fuse: gG63
• Making capacity AC23A 400 V: 450 A
• Breaking capacity AC23A 400 V: 360 A
• Mechanical life: 100000 cycles
• Electrical life AC21A: 15000 cycles
• Terminal tightening torque: 1.8 to 2 Nm
• Conductor section (IEC): 0.75 to 16 mm²
• Operating temperature: -25 to +55 °C
• Storage temperature: -40 to +70 °C
• Max altitude: 3000 m
• IP degree (frontal): IP65
• IP degree of protection: IP65
• Pollution degree: 3

What’s Included

• Lovato GAZ063SAET8 four‑pole I‑0‑II changeover switch (enclosed)
• Non‑metallic enclosure as specified
• Installation and safety information

Applications

• AC supply changeover and transfer switching in distribution panels
• Four‑pole line switching in industrial control assemblies
• Installations requiring IP65 frontal protection
• Projects specifying UL/CSA Type 4/4X non‑metallic enclosures
• Equipment needing robust AC23A switching up to 22 kW

Safety note: Install and commission only by qualified personnel. Observe IEC/EN and UL/CSA requirements, use the specified gG63 fuse, and ensure operation within the stated ratings and environmental limits.
