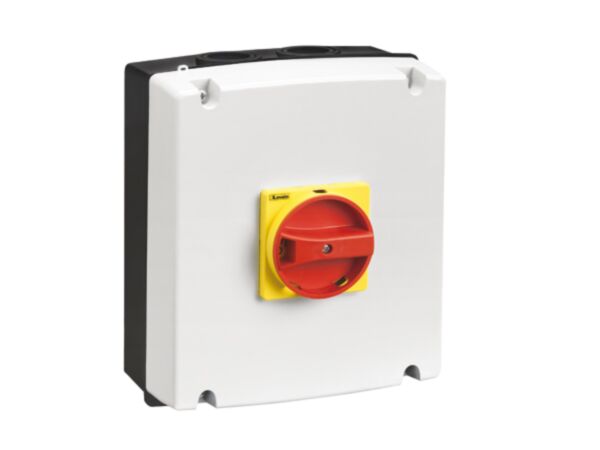

GAZ063SA - 3P SWITCH 63A-ENCLOS-R/Y HAND.PADLOCK

Why Choose the GAZ063SA?

Lovato GAZ063SA is a robust switch disconnector in an IP65 non‑metallic enclosure, designed for reliable three‑pole isolation of AC circuits. With a rotating red/yellow handle and 63 A Ith rating, this enclosed unit provides clear operation and dependable performance. Compact dimensions of 175x210x99 mm suit control panels and machinery, delivering safe on‑load switching for industrial environments while maintaining high ingress protection and straightforward installation.

Engineered to IEC/EN 60947-3 and 60947-1, the GAZ series device offers Ui 1000 V, Uimp 8 kV, and conditional short‑circuit current 10 kA with gG63 fuse protection. Rated up to AC21A 63 A and AC23A 45/25 A depending on voltage, it delivers 100000 mechanical cycles. IP65 frontal protection, −25 to +55 °C operation, and 0.75–16 mm² terminals (1.8–2 Nm) support dependable service up to 3000 m altitude.

Key Benefits

• IP65 non-metallic enclosure resists dust and water for tough sites.
• Rotating red/yellow handle offers clear status and safe operation.
• 63 A Ith accommodates demanding AC loads and switching duties.
• Three-pole isolation suits three-phase equipment and control panels.
• High Uimp 8 kV enhances surge withstand and reliability.
• Proven durability with 100000 mechanical and 15000 electrical cycles.
• Standards compliant to IEC/EN 60947-3 and 60947-1.

Technical Specification

• Product type designation: GAZ
• Number of poles: 3
• Operating voltage type: AC
• Ith (IEC): 63 A
• Rated insulation voltage Ui (IEC/EN): 1000 V
• Rated impulse withstand voltage Uimp: 8 kV
• Operating current Ie AC21A 400 V: 63 A
• Operating current Ie AC21A 500 V: 63 A
• Operating current Ie AC21A 690 V: 63 A
• Operating current Ie AC22A 400 V: 63 A
• Operating current Ie AC22A 500 V: 45 A
• Operating current Ie AC22A 690 V: 45 A
• Operating current Ie AC23A 400 V: 45 A
• Operating current Ie AC23A 500 V: 25 A
• Operating current Ie AC23A 690 V: 25 A
• Power dissipation per pole (max): 2.9 W
• Rated operational power AC23A 400 V: 22 kW
• Rated operational power AC23A 690 V: 22 kW
• Conditional short-circuit current (rms): 10 kA
• Short-circuit protection fuse: gG63
• Making capacity AC23A 400 V: 450 A
• Breaking capacity AC23A 400 V: 360 A
• Mechanical life: 100000 cycles
• Electrical life AC21A: 15000 cycles
• Terminal tightening torque: 1.8 to 2 Nm
• Conductor section (IEC): 0.75 to 16 mm²
• Operating temperature: -25 to +55 °C
• Storage temperature: -40 to +70 °C
• Max altitude: 3000 m
• IP degree (frontal): IP65
• IP degree of protection: IP65
• Pollution degree: 3

What’s Included

• Pre-assembled switch disconnector and enclosure (GAZ063SA)
• Rotating red/yellow handle installed on the device
• Installation and safety instructions

Applications

• Main isolation for three-phase industrial equipment
• On-load switching of AC circuits within rated categories
• Control panels requiring IP65 enclosed switch disconnectors
• Plant rooms and machinery with demanding environmental conditions

Safety note: Install and commission only by qualified personnel. Isolate the supply before work, use the specified gG63 fuse for short‑circuit protection, and observe torque, conductor, temperature and altitude limits.
