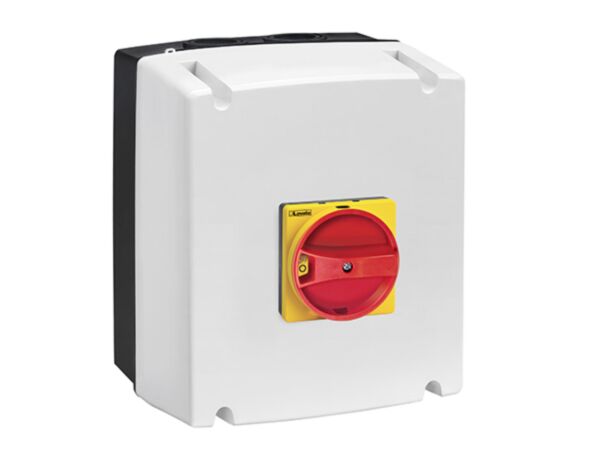

GAZ040DT4 - PLASTIC ENCL ISOLATOR 40A 4P PHOTOVOLTAIC R/Y HANDLE

Why Choose the GAZ040DT4?

The Lovato GAZ040DT4 switch disconnector delivers dependable DC isolation for photovoltaic installations. Supplied in an IP65 plastic enclosure with a prominent red/yellow handle, it is designed for safe, visible disconnection. With 2 poles, 40 A thermal current and suitability up to 1000 V DC, the GAZ040DT4 supports robust string-level isolation while maintaining compact dimensions of 175 x 210 x 99 mm for flexible mounting in demanding environments.

Built for reliability, this enclosed switch disconnector meets IEC/EN 60947-1 and 60947-3, with Ui 1500 V and 8 kV impulse withstand. IP65 protection resists dust and water jets, while terminals accept 1–10 mm² conductors tightened to 1.2–1.6 Nm. Operating from -25 to +55 °C and suitable up to 3000 m altitude, it offers durable performance for commercial and industrial solar projects.

Key Benefits

• IP65 enclosure for reliable protection against dust and water jets.
• 2-pole DC isolation optimised for photovoltaic string applications.
• 40 A thermal rating supports robust DC switching performance.
• Ui 1500 V and 8 kV impulse withstand enhance insulation margins.
• Compact 175 x 210 x 99 mm footprint simplifies installation.
• Red/yellow handle ensures clear, safe, visible disconnection.
• Wide -25 to +55 °C operating range suits varied site conditions.

Technical Specification

• Number of poles: 2
• Operating voltage type: DC
• Ith (IEC): 40 A
• Rated insulation voltage Ui (IEC/EN): 1500 V
• Rated impulse withstand voltage Uimp: 8 kV
• Power dissipation per pole (max): 1.9 W
• Mechanical life: 10000 cycles
• Terminal tightening torque: 1.2 to 1.6 Nm
• Conductor section (IEC): 1 to 10 mm²
• Operating temperature: -25 to +55 °C
• Storage temperature: -40 to +70 °C
• Max altitude: 3000 m
• IP degree (frontal): IP65
• IP degree of protection: IP65

What’s Included

• GAZ040DT4 switch disconnector in IP65 enclosure
• Red/yellow operating handle (fitted)
• Installation and user leaflet

Applications

• Photovoltaic string and array isolation
• DC isolation near PV inverters and combiner boxes
• Commercial and industrial solar installations
• IP65-rated switching within PV balance-of-system enclosures

Safety note: Installation and maintenance must be performed by qualified personnel. Isolate all power sources before work, tighten terminals to the specified torque, and follow applicable IEC/EN standards and local regulations.
