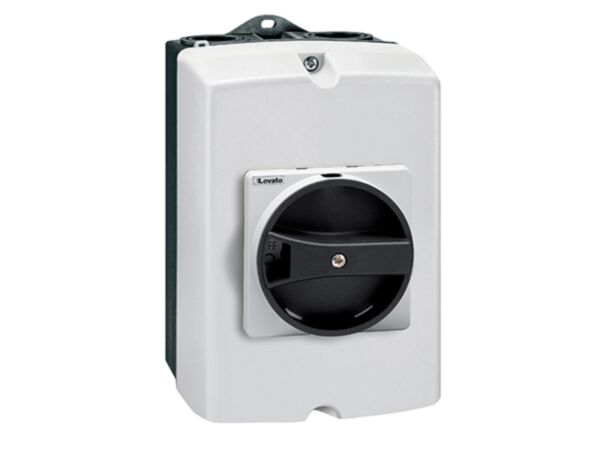

GAZ040B - 3P SWITCH 40A-ENCLOS-BLACK HAND.PADLOCK

Why Choose the GAZ040B?

Designed for reliable isolation in harsh conditions, the Lovato GAZ040B is a three-pole switch disconnector supplied in a robust IP65 plastic enclosure with a rotating black handle. Rated Ith 40 A with Ui 1000 V and Uimp 8 kV, it delivers dependable performance across industrial installations. Compact 100x168x97 mm dimensions streamline space planning while the enclosure keeps dust and water at bay for safe operation.

Performance is proven across duty categories: AC21A and AC22A up to 40 A, plus AC23A 40 A at 400 V and 25 A at 500/690 V. Mechanical life is 100000 cycles with electrical life of 100000 cycles (AC21A). Terminals accept 0.75 to 16 mm² conductors, tightened to 1.8 to 2 Nm. Operating temperature is -25 to +55 °C. Conditional short-circuit current is 10 kA with gG40 fuse. Compliant with IEC/EN 60947-3 and IEC/EN 60947-1.

Key Benefits

• IP65 enclosure protects against dust ingress and water jets during operation.
• Three-pole switching enables safe isolation of three-phase AC circuits.
• 40 A Ith with AC23A ratings for frequent motor and inductive loads.
• High dielectric strength: Ui 1000 V and Uimp 8 kV.
• Conditional short-circuit current 10 kA with gG40 fuse protection.
• Long lifespan: 100000 mechanical cycles; 100000 electrical cycles (AC21A).
• Compact 100x168x97 mm enclosure saves space in installations.

Technical Specification

• Product type designation: GAZ
• Number of poles: 3
• Operating voltage type: AC
• Ith (IEC): 40 A
• Rated insulation voltage Ui (IEC/EN): 1000 V
• Rated impulse withstand voltage Uimp: 8 kV
• Operating current Ie AC21A 400 V: 40 A
• Operating current Ie AC21A 500 V: 40 A
• Operating current Ie AC21A 690 V: 40 A
• Operating current Ie AC22A 400 V: 40 A
• Operating current Ie AC22A 500 V: 40 A
• Operating current Ie AC22A 690 V: 40 A
• Operating current Ie AC23A 400 V: 40 A
• Operating current Ie AC23A 500 V: 25 A
• Operating current Ie AC23A 690 V: 25 A
• Power dissipation per pole (max): 1 W
• Rated operational power AC23A 400 V: 18.5 kW
• Rated operational power AC23A 690 V: 22 kW
• Conditional short-circuit current (rms): 10 kA
• Short-circuit protection fuse: gG40
• Making capacity AC23A 400 V: 400 A
• Breaking capacity AC23A 400 V: 320 A
• Mechanical life: 100000 cycles
• Electrical life AC21A: 100000 cycles
• Terminal tightening torque: 1.8 to 2 Nm
• Conductor section (IEC): 0.75 to 16 mm²
• Operating temperature: -25 to +55 °C
• Storage temperature: -40 to +70 °C
• Max altitude: 3000 m
• IP degree (frontal): IP65
• IP degree of protection: IP65
• Pollution degree: 3

What’s Included

• Lovato GAZ series three-pole switch disconnector in IP65 enclosure
• Rotating black handle pre-fitted
• Mounting hardware and fixings
• Installation leaflet

Applications

• Isolation of three-phase machinery and motor loads
• Main switch or local isolator on control panels
• Disconnection for HVAC systems, pumps, and fans
• Maintenance isolation points in industrial environments

Safety note: Install and commission only by a qualified electrician. Isolate the supply before work, use the specified gG40 short-circuit protection and torque settings, and follow IEC/EN 60947 and site regulations.
