GAZ040 - 3P SWITCH 40A-ENCLOS-R/Y HAND.PADLOCK

Why Choose the GAZ040?

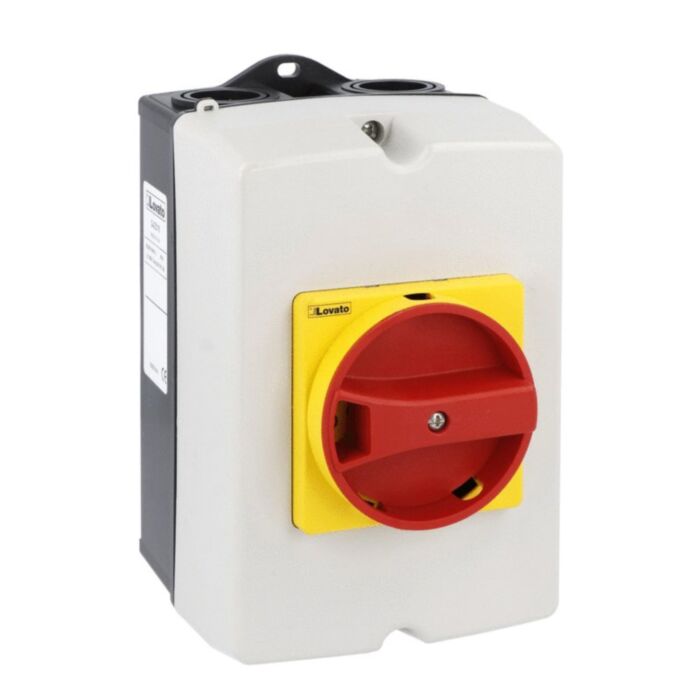

The Lovato GAZ040 is an IP65 enclosed switch disconnector engineered for dependable on-load isolation in industrial and commercial installations. This three-pole, AC device features a rotating red/yellow handle for clear status and safe lock-off. With 40 A Ith and proven AC21A/AC22A/AC23A performance, the GAZ040 combines robust switching with a compact 100 x 168 x 97 mm enclosure, making it an ideal choice where reliable isolation and straightforward integration are essential.

Built to IEC/EN 60947‑3 and 60947‑1, it offers 1000 V Ui and 8 kV Uimp ratings with a 10 kA conditional short-circuit current when protected by a gG40 fuse. Designed for longevity, it delivers 100000 mechanical and AC21A electrical cycles. Terminals accept 0.75–16 mm² conductors with 1.8–2 Nm torque. Suitable for -25 to +55 °C operation up to 3000 m altitude, with max 1 W power dissipation per pole.

Key Benefits

• IP65 frontal protection resists dust ingress and water jets.
• Three-pole isolation for AC circuits with clear rotary actuation.
• 40 A Ith with AC21A/AC22A/AC23A ratings for diverse loads.
• High dielectric strength: 1000 V Ui and 8 kV Uimp.
• 10 kA conditional short-circuit rating with gG40 fuse.
• Long service life: 100000 mechanical and electrical cycles.
• Compact 100 x 168 x 97 mm enclosure simplifies installation.

Technical Specification

• Product type designation: GAZ
• Number of poles: 3
• Operating voltage type: AC
• Ith (IEC): 40 A
• Rated insulation voltage Ui (IEC/EN): 1000 V
• Rated impulse withstand voltage Uimp: 8 kV
• Operating current Ie AC21A 400 V: 40 A
• Operating current Ie AC21A 500 V: 40 A
• Operating current Ie AC21A 690 V: 40 A
• Operating current Ie AC22A 400 V: 40 A
• Operating current Ie AC22A 500 V: 40 A
• Operating current Ie AC22A 690 V: 40 A
• Operating current Ie AC23A 400 V: 40 A
• Operating current Ie AC23A 500 V: 25 A
• Operating current Ie AC23A 690 V: 25 A
• Power dissipation per pole (max): 1 W
• Rated operational power AC23A 400 V: 18.5 kW
• Rated operational power AC23A 690 V: 22 kW
• Conditional short-circuit current (rms): 10 kA
• Short-circuit protection fuse: gG40
• Making capacity AC23A 400 V: 400 A
• Breaking capacity AC23A 400 V: 320 A
• Mechanical life: 100000 cycles
• Electrical life AC21A: 100000 cycles
• Terminal tightening torque: 1.8 to 2 Nm
• Conductor section (IEC): 0.75 to 16 mm²
• Operating temperature: -25 to +55 °C
• Storage temperature: -40 to +70 °C
• Max altitude: 3000 m
• IP degree (frontal): IP65
• IP degree of protection: IP65
• Pollution degree: 3

What’s Included

• Lovato GAZ040 enclosed three-pole switch disconnector
• Rotating red/yellow handle integrated with enclosure
• Pre-fitted terminals for conductor connection

Applications

• Main isolator for industrial machinery and plant
• Load isolation for pumps, fans and HVAC equipment
• Panelboard incomer or local maintenance isolation
• Areas requiring IP65 frontal protection during operation

Safety note: Installation and operation must be performed by qualified personnel. Isolate and lock off the supply before work, protect with the specified gG40 fuse, and follow IEC/EN and local regulations.
