GAZ032UL - 3P SWITCH 32A-ENCLOS-R/Y HAND.PADLOCK UL/CSA

Why Choose the GAZ032UL?

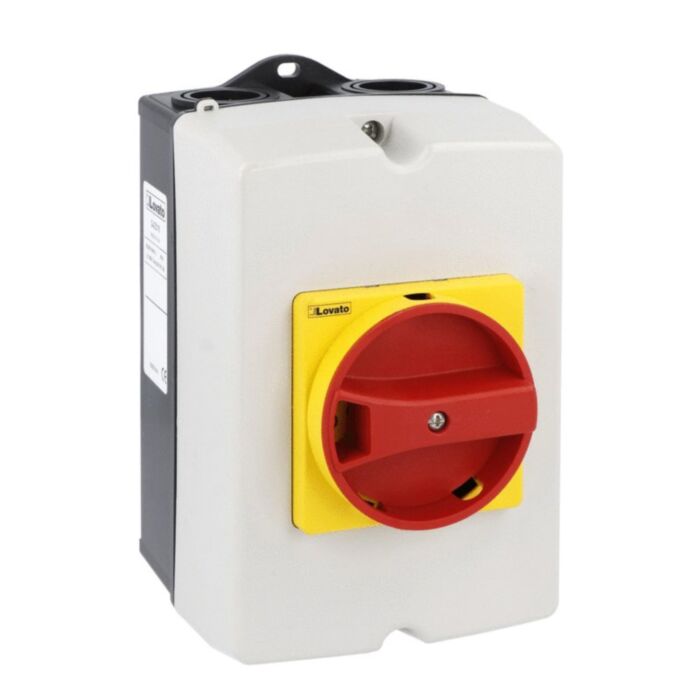

Lovato’s GAZ032UL is a three-pole switch disconnector in a robust UL/CSA Type 4/4X IP65 plastic enclosure, ideal for safe isolation and local switching. The rotating red/yellow handle offers clear status at a glance, while the enclosed design simplifies installation. Delivering 32 A Ith on AC systems, this compact unit (100×168×97 mm) suits space-constrained control panels and machinery isolation tasks across industrial and commercial environments.

With Ui 1000 V and Uimp 8 kV, the GAZ series ensures high insulation strength. Rated AC23A at 32 A (400 V) or 25 A (500–690 V), it handles motor and mixed loads confidently. Conditional short-circuit rating is 10 kA with gG32 fuse. IP65 protection, -25 to +55 °C operation, 0.75–16 mm² conductors and 1.8–2 Nm torque support dependable service. Conforms to IEC/EN 60947-3 and 60947-1.

Key Benefits

• UL/CSA Type 4/4X IP65 enclosure resists dust and water ingress.
• Three-pole enclosed design enables safe, clearly visible isolation.
• 32 A Ith for dependable current carrying on AC systems.
• AC23A 32 A at 400 V for motor and mixed loads.
• AC23A 25 A at 500–690 V for higher voltage switching.
• Compact 100×168×97 mm footprint saves valuable panel space.
• High insulation strength: Ui 1000 V, Uimp 8 kV.
• 100,000-cycle mechanical life; AC21A electrical life 100,000 cycles.

Technical Specification

• Product type designation: GAZ
• Number of poles: 3
• Operating voltage type: AC
• Ith (IEC): 32 A
• Rated insulation voltage Ui (IEC/EN): 1000 V
• Rated impulse withstand voltage Uimp: 8 kV
• Operating current Ie AC21A 400 V: 32 A
• Operating current Ie AC21A 500 V: 32 A
• Operating current Ie AC21A 690 V: 32 A
• Operating current Ie AC22A 400 V: 32 A
• Operating current Ie AC22A 500 V: 32 A
• Operating current Ie AC22A 690 V: 32 A
• Operating current Ie AC23A 400 V: 32 A
• Operating current Ie AC23A 500 V: 25 A
• Operating current Ie AC23A 690 V: 25 A
• Power dissipation per pole (max): 0.6 W
• Rated operational power AC23A 400 V: 15 kW
• Rated operational power AC23A 690 V: 22 kW
• Conditional short-circuit current (rms): 10 kA
• Short-circuit protection fuse: gG32
• Making capacity AC23A 400 V: 320 A
• Breaking capacity AC23A 400 V: 256 A
• Mechanical life: 100000 cycles
• Electrical life AC21A: 100000 cycles
• Terminal tightening torque: 1.8 to 2 Nm
• Conductor section (IEC): 0.75 to 16 mm²
• Operating temperature: -25 to +55 °C
• Storage temperature: -40 to +70 °C
• Max altitude: 3000 m
• IP degree (frontal): IP65
• IP degree of protection: IP65
• Pollution degree: 3

What’s Included

• Lovato GAZ032UL switch disconnector in plastic enclosure with red/yellow handle
• IP65 UL/CSA Type 4/4X enclosed assembly, ready for installation
• User installation and safety leaflet

Applications

• Machine and motor isolation up to 15 kW at 400 V AC23A
• Local on/off disconnection for industrial control panels
• HVAC, pump and fan circuits requiring safe maintenance isolation
• Indoor or sheltered outdoor installations needing IP65 protection
• OEM equipment and upgrade projects using three-pole AC systems

Safety note: Installation must be performed by a qualified electrician. Isolate the supply before work, use the specified gG32 fuse, and observe IP65, temperature, and conductor limits per the data.
