GAZ032T4B - 4P SWITCH 32A-ENCLOS-BLACK HAND.PADLOCK

Why Choose the GAZ032T4B?

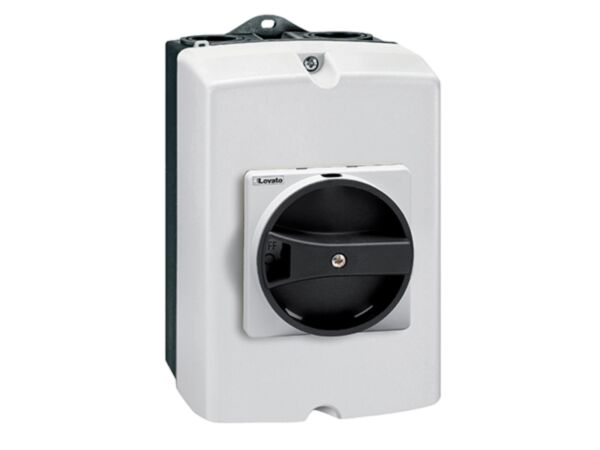

The Lovato GAZ032T4B is an IP65 plastic enclosure switch disconnector, four-pole, with a rotating black handle rated 32 A. Designed for reliable isolation in AC systems, it couples a compact 100x168x97 mm housing with terminals for 0.75–16 mm² conductors. High insulation (Ui 1000 V) and 8 kV impulse withstand support dependable performance in demanding industrial environments.

Rated for AC switching duties, it delivers Ie AC23A 32 A at 400 V (25 A at 500/690 V) and 15 kW at 400 V (22 kW at 690 V), with 320 A making and 256 A breaking capacity. IP65 frontal protection, -25 to +55 °C operation, 100000-cycle life, and compliance to IEC/EN 60947-3 and 60947-1 ensure long service.

Key Benefits

• IP65 enclosed design protects against dust and water ingress.
• Four-pole isolation for comprehensive disconnection of multi-phase circuits.
• Rotating black handle offers clear status and positive operation.
• 32 A ratings across AC21A and AC22A at up to 690 V.
• Robust AC23A performance: 32 A at 400 V, 25 A at 500/690 V.
• High dielectric strength: Ui 1000 V and Uimp 8 kV.
• Long service life with 100000 mechanical and electrical cycles.

Technical Specification

• Product type designation: GAZ
• Number of poles: 4
• Operating voltage type: AC
• Ith (IEC): 32 A
• Rated insulation voltage Ui (IEC/EN): 1000 V
• Rated impulse withstand voltage Uimp: 8 kV
• Operating current Ie AC21A 400 V: 32 A
• Operating current Ie AC21A 500 V: 32 A
• Operating current Ie AC21A 690 V: 32 A
• Operating current Ie AC22A 400 V: 32 A
• Operating current Ie AC22A 500 V: 32 A
• Operating current Ie AC22A 690 V: 32 A
• Operating current Ie AC23A 400 V: 32 A
• Operating current Ie AC23A 500 V: 25 A
• Operating current Ie AC23A 690 V: 25 A
• Power dissipation per pole (max): 0.6 W
• Rated operational power AC23A 400 V: 15 kW
• Rated operational power AC23A 690 V: 22 kW
• Conditional short-circuit current (rms): 10 kA
• Short-circuit protection fuse: gG32
• Making capacity AC23A 400 V: 320 A
• Breaking capacity AC23A 400 V: 256 A
• Mechanical life: 100000 cycles
• Electrical life AC21A: 100000 cycles
• Terminal tightening torque: 1.8 to 2 Nm
• Conductor section (IEC): 0.75 to 16 mm²
• Operating temperature: -25 to +55 °C
• Storage temperature: -40 to +70 °C
• Max altitude: 3000 m
• IP degree (frontal): IP65
• IP degree of protection: IP65
• Pollution degree: 3

What’s Included

• Four-pole switch disconnector pre-installed in IP65 plastic enclosure
• Rotating black handle, factory-fitted to the enclosure
• Integrated terminals for 0.75 to 16 mm² conductors

Applications

• On-load isolation of machinery and equipment up to 32 A
• Motor disconnecting and maintenance isolation in AC circuits (AC23A)
• Local isolator in distribution panels and switchboards
• Installations exposed to dust and water jets requiring IP65 protection

Safety note: Install and commission only by qualified personnel. Isolate all power before work, protect with a gG32 fuse, and observe the 10 kA conditional short-circuit rating and applicable IEC/EN 60947 requirements.
