GAZ032T4 - 4P SWITCH 32A-ENCLOS-R/Y HAND.PADLOCK

Why Choose the GAZ032T4?

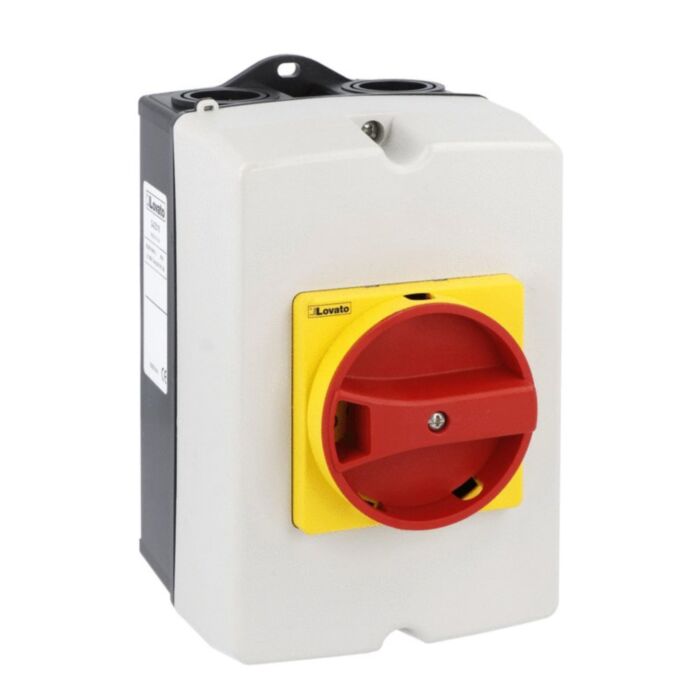

The Lovato GAZ032T4 is a robust 4‑pole switch disconnector supplied in an IP65 plastic enclosure with a rotating red/yellow handle for clear on-off indication. Rated at 32 A AC with Ui 1000 V and Uimp 8 kV, it delivers dependable isolation across demanding applications. Compact enclosure dimensions of 100x168x97 mm (3.9x6.6x3.8'') make installation straightforward while maintaining protection against dust and water.

Designed to IEC/EN 60947-3 and 60947-1, this enclosed isolator offers AC21A/AC22A performance at 32 A and AC23A up to 25 A, with rated operational power to 22 kW at 690 V. It features IP65 frontal protection, mechanical and electrical life of 100000 cycles, and accepts 0.75–16 mm² conductors with 1.8–2 Nm terminal torque. Suitable for enclosed installation up to 3000 m altitude and -25 to +55 °C operation.

Key Benefits

• IP65 plastic enclosure for reliable dust and water ingress protection.
• Four-pole switching for comprehensive circuit isolation.
• 32 A Ith with Ui 1000 V and 8 kV impulse withstand.
• AC21A/AC22A 32 A; AC23A up to 25 A performance.
• Rated operational power: 15 kW at 400 V, 22 kW at 690 V.
• Robust 100000-cycle mechanical and electrical life.
• Red/yellow rotary handle for clear, safe operation indication.

Technical Specification

• Product type designation: GAZ
• Number of poles: 4
• Operating voltage type: AC
• Ith (IEC): 32 A
• Rated insulation voltage Ui (IEC/EN): 1000 V
• Rated impulse withstand voltage Uimp: 8 kV
• Operating current Ie AC21A 400 V: 32 A
• Operating current Ie AC21A 500 V: 32 A
• Operating current Ie AC21A 690 V: 32 A
• Operating current Ie AC22A 400 V: 32 A
• Operating current Ie AC22A 500 V: 32 A
• Operating current Ie AC22A 690 V: 32 A
• Operating current Ie AC23A 400 V: 32 A
• Operating current Ie AC23A 500 V: 25 A
• Operating current Ie AC23A 690 V: 25 A
• Power dissipation per pole (max): 0.6 W
• Rated operational power AC23A 400 V: 15 kW
• Rated operational power AC23A 690 V: 22 kW
• Conditional short-circuit current (rms): 10 kA
• Short-circuit protection fuse: gG32
• Making capacity AC23A 400 V: 320 A
• Breaking capacity AC23A 400 V: 256 A
• Mechanical life: 100000 cycles
• Electrical life AC21A: 100000 cycles
• Terminal tightening torque: 1.8 to 2 Nm
• Conductor section (IEC): 0.75 to 16 mm²
• Operating temperature: -25 to +55 °C
• Storage temperature: -40 to +70 °C
• Max altitude: 3000 m
• IP degree (frontal): IP65
• IP degree of protection: IP65
• Pollution degree: 3

What’s Included

• Lovato GAZ032T4 enclosed 4-pole switch disconnector
• Integrated red/yellow rotary operating handle
• Pre-fitted IP65 plastic enclosure
• Product datasheet (downloadable from manufacturer)

Applications

• Main power isolation for machinery and control panels
• Motor and load isolation within AC21A/AC22A/AC23A duties
• HVAC units, pumps and fans switch disconnection
• Industrial distribution boards and equipment panels
• Safe isolation for installation, testing and maintenance

Safety note: Install and commission only by a qualified person. Always isolate the supply before work, use the specified gG32 fuse, and observe all ratings, torque, and environmental limits to maintain IP65 protection.
