GAZ032B - 3P SWITCH 32A-ENCLOS-BLACK HAND.PADLOCK

Why Choose the GAZ032B?

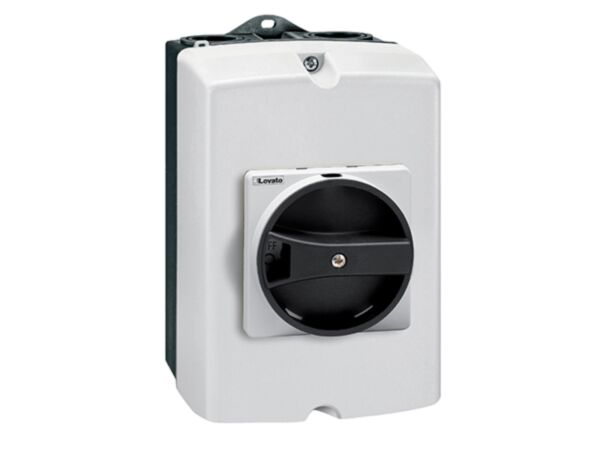

The Lovato GAZ032B is an IP65 plastic enclosure switch disconnector to IEC/EN standards, engineered for dependable three‑pole isolation. With a rotating black handle and 32 A rating, the GAZ032B delivers clear, positive switching. The compact yet robust enclosure measures 100x168x97 mm (3.9x6.6x3.8''), ideal for machine‑side or panel isolation where space is limited and ingress protection is essential.

Rated Ui 1000 V with Uimp 8 kV, it provides 32 A AC‑21/AC‑22 performance up to 690 V, and AC‑23A 32 A at 400 V (25 A at 500/690 V). IP65 protection, 100,000 mechanical/electrical cycles, and −25 to +55 °C operation support demanding duty. Terminals accept 0.75–16 mm² conductors tightened to 1.8–2 Nm; compliant with IEC/EN 60947‑3 and 60947‑1.

Key Benefits

• IP65 enclosure resists dust and water for reliable isolation.
• Three‑pole switching supports balanced AC circuits up to 690 V.
• Rotating black handle provides clear, positive actuation.
• 32 A AC‑21/22 rating; strong AC‑23A motor‑load capability.
• High dielectric strength: Ui 1000 V, Uimp 8 kV.
• Long life: 100,000 mechanical and electrical cycles.
• Compact 100x168x97 mm footprint simplifies installation.

Technical Specification

• Product type designation: GAZ
• Number of poles: 3
• Operating voltage type: AC
• Ith (IEC): 32 A
• Rated insulation voltage Ui (IEC/EN): 1000 V
• Rated impulse withstand voltage Uimp: 8 kV
• Operating current Ie AC21A 400 V: 32 A
• Operating current Ie AC21A 500 V: 32 A
• Operating current Ie AC21A 690 V: 32 A
• Operating current Ie AC22A 400 V: 32 A
• Operating current Ie AC22A 500 V: 32 A
• Operating current Ie AC22A 690 V: 32 A
• Operating current Ie AC23A 400 V: 32 A
• Operating current Ie AC23A 500 V: 25 A
• Operating current Ie AC23A 690 V: 25 A
• Power dissipation per pole (max): 0.6 W
• Rated operational power AC23A 400 V: 15 kW
• Rated operational power AC23A 690 V: 22 kW
• Conditional short-circuit current (rms): 10 kA
• Short-circuit protection fuse: gG32
• Making capacity AC23A 400 V: 320 A
• Breaking capacity AC23A 400 V: 256 A
• Mechanical life: 100000 cycles
• Electrical life AC21A: 100000 cycles
• Terminal tightening torque: 1.8 to 2 Nm
• Conductor section (IEC): 0.75 to 16 mm²
• Operating temperature: -25 to +55 °C
• Storage temperature: -40 to +70 °C
• Max altitude: 3000 m
• IP degree (frontal): IP65
• IP degree of protection: IP65
• Pollution degree: 3

What’s Included

• Lovato GAZ032B switch disconnector in IP65 plastic enclosure
• Rotating black handle pre‑installed
• Downloadable product datasheet

Applications

• Machinery and equipment isolation in industrial environments
• Motor load switching within AC‑23A ratings
• Main isolator for compact control panels
• HVAC and pump systems requiring IP65 protection
• On‑site maintenance shut‑off points and safety isolation

Safety note: Installation and maintenance must be performed by qualified personnel with the supply isolated. Protect the circuit with a gG32 fuse, observe the stated temperature range, and follow IEC/EN 60947 guidelines.
