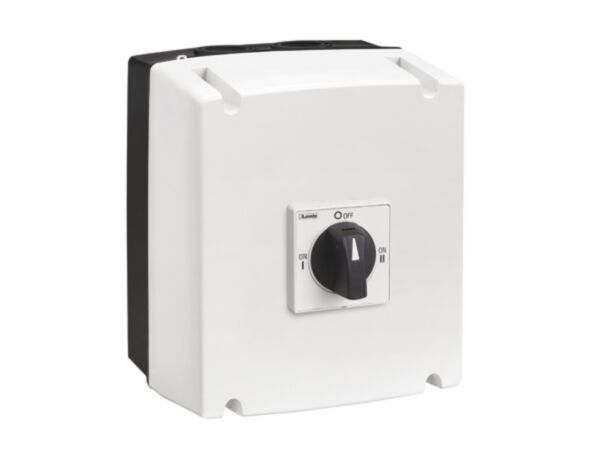

GAZ025ET8 - 4P CHANGEOVER SWITCH 25A ENCLOSED

Why Choose the GAZ025ET8?

Lovato GAZ025ET8 is a four-pole line changeover switch with I-0-II operation, designed for dependable source transfer in demanding installations. Rated 25 A and housed in a UL/CSA Type 4/4X non‑metallic enclosure with IP65 protection, it fits compactly at 175x210x149mm. With AC operation and robust insulation to 1000 V, it delivers safe, clear switching for panels where reliability and footprint both matter.

It sustains 25 A across AC21A, AC22A and AC23A duties up to 690 V, with 250 A making and 200 A breaking capacity at AC23A 400 V. Built for longevity with 100000 mechanical and electrical life cycles, it accepts 0.75–16 mm² conductors at 1.8–2 Nm. Operating from −25 to +55 °C up to 3000 m, it complies with IEC/EN 60947-3/-1 and UL 508/CSA C22.2 n°14.

Key Benefits

• Four-pole I-0-II changeover ensures clear, reliable source transfer.
• 25 A rated across AC21A, AC22A and AC23A categories up to 690 V.
• IP65 protection in UL/CSA Type 4/4X non‑metallic enclosure for harsh sites.
• Compact 175x210x149mm footprint simplifies panel integration and space planning.
• High making 250 A and breaking 200 A at AC23A 400 V.
• Long service life: 100000 mechanical and 100000 electrical cycles.
• Wide environmental range from −25 to +55 °C, up to 3000 m.

Technical Specification

• Product type designation: GAZ
• Number of poles: 4
• Operating voltage type: AC
• Ith (IEC): 25 A
• Rated insulation voltage Ui (IEC/EN): 1000 V
• Rated impulse withstand voltage Uimp: 8 kV
• Operating current Ie AC21A 400 V: 25 A
• Operating current Ie AC21A 500 V: 25 A
• Operating current Ie AC21A 690 V: 25 A
• Operating current Ie AC22A 400 V: 25 A
• Operating current Ie AC22A 500 V: 25 A
• Operating current Ie AC22A 690 V: 25 A
• Operating current Ie AC23A 400 V: 25 A
• Operating current Ie AC23A 500 V: 25 A
• Operating current Ie AC23A 690 V: 25 A
• Power dissipation per pole (max): 0.4 W
• Rated operational power AC23A 400 V: 11 kW
• Rated operational power AC23A 690 V: 22 kW
• Conditional short-circuit current (rms): 10 kA
• Short-circuit protection fuse: gG25
• Making capacity AC23A 400 V: 250 A
• Breaking capacity AC23A 400 V: 200 A
• Mechanical life: 100000 cycles
• Electrical life AC21A: 100000 cycles
• Terminal tightening torque: 1.8 to 2 Nm
• Conductor section (IEC): 0.75 to 16 mm²
• Operating temperature: -25 to +55 °C
• Storage temperature: -40 to +70 °C
• Max altitude: 3000 m
• IP degree (frontal): IP65
• IP degree of protection: IP65
• Pollution degree: 3

What’s Included

• Lovato GAZ four-pole changeover switch pre-assembled in non‑metallic enclosure
• Basic mounting fixings (generic)
• Installation and safety instructions
• Product identification label with SKU and ratings

Applications

• Changeover between supply sources in industrial and commercial installations
• Generator transfer and maintenance bypass on AC circuits up to 690 V
• Control panels requiring four-pole isolation with I-0-II operation
• Installations requiring IP65 and UL/CSA Type 4/4X non‑metallic enclosures

Safety note: Installation and connection must be performed by qualified personnel with the supply isolated. Use the specified gG25 fuse and follow IEC/EN 60947 and UL/CSA requirements and the supplied instructions.
