GAZ025 - 3P SWITCH 25A-ENCLOS-R/Y HAND.PADLOCK

Why Choose the GAZ025?

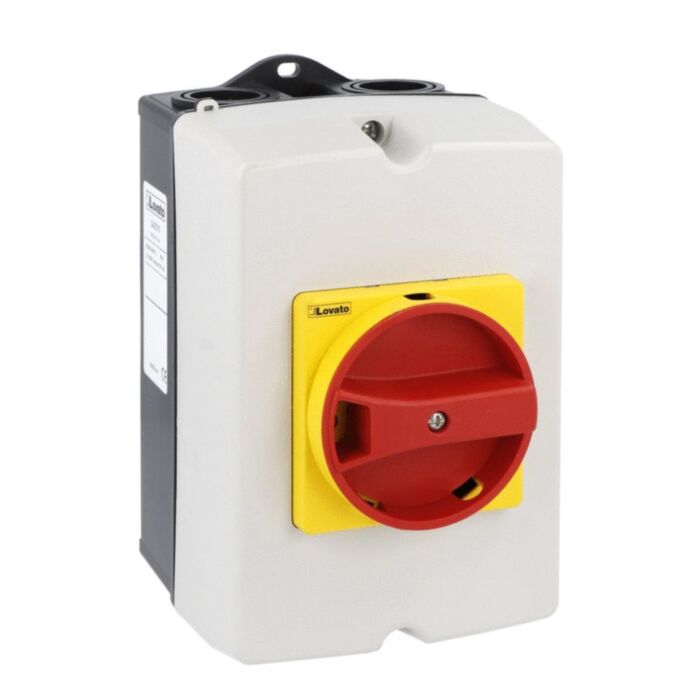

Designed for dependable isolation in industrial environments, the Lovato GAZ025 switch disconnector combines a three-pole AC design with a rugged IP65 plastic enclosure. Rated Ith 25 A and supplied with a rotating red/yellow handle, this enclosed unit offers clear, safe operation. Compact dimensions of 100x168x97 mm (3.9x6.6x3.8'') help it fit into control setups while maintaining robust performance.

Tested to IEC/EN 60947-3 and 60947-1, the unit provides Ui 1000 V and Uimp 8 kV, with AC21A/AC22A/AC23A currents of 25 A up to 690 V. It offers low 0.4 W power dissipation per pole, 100,000-cycle mechanical and electrical life, and operates from -25 to +55 °C up to 3000 m. Terminals accept 0.75–16 mm² conductors tightened to 1.8–2 Nm, in Pollution Degree 3.

Key Benefits

• IP65 enclosure with high-visibility red/yellow rotary handle.
• Three-pole AC switch disconnector rated Ith 25 A.
• 25 A AC21/AC22/AC23 operation up to 690 V.
• High insulation strength: Ui 1000 V, Uimp 8 kV.
• Long service life: 100,000 mechanical and electrical cycles.
• Low power dissipation, 0.4 W per pole maximum.
• Wide operating temperature range, -25 to +55 °C.
• Supports 0.75–16 mm² conductors; torque 1.8–2 Nm.

Technical Specification

• Product type designation: GAZ
• Number of poles: 3
• Operating voltage type: AC
• Ith (IEC): 25 A
• Rated insulation voltage Ui (IEC/EN): 1000 V
• Rated impulse withstand voltage Uimp: 8 kV
• Operating current Ie AC21A 400 V: 25 A
• Operating current Ie AC21A 500 V: 25 A
• Operating current Ie AC21A 690 V: 25 A
• Operating current Ie AC22A 400 V: 25 A
• Operating current Ie AC22A 500 V: 25 A
• Operating current Ie AC22A 690 V: 25 A
• Operating current Ie AC23A 400 V: 25 A
• Operating current Ie AC23A 500 V: 25 A
• Operating current Ie AC23A 690 V: 25 A
• Power dissipation per pole (max): 0.4 W
• Rated operational power AC23A 400 V: 11 kW
• Rated operational power AC23A 690 V: 22 kW
• Conditional short-circuit current (rms): 10 kA
• Short-circuit protection fuse: gG25
• Making capacity AC23A 400 V: 250 A
• Breaking capacity AC23A 400 V: 200 A
• Mechanical life: 100000 cycles
• Electrical life AC21A: 100000 cycles
• Terminal tightening torque: 1.8 to 2 Nm
• Conductor section (IEC): 0.75 to 16 mm²
• Operating temperature: -25 to +55 °C
• Storage temperature: -40 to +70 °C
• Max altitude: 3000 m
• IP degree (frontal): IP65
• IP degree of protection: IP65
• Pollution degree: 3

What’s Included

• GAZ025 switch disconnector in IP65 plastic enclosure
• Integrated red/yellow rotary handle (pre-fitted)
• Manufacturer product datasheet (downloadable)
• Basic installation and safety information

Applications

• Motor isolation up to 11 kW at 400 V
• General AC isolation up to 25 A at 690 V
• Local machinery and conveyor isolation points
• HVAC fans, pumps and compressors maintenance switching
• Control and distribution panel main or section isolator

Safety note: Installation and servicing must be performed by qualified personnel. Isolate power before work, use gG25 fuses as specified, and follow IEC/EN 60947 requirements and manufacturer guidance.
