GAZ016T4 - 4P SWITCH 16A-ENCLOS-RED YELLOW HAND.PADLOCK

Why Choose the GAZ016T4?

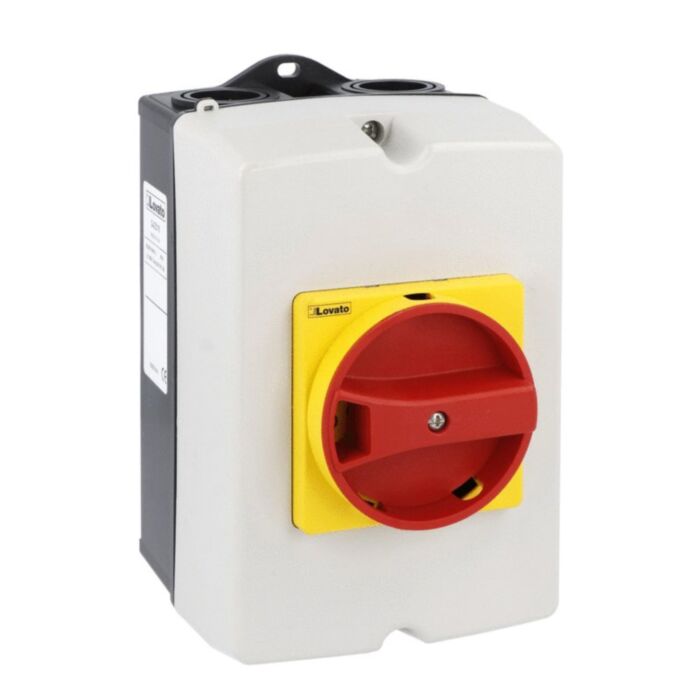

The Lovato GAZ016T4 is a four‑pole switch disconnector supplied in a robust IP65 plastic enclosure with a rotating red/yellow handle. Rated 16 A for AC duty, the GAZ016T4 delivers dependable isolation across AC21A, AC22A and AC23A categories up to 690 V. With Ui 1000 V and 8 kV impulse withstand, it’s engineered for safe, visible disconnection in compact installations measuring 100×168×97 mm.

Built to IEC/EN 60947‑3 and 60947‑1, this enclosed disconnector offers 100,000 mechanical and electrical cycles for long service life. It supports a 10 kA conditional short‑circuit current with gG16 fuse protection, and accepts 0.75–16 mm² conductors tightened to 1.8–2 Nm. Suitable for -25 to +55 °C operation and installations up to 3000 m, it ensures reliable isolation in demanding environments.

Key Benefits

• IP65 plastic enclosure resists dust and water ingress.
• Four‑pole design ensures complete isolation on multi‑phase circuits.
• 16 A rated across AC21A, AC22A and AC23A duties.
• High dielectric strength: Ui 1000 V and 8 kV Uimp.
• Long service life with 100,000 mechanical and electrical cycles.
• 10 kA conditional short‑circuit rating with gG16 fuse.
• Clear red/yellow rotary handle for safe, visible operation.

Technical Specification

• Product type designation: GAZ
• Number of poles: 4
• Operating voltage type: AC
• Ith (IEC): 16 A
• Rated insulation voltage Ui (IEC/EN): 1000 V
• Rated impulse withstand voltage Uimp: 8 kV
• Operating current Ie AC21A 400 V: 16 A
• Operating current Ie AC21A 500 V: 16 A
• Operating current Ie AC21A 690 V: 16 A
• Operating current Ie AC22A 400 V: 16 A
• Operating current Ie AC22A 500 V: 16 A
• Operating current Ie AC22A 690 V: 16 A
• Operating current Ie AC23A 400 V: 16 A
• Operating current Ie AC23A 500 V: 16 A
• Operating current Ie AC23A 690 V: 16 A
• Power dissipation per pole (max): 0.2 W
• Rated operational power AC23A 400 V: 7.5 kW
• Rated operational power AC23A 690 V: 11 kW
• Conditional short-circuit current (rms): 10 kA
• Short-circuit protection fuse: gG16
• Making capacity AC23A 400 V: 160 A
• Breaking capacity AC23A 400 V: 128 A
• Mechanical life: 100000 cycles
• Electrical life AC21A: 100000 cycles
• Terminal tightening torque: 1.8 to 2 Nm
• Conductor section (IEC): 0.75 to 16 mm²
• Operating temperature: -25 to +55 °C
• Storage temperature: -40 to +70 °C
• Max altitude: 3000 m
• IP degree (frontal): IP65
• IP degree of protection: IP65
• Pollution degree: 3

What’s Included

• Lovato GAZ016T4 enclosed 4‑pole switch disconnector
• Pre‑fitted red/yellow rotary handle
• IP65 plastic enclosure
• User and safety information

Applications

• Motor isolation and maintenance lock‑off
• Machine and production line control panels
• HVAC equipment and pump stations
• Industrial distribution and switchboards
• Harsh or dusty environments requiring IP65 enclosures

Safety note: Installation and commissioning must be performed by qualified personnel. Always isolate the supply, use the specified gG16 fuse, and tighten terminals to 1.8–2 Nm within the stated ratings.
