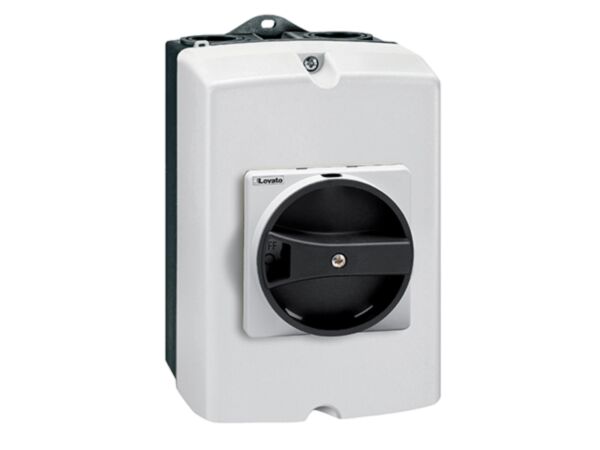

GAZ016B - 3P SWITCH 16A-ENCLOS-BLACK HAND.PADLOCK

Why Choose the GAZ016B?

The Lovato GAZ016B is an IEC/EN type IP65 plastic enclosure switch disconnector designed for dependable isolation in industrial AC circuits. This three‑pole unit features a rotating black handle and 16 A rating, with a compact 100×168×97 mm enclosure. With Ui 1000 V and Uimp 8 kV, the GAZ016B offers robust performance within a small footprint.

Rated 16 A across AC21A, AC22A and AC23A up to 690 V, it delivers 7.5 kW at 400 V AC23A and 11 kW at 690 V AC23A. The IP65 enclosure, 100,000‑cycle mechanical and electrical life, 0.75–16 mm² conductor capacity and 1.8–2 Nm torque simplify dependable installation. Operates from −25 to +55 °C and up to 3000 m altitude.

Key Benefits

• IP65 enclosure safeguards against dust and water jets.
• Three‑pole isolation for reliable disconnection of AC circuits.
• 16 A rated across AC21A, AC22A and AC23A duty.
• High insulation and impulse withstand: Ui 1000 V, Uimp 8 kV.
• Compact 100×168×97 mm housing saves panel space.
• Long service life: 100,000 mechanical and electrical cycles.
• Wide wiring range 0.75–16 mm² with 1.8–2 Nm torque.

Technical Specification

• Product type designation: GAZ
• Number of poles: 3
• Operating voltage type: AC
• Ith (IEC): 16 A
• Rated insulation voltage Ui (IEC/EN): 1000 V
• Rated impulse withstand voltage Uimp: 8 kV
• Operating current Ie AC21A 400 V: 16 A
• Operating current Ie AC21A 500 V: 16 A
• Operating current Ie AC21A 690 V: 16 A
• Operating current Ie AC22A 400 V: 16 A
• Operating current Ie AC22A 500 V: 16 A
• Operating current Ie AC22A 690 V: 16 A
• Operating current Ie AC23A 400 V: 16 A
• Operating current Ie AC23A 500 V: 16 A
• Operating current Ie AC23A 690 V: 16 A
• Power dissipation per pole (max): 0.2 W
• Rated operational power AC23A 400 V: 7.5 kW
• Rated operational power AC23A 690 V: 11 kW
• Conditional short-circuit current (rms): 10 kA
• Short-circuit protection fuse: gG16
• Making capacity AC23A 400 V: 160 A
• Breaking capacity AC23A 400 V: 128 A
• Mechanical life: 100000 cycles
• Electrical life AC21A: 100000 cycles
• Terminal tightening torque: 1.8 to 2 Nm
• Conductor section (IEC): 0.75 to 16 mm²
• Operating temperature: -25 to +55 °C
• Storage temperature: -40 to +70 °C
• Max altitude: 3000 m
• IP degree (frontal): IP65
• IP degree of protection: IP65
• Pollution degree: 3

What’s Included

• Lovato GAZ016B three‑pole switch disconnector in IP65 plastic enclosure
• Rotating black handle, installed on the cover
• Manufacturer’s product documentation
• Protective packaging for safe transit

Applications

• Local isolation of industrial AC equipment and machinery
• On‑load disconnection for motor circuits within 16 A AC23A duty
• Main switch isolation in control and distribution panels
• Indoor or sheltered outdoor installations requiring IP65 protection

Safety note: Install and commission only by qualified personnel. Observe IEC/EN 60947 requirements, isolate supplies before work, and protect with the specified gG16 fuse. Do not exceed the stated ratings.
