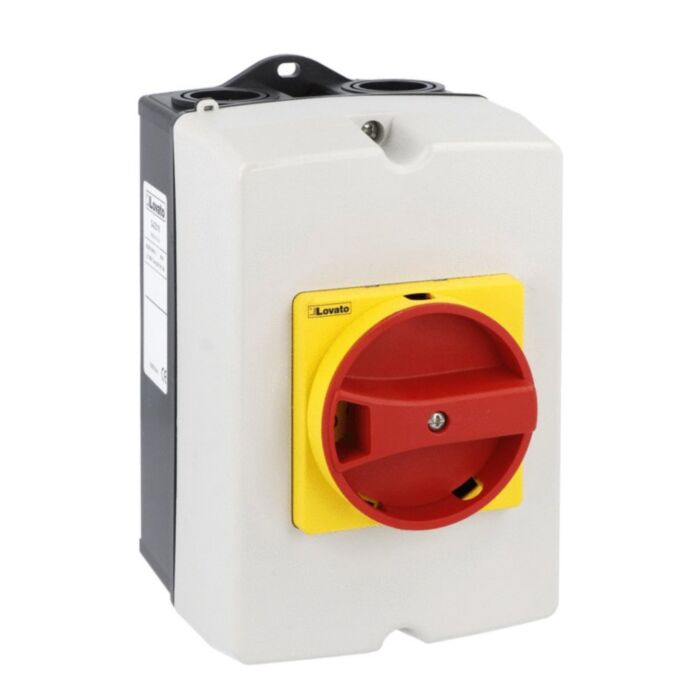

GAZ016 - 3P SWITCH 16A-ENCLOS-R/Y HAND.PADLOCK

Why Choose the GAZ016?

The Lovato GAZ016 is an IP65 enclosed switch disconnector designed for reliable isolation in demanding industrial settings. This three-pole device features a rotating red/yellow handle for clear status indication and safe operation. Rated Ith 16 A and AC type, it withstands Ui 1000 V and Uimp 8 kV, all within a compact 100×168×97 mm plastic enclosure.

Engineered for versatility, GAZ016 delivers 16 A across AC21A, AC22A and AC23A at 400, 500 and 690 V, with rated operational power of 7.5 kW at 400 V and 11 kW at 690 V. It offers 100000 mechanical and AC21A electrical cycles, IP65 protection, conditional short-circuit current 10 kA (gG16 fuse), and compliance with IEC/EN 60947-3 and 60947-1.

Key Benefits

• Robust IP65 plastic enclosure for dust-tight and water-jet protection.
• Clear red/yellow rotary handle for safe, visible isolation.
• 3-pole switching suitable for AC applications up to 690 V.
• 16 A rating across AC21A, AC22A and AC23A duty classes.
• High dielectric strength: Ui 1000 V and Uimp 8 kV.
• Long service life with 100000 mechanical and electrical cycles.
• Compact 100×168×97 mm enclosure for space-constrained panels.
• Complies with IEC/EN 60947-3 and 60947-1 standards.

Technical Specification

• Product type designation: GAZ
• Number of poles: 3
• Operating voltage type: AC
• Ith (IEC): 16 A
• Rated insulation voltage Ui (IEC/EN): 1000 V
• Rated impulse withstand voltage Uimp: 8 kV
• Operating current Ie AC21A 400 V: 16 A
• Operating current Ie AC21A 500 V: 16 A
• Operating current Ie AC21A 690 V: 16 A
• Operating current Ie AC22A 400 V: 16 A
• Operating current Ie AC22A 500 V: 16 A
• Operating current Ie AC22A 690 V: 16 A
• Operating current Ie AC23A 400 V: 16 A
• Operating current Ie AC23A 500 V: 16 A
• Operating current Ie AC23A 690 V: 16 A
• Power dissipation per pole (max): 0.2 W
• Rated operational power AC23A 400 V: 7.5 kW
• Rated operational power AC23A 690 V: 11 kW
• Conditional short-circuit current (rms): 10 kA
• Short-circuit protection fuse: gG16
• Making capacity AC23A 400 V: 160 A
• Breaking capacity AC23A 400 V: 128 A
• Mechanical life: 100000 cycles
• Electrical life AC21A: 100000 cycles
• Terminal tightening torque: 1.8 to 2 Nm
• Conductor section (IEC): 0.75 to 16 mm²
• Operating temperature: -25 to +55 °C
• Storage temperature: -40 to +70 °C
• Max altitude: 3000 m
• IP degree (frontal): IP65
• IP degree of protection: IP65
• Pollution degree: 3

What’s Included

• Enclosed switch disconnector (3-pole, IP65, red/yellow handle)
• Pre-assembled rotary operating handle
• Manufacturer documentation
• Protective packaging

Applications

• Machinery main isolator for safe power disconnection
• Maintenance isolation points on industrial equipment
• Power distribution and control panel isolation
• HVAC, pump and fan motor isolation at 400–690 V AC

Safety note: Install and commission only by qualified personnel. Isolate the supply before work, observe stated torque and conductor sizes, protect with a gG16 fuse, and do not exceed the rated limits or environmental conditions.
