GAX7400AN - EXTENSION 400MM DIRECT/DOOR COUP

Why Choose the GAX7400AN?

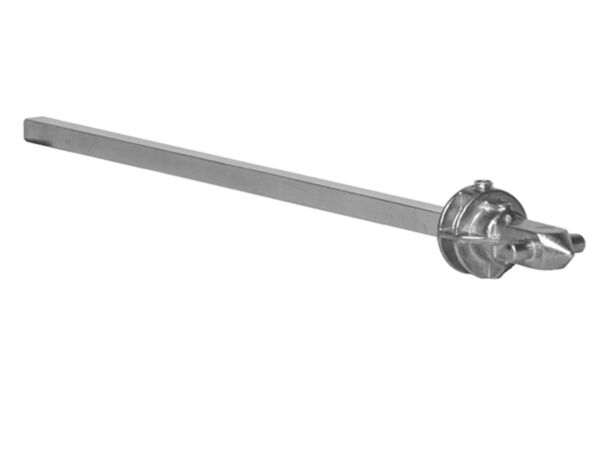

Lovato GAX7400AN shaft extension accessory delivers reliable door-coupling alignment for demanding applications. With a 400mm length and 7mm square (0.3”) profile, the SKU GAX7400AN links handles GAX66N and GAX66NB to the mechanical coupling system GAX6001. As an Accessories product, it provides a straightforward way to extend the operating shaft between the door-mounted handle and the internal mechanism.

Engineered by Lovato, this shaft extension is listed as Accessories for GA030A…, GA063A…GA160A…, GE0160…GE0250 and GE0160T4…GE0250T4 devices. It conforms to IEC/EN 60947-1 and 60947-3, plus UL508, UL98 and CSA C22.2, and carries a Sustainability certification. Specify GAX7400AN to maintain system compatibility and standards compliance across your Lovato door-coupling and mechanical coupling assemblies.

Key Benefits

• 400mm shaft length supports extended door-coupling arrangements
• 7mm square section ensures correct engagement with matching parts
• Compatible with GAX66N and GAX66NB handle models
• Interfaces with mechanical coupling system GAX6001
• Listed Accessories for GA030A…, GA063A…GA160A…, GE0160…GE0250
• Conforms to IEC/EN 60947-1 and 60947-3 requirements
• Also conforms to UL508, UL98 and CSA C22.2

Technical Specification

• Type of product: Accessories
• Type of accessories: Shaft extension
• Accessories for: GA030A…, GA063A…GA160A…, GE0160…GE0250, GE0160T4…GE0250T4

What’s Included

• GAX7400AN shaft extension, 400mm, 7mm square
• Product labelling and part identification
• Manufacturer information as supplied

Applications

• Extending door-coupling handle reach with GAX66N or GAX66NB
• Linking handles to the mechanical coupling system GAX6001
• Use with GA030A… and GA063A…GA160A… assemblies
• Use with GE0160…GE0250 and GE0160T4…GE0250T4 devices

Safety note: Install and adjust only by qualified personnel with power isolated. Follow Lovato guidance and relevant IEC/EN, UL and CSA standards during assembly and operation.
