GAX7200 - EXTENSION 200MM DIRECT/DOOR COUP
MPN: GAX7200
Special Price
£4.67
£3.89
Regular Price
£6.67
Why Choose the GAX7200?

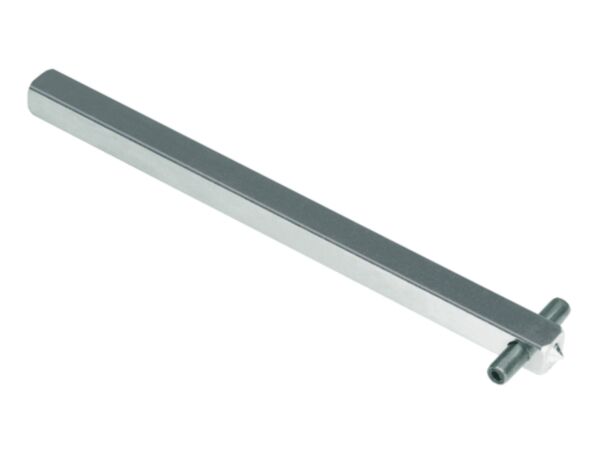

Lovato's GAX7200 is a precision Accessories shaft extension designed for door-coupling handle systems. It links GAX61-GAX64, GAX61B-GAX64B and GAX67B handles to compatible mechanisms, and interfaces with mechanical interlocks GAX5000 and GAX5001 as well as the GAX6000 coupling system. With a 200mm length and 5mm square (0.2") profile, GAX7200 delivers the correct fit for dependable panel actuation.
Defined as Accessories for GA016A…GA160A…, this shaft extension supports standardised assembly across Lovato handle and interlock configurations. It conforms to IEC/EN 60947-1 and 60947-3, UL508, UL98 and CSA C22.2, aligning with recognised safety and performance criteria. A Sustainability certification underscores responsible production, offering dependable compatibility when specifying genuine coupling components for Lovato door-coupling handle and interlock installations.
Key Benefits
- Compatible with GAX61-GAX64 and GAX61B-GAX64B door-coupling handles.
- Supports GAX67B handle and GAX5000/GAX5001 mechanical interlocks.
- Interfaces with GAX6000 coupling system for consistent operation.
- 200mm length for extended handle-to-mechanism connection.
- 5mm square shaft profile (0.2") for precise fit.
- Classified Accessories for GA016A…GA160A… assemblies.
- Conforms to IEC/EN, UL and CSA standards for compliance.
- Lovato original component for system compatibility.
Technical Specification
- Type of product: Accessories
- Type of accessories: Shaft extension
- Accessories for: GA016A…GA160A…
What’s Included
- 1 x Lovato GAX7200 shaft extension (200mm, 5mm square)
- Standard manufacturer packaging
Applications
- Linking GAX61-GAX64 and GAX61B-GAX64B door-coupling handles
- Connection with GAX67B handle assemblies
- Integration with mechanical interlocks GAX5000 and GAX5001
- Use with GAX6000 coupling system
- Accessories for GA016A…GA160A… installations
Frequently Asked Questions
What is the length and shaft size of the GAX7200?
It measures 200mm in length with a 5mm square (0.2") shaft.
Which door-coupling handles is it compatible with?
It fits GAX61-GAX64, GAX61B-GAX64B and GAX67B door-coupling handles.
Can it be used with mechanical interlocks?
Yes, it is compatible with GAX5000 and GAX5001 mechanical interlocks.
Does it work with a coupling system?
Yes, it interfaces with the GAX6000 coupling system.
What standards does the GAX7200 conform to?
It conforms to IEC/EN 60947-1 and 60947-3, UL508, UL98 and CSA C22.2.
Safety note: Install and commission only by qualified personnel. Verify compatibility with listed handles, interlocks and coupling system, and follow applicable IEC/EN, UL and CSA guidelines.
| Manufacturer Part Number | GAX7200 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85389099 |
| Barcode | 8013975177983 |
