GAX7150AN - EXTENSION 150MM DIRECT/DOOR COUP
MPN: GAX7150AN
Special Price
£7.07
£5.89
Regular Price
£10.09
Why Choose the GAX7150AN?

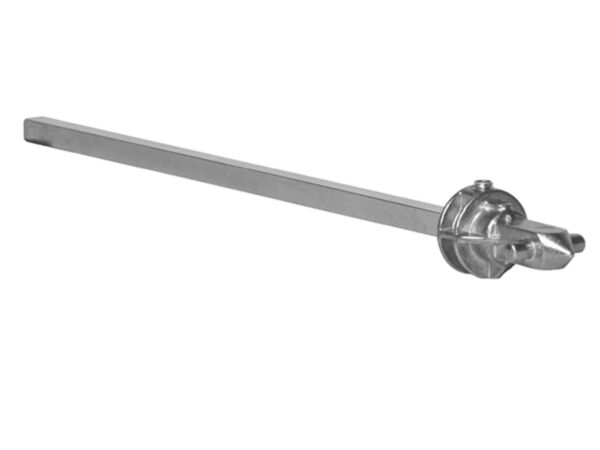

Lovato GAX7150AN is a shaft extension accessory designed for precise door‑coupling applications. At 150 mm long with a 7 mm (0.3”) square section, it interfaces cleanly with Lovato door‑coupling handles GAX66N and GAX66NB, as well as the GAX6001 mechanical coupling system. Built to integrate within control assemblies, it helps achieve reliable handle‑to‑device coupling across the required distance.
Engineered as an accessory for GA030A…, GA063A…GA160A…, GE0160…GE0250 and GE0160T4…GE0250T4 ranges, this extension supports consistent actuation across your build. Conformity with IEC/EN 60947-1 and 60947-3, plus UL508, UL98 and CSA C22.2, underpins quality and safety. A Sustainability certification supports responsible specification in modern installations and procurement decisions.
Key Benefits
- 150 mm extension improves reach between handle and device.
- 7 mm (0.3”) square section ensures precise coupling.
- Compatible with GAX66N and GAX66NB door‑coupling handles.
- Works with GAX6001 mechanical coupling system.
- Accessory for GA030A… and GA063A…GA160A… device ranges.
- Supports GE0160…GE0250 and GE0160T4…GE0250T4 installations.
- Conforms to IEC/EN 60947, UL508, UL98 and CSA C22.2.
- Sustainability certification supports responsible specification.
Technical Specification
- Type of product: Accessories
- Type of accessories: Shaft extension
- Accessories for: GA030A…, GA063A…GA160A…, GE0160…GE0250, GE0160T4…GE0250T4
What’s Included
- GAX7150AN shaft extension, 150 mm length, 7 mm square section
- Supplied in original Lovato packaging
Applications
- Extending linkage for Lovato door‑coupling handles GAX66N and GAX66NB
- Mechanical coupling with Lovato GAX6001 in panel assemblies
- Use with GA030A… to GA160A… device ranges requiring shaft extension
- GE0160…GE0250 and GE0160T4…GE0250T4 installations needing 150 mm reach
Frequently Asked Questions
Is GAX7150AN compatible with GAX66N and GAX66NB handles?
Yes, the GAX7150AN shaft extension is designed for GAX66N and GAX66NB door‑coupling handles.
Can I use this with the GAX6001 mechanical coupling system?
Yes, it is specified for use with the GAX6001 mechanical coupling system.
What are the dimensions of the shaft section and length?
It has a 7 mm (0.3”) square section and a length of 150 mm.
Which device ranges is this accessory intended for?
It is an accessory for GA030A…, GA063A…GA160A…, GE0160…GE0250 and GE0160T4…GE0250T4.
What standards does this product conform to?
It conforms to IEC/EN 60947-1, IEC/EN 60947-3, UL508, UL98 and CSA C22.2.
Safety note: Installation should be performed by qualified personnel. Isolate power before assembly and follow applicable IEC/EN, UL and CSA standards and manufacturer guidance.
| Manufacturer Part Number | GAX7150AN |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85389099 |
| Barcode | 8013975231579 |
