GAX7150 - EXTENSION 150MM DIRECT/DOOR COUP
MPN: GAX7150
Special Price
£4.13
£3.44
Regular Price
£5.89
Why Choose the GAX7150?

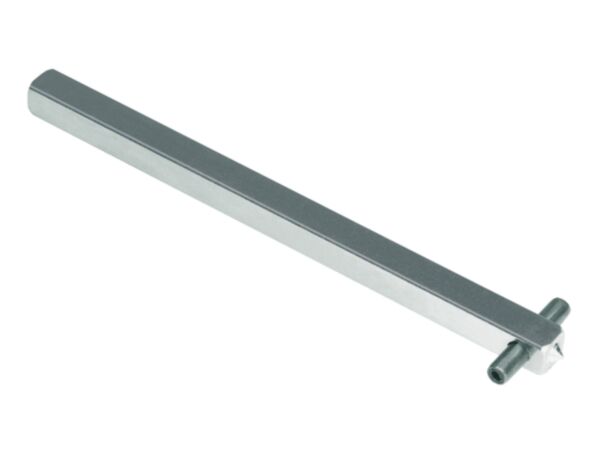

Lovato’s GAX7150 is a shaft extension accessory for door-coupling handles GAX61–GAX64, GAX61B–GAX64B and GAX67B, plus mechanical interlocks GAX5000 and GAX5001 and the GAX6000 coupling system. With a 150mm length and □5mm (0.2”) square profile, it delivers the specified reach and drive geometry required to connect compatible components within the assembly.
As an accessory for GA016A…GA160A… ranges, the Lovato GAX7150 conforms to IEC/EN 60947-1 and IEC/EN 60947-3, UL508, UL98 and CSA C22.2 for assured compliance. Backed by Lovato manufacturing and listed Sustainability certification, it supports straightforward integration with the specified handles, interlocks and coupling system in compliant control and switching assemblies.
Key Benefits
- 150mm extension provides the specified reach for door-coupling assemblies.
- □5mm (0.2”) square shaft profile matches compatible drive interfaces.
- Compatible with GAX61–GAX64 and GAX61B–GAX64B door-coupling handles.
- Works with mechanical interlocks GAX5000 and GAX5001 in specified setups.
- Interfaces with GAX6000 coupling system for correct component linkage.
- Accessory for GA016A…GA160A… product ranges as specified.
- Conforms to IEC/EN 60947, UL508, UL98 and CSA C22.2 standards.
- Lovato original component for consistent integration with listed parts.
Technical Specification
- Type of product: Accessories
- Type of accessories: Shaft extension
- Accessories for: GA016A…GA160A…
What’s Included
- GAX7150 shaft extension, 150mm, □5mm
- Manufacturer packaging
Applications
- Extending the drive link for specified door-coupling handle assemblies.
- Use with Lovato mechanical interlocks GAX5000 and GAX5001.
- Integration with the GAX6000 coupling system in compatible setups.
- Accessory within GA016A…GA160A… product ranges.
Frequently Asked Questions
Which handles is the GAX7150 compatible with?
It suits door-coupling handles GAX61–GAX64, GAX61B–GAX64B and GAX67B.
What are the key dimensions of the shaft extension?
It is 150mm long with a □5mm (0.2”) square cross-section.
Can it be used with mechanical interlocks?
Yes. It is designed for Lovato mechanical interlocks GAX5000 and GAX5001.
Does it integrate with a coupling system?
Yes, it interfaces with the Lovato GAX6000 coupling system.
What standards and certifications does it meet?
It conforms to IEC/EN 60947-1 and 60947-3, UL508, UL98, CSA C22.2, and lists Sustainability certification.
Safety note: Install and commission by qualified personnel only. Isolate power and follow applicable standards and manufacturer guidance before working on equipment.
| Manufacturer Part Number | GAX7150 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85389099 |
| Barcode | 8013975177976 |
