GAX7090 - EXTENSION 90MM DIRECT/DOOR COUP

Why Choose the GAX7090?

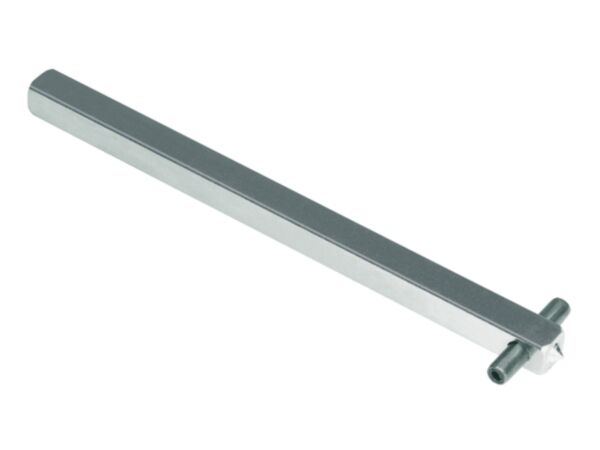

Lovato GAX7090 is a shaft extension accessory engineered for door‑coupling handle and interlock assemblies. At 90 mm long with a □5 mm (0.2”) square, it provides reliable engagement between the handle and switching linkage. Compatible with GAX61–GAX64, GAX61B–GAX64B, and GAX67B handles, it also suits mechanical interlocks GAX5000 and GAX5001, as well as the GAX6000 coupling system.

Designed as an accessory for GA016A…GA160A… assemblies, this Lovato shaft extension supports compliance with IEC/EN 60947-1 and 60947-3, UL508, UL98 and CSA C22.2. Built for straightforward specification and replacement, it helps ensure correct coupling distances across compatible switchgear. Choose GAX7090 when you need a precise 90 mm extension with a □5 mm profile to match Lovato door-coupling handle mechanisms.

Key Benefits

• 90 mm length ensures correct reach in door-coupling handle assemblies.
• □5 mm (0.2”) square provides precise, secure mechanical engagement.
• Compatible with GAX61–GAX64 and GAX61B–GAX64B handle ranges.
• Works with GAX67B handle and GAX6000 coupling system.
• Integrates with mechanical interlocks GAX5000 and GAX5001.
• Accessories for GA016A…GA160A… assemblies for straightforward selection.
• Conforms to IEC/EN, UL and CSA standards for dependable compliance.

Technical Specification

• Type of product: Accessories
• Type of accessories: Shaft extension
• Accessories for: GA016A…GA160A…

What’s Included

• GAX7090 shaft extension, 90 mm, □5 mm
• Manufacturer packaging

Applications

• Door-coupling handle assemblies using GAX61–GAX64 and GAX61B–GAX64B
• Panels employing GAX67B handle configurations
• Installations with mechanical interlocks GAX5000 and GAX5001
• Coupling arrangements built around system GAX6000
• Controlgear within GA016A…GA160A… accessory range

Safety note: Install and adjust only by qualified personnel. Isolate power before working on handle, interlock, or coupling assemblies and follow the manufacturer’s documentation.
