GAX631B - MANIGLIA NERA SEL.SPORG.LUCCH.ON IP65
MPN: GAX631B
Special Price
£11.33
£9.44
Regular Price
£16.19
Why Choose the GAX631B?

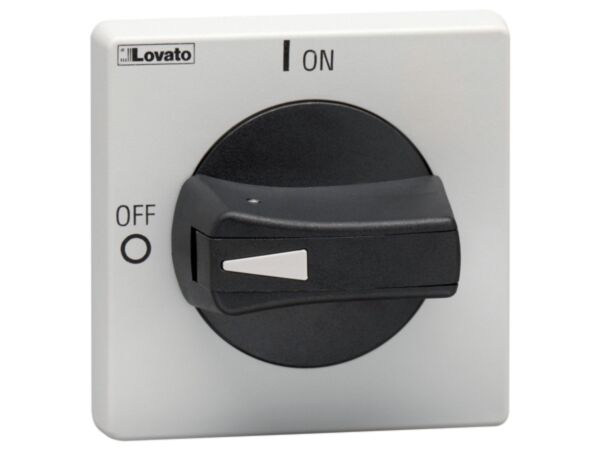

The Lovato GAX631B door-coupling handle accessory delivers secure, padlockable operation for compatible GA…A…, GA063SA…, GA016C… GA040C..., GA063SC, GA040D and GD… devices. This black, rotating handle features ring fixing and a protruding selector padlockable in the ON position per UNI 9490 and UNI EN 12845 for firefighting systems, supporting compliant isolation and clear status indication in demanding applications.
Built for reliability, the GAX631B is rated IEC IP65 and UL Type 4X, with conformity to IEC/EN 60947-1 and 60947-3, UL508, UL98 and CSA C22.2. Its ring-mount design simplifies panel integration while maintaining robust performance. As a Lovato accessory, it aligns with rigorous industrial standards and sustainability certification, offering durable operation where padlockable ON control and clear selector positioning are required.
Key Benefits
- Padlockable ON position per UNI 9490 and UNI EN 12845.
- IEC IP65 and UL Type 4X protection for demanding environments.
- Rotating handle with ring fixing for secure installation.
- Protruding selector aids clear status and reliable locking.
- Compatible with GA…A…, GA063SA…, GA016C… GA040C..., GA063SC, GA040D, GD….
- Conforms to IEC/EN 60947-1/60947-3, UL508, UL98, CSA C22.2.
- Black padlockable handle design suited to industrial panels.
Technical Specification
- Type of product: Accessories
- Type of installation: Ring, protruding selector padlockable in ON
- Type of accessories: Door coupling padlockable handles - Black
- Accessories for: GA…A…, GA063SA…, GA016C… GA040C..., GA063SC, GA040D, GD…
What’s Included
- Lovato GAX631B door-coupling handle
- Basic installation and safety information
Applications
- Firefighting systems requiring padlockable ON control per UNI 9490 and UNI EN 12845
- Electrical enclosures needing IEC IP65/UL Type 4X handle protection
- Panels using compatible Lovato GA… and GD… series devices
- Industrial isolation and control with a rotating, padlockable handle
Frequently Asked Questions
Which devices is the GAX631B compatible with?
It is compatible with GA…A…, GA063SA…, GA016C… GA040C..., GA063SC, GA040D and GD… devices.
Can the handle be padlocked, and in which position?
Yes. The protruding selector is padlockable in the ON position per UNI 9490 and UNI EN 12845.
What is the ingress protection rating?
It is rated IEC IP65 and UL Type 4X.
What are the key standards of conformity?
It conforms to IEC/EN 60947-1 and 60947-3, UL508, UL98 and CSA C22.2.
What type of installation and operation does it provide?
It uses ring fixing with a rotating handle and a protruding selector.
Safety note: Install and operate only by qualified personnel. Always isolate power and follow applicable standards and the manufacturer’s instructions during installation and maintenance.
| Manufacturer Part Number | GAX631B |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975183106 |
