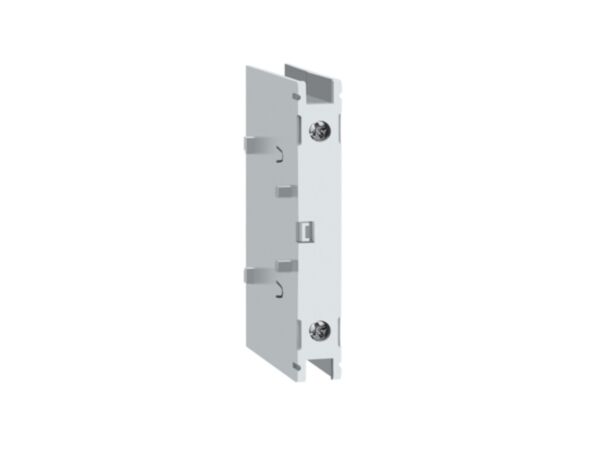

GAX31A - NEUTRAL 16-40A DIRECT/DOOR COUPLING
MPN: GAX31A
Special Price
£10.45
£8.71
Regular Price
£14.93
Why Choose the GAX31A?
The Lovato GAX31A is a neutral/earth terminal accessory designed for the GA016A–GA040A, GA063SA and GA040D ranges. This 1‑pole, AC accessory (product type designation GAX3) supports an IEC conventional free air thermal current Ith of 63 A and a rated insulation voltage Ui of 1000 V. Its IP20 frontal protection and 0.75 to 16 mm² conductor capacity simplify safe, tidy terminations in panels.
Engineered for dependable integration, the GAX31A weighs just 40 g and accommodates operating temperatures from −25 to +55 °C (storage −40 to +70 °C) at altitudes up to 3000 m. It meets IEC/EN 60947-1, 60947-3 and 60947-5-1, plus UL508, UL98, CSA C22.2 and UL60947-4-1. Pollution degree 3 construction provides robust performance for industrial control and switchgear assemblies.
Key Benefits
- Compatible with GA016A–GA040A, GA063SA and GA040D devices.
- 1‑pole neutral/earth terminal for straightforward AC connections.
- 63 A Ith and 1000 V Ui for demanding applications.
- Accepts 0.75 to 16 mm² conductors for flexible wiring.
- IP20 frontal protection enhances user safety in panels.
- Operates from −25 to +55 °C; storage −40 to +70 °C.
- Conforms to IEC/EN and UL/CSA standards for assured compliance.
Technical Specification
- Product type designation: GAX3
- Number of poles: 1
- Operating voltage type: AC
- Ith (IEC): 63 A
- Rated insulation voltage Ui (IEC/EN): 1000 V
- Weight: 40 g
- Conductor section (IEC): 0.75 to 16 mm²
- Operating temperature: -25 to +55 °C
- Storage temperature: -40 to +70 °C
- Max altitude: 3000 m
- IP degree (frontal): IP20
- Pollution degree: 3
What’s Included
- Lovato GAX31A neutral/earth terminal
- Manufacturer datasheet (PDF)
- Basic installation and safety information
Applications
- Neutral or earth termination within panels using GA016A–GA040A
- Integration with GA063SA and GA040D device assemblies
- AC distribution and control boards requiring a 1‑pole neutral terminal
- Industrial cabinets where IP20 frontal protection is sufficient
Frequently Asked Questions
Which devices is the Lovato GAX31A compatible with?
It is for GA016A–GA040A, GA063SA and GA040D ranges.
What are the key electrical ratings of the GAX31A?
It is 1‑pole, AC, with Ith 63 A and Ui 1000 V.
What conductor sizes does this terminal accept?
It accepts conductors from 0.75 to 16 mm².
What environmental limits does it support?
Operating −25 to +55 °C, storage −40 to +70 °C, altitude up to 3000 m.
Which standards does the GAX31A conform to?
IEC/EN 60947-1/-3/-5-1, UL508, UL98, CSA C22.2 and UL60947-4-1.
Safety note: Install and commission only by qualified personnel. Isolate all power before work, and use the terminal strictly within the specified ratings and environmental conditions.
| Manufacturer Part Number | GAX31A |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975178003 |
